4.8.5

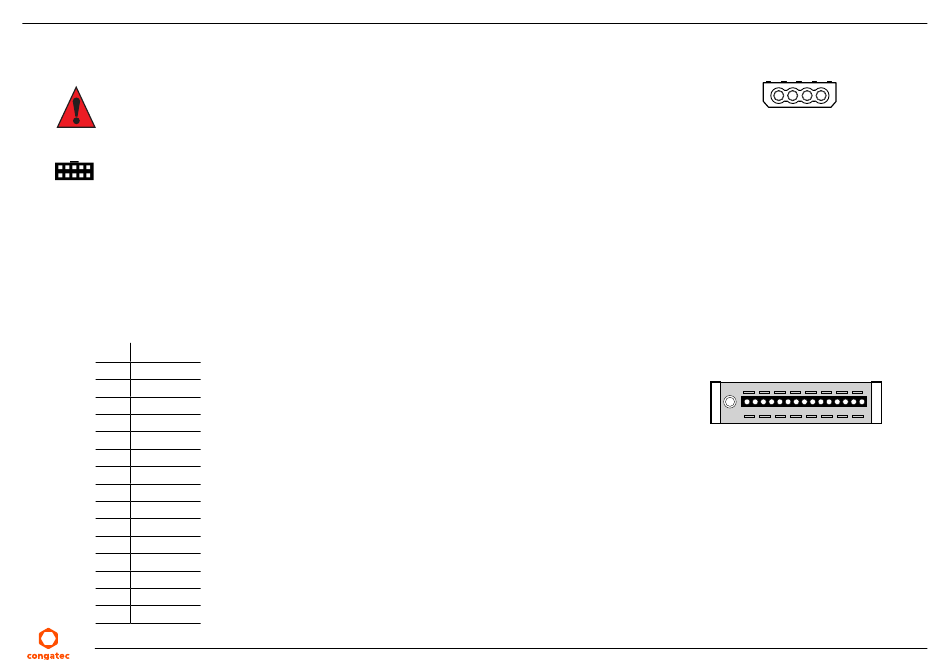

Disk Drive Power Connector

The conga-TEVAL3/COMe 3.1 provides connector X25, a 4-pin connector for powering disk drives.
Caution
+12V is protected by a 1.5A fuse and +5V is protected by a 2A fuse. Fuses are also shared with SATA power connector X24.
Connector Type
X25: 4-pin "MOLEX" power male connector
4.8.6

SATA Power

The conga-TEVAL3/COMe 3.1 provides a standard 15-pin SATA power connector (X24). This connector supplies 3.3 V, 5 V and 12 V protected
by a polyfuse 2A, 2A, 1.5A shared with X25.
Table 32 X24 - SATA Power Pinout Description
Pin Signal
1 3.3 V
2 3.3 V
3 3.3 V
4 GND
5 GND
6 GND
7 5 V
8 5 V
9 5 V
10 GND
11 GND
12 GND
13 12 V
14 12 V
15 12 V
Copyright © 2025 congatec GmbH TEVA31_m001
X25
X24
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
