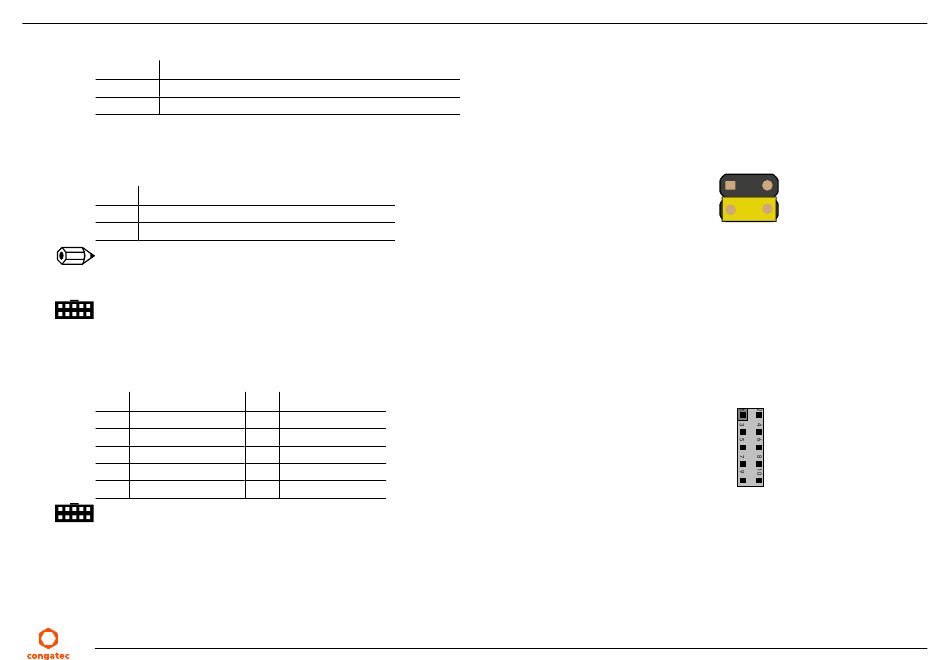

Table 51 SW2.1 - SER1/CAN Selection
Setting Description
OFF Module's SER1 to feature connector X56/X75 (default)
ON Module's SER1 to CAN connector X59
Table 52 JP7 - CAN Bus Termination/Filter
Pin Description
1 - 2 Enable 120 ohm CAN bus termination
3- 4 Enable CAN bus filter
Note
The CAN Bus interface is supported only if the module provides it.
Connector Type
X59: 4-pin, 1.25 mm pitch PicoBlade header
Table 53 X75 - Module Serial Port 1 Pinout Description
Pin Signals Pin
1 N.C 2
3 SER1_RX 4
5 SER1_TX 6
7 N.C 8
9 GND 10
Connector Type
X75: 2.54 mm, 2 x 5-pin receptacle
