Display Interfaces

The conga-TEVAL3/COMe 3.1 provides the following display interfaces:

4.7.1

The conga-TEVAL3/COMe 3.1 provides a VGA interface on standard 15-pin DSUB connector X45.

Connector Type

X45: 15-pin, high density DSUB male

4.7.2

DP++

The conga-TEVAL3/COMe 3.1 provides one DP++ interface on the connector X37. This interface is routed to the module's DDI3 signals.

You can connect a DP++ to HDMI adapter to the DP++ connector if your module supports it.

Connector Type

X37: Standard DP

4.7.3

The conga-TEVAL3/COMe 3.1 connects the module's LVDS/eDP interface to:

• eDP panel on connector X39

• LVDS panel on connector X38

Use DIP SW8.1 to select the option for eDP or LVDS panel.

Table 21

SW8.1 - eDP/LVDS Selection

Setting

Configuration

eDP selection

OFF

LVDS selection (default)

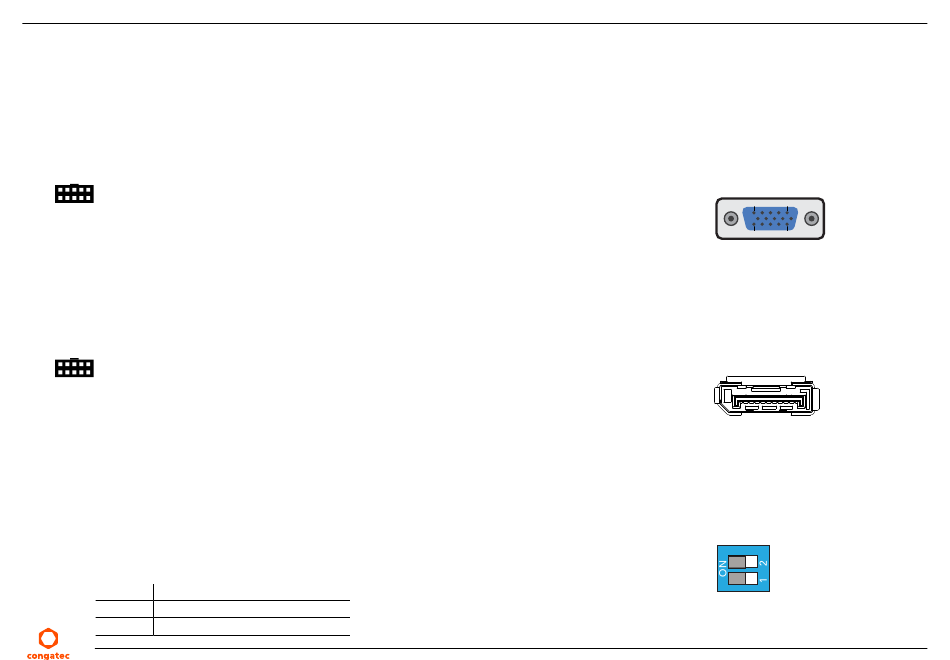

TEVA31_m001

X45

X37

SW8

33/62
