Summary of Contents for Congatec COM Express conga-B915

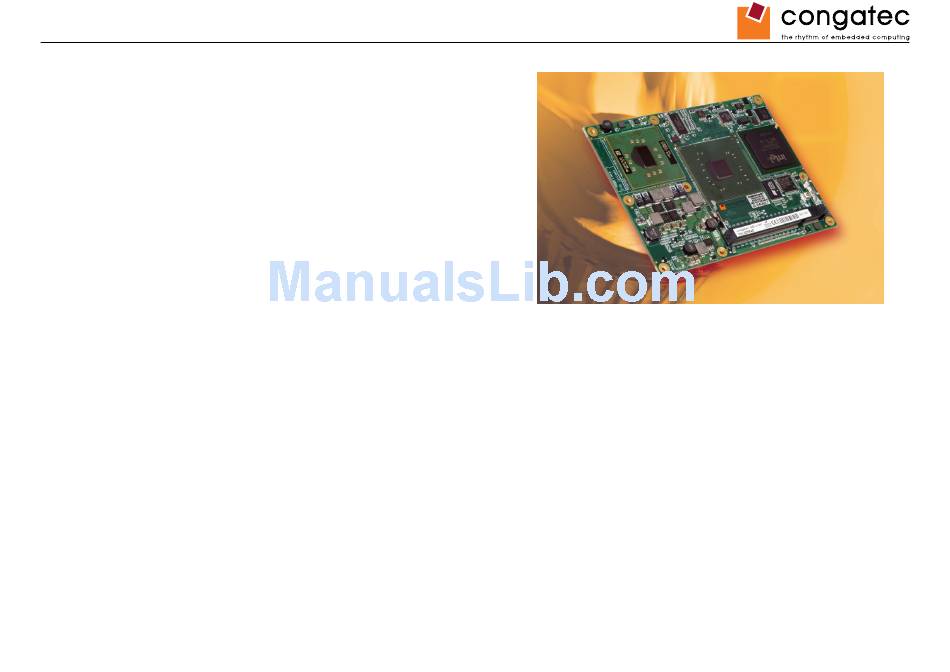

- Page 1 COM Express™ conga-B915 Intel Celeron M processors with an Intel 910GMLE or 915GME chipset ® ® User’s Guide Revision 1.0...
-
Page 2: Revision History
Official release. Corrected section 4.1.11 ‘Power Control’ by changing SUS_S5#/PS_ON to SUS_S3#/PS_ON. Corrected SUS_S3# and SUS_S5# pin descriptions in Table 15 ‘Power and System Management Signal Descriptions’. Added pin numbers to sections 7, “Signal Descriptions and Pinout Tables.” Updated section 9 “BIOS Setup Description”. Copyright © 2008 congatec AG B915m10 2/92... -
Page 3: Intended Audience
In no event shall congatec AG be liable for any incidental, consequential, special, or exemplary damages, whether based on tort, contract or otherwise, arising out of or in connection with this user’s guide or any other information... - Page 4 Thermal Design Power PCIe PCI Express SATA Serial ATA PATA Parallel ATA T.O.M. Top of memory = max. DRAM installed High Definition Audio Interface N.C. Not connected N.A. Not available To be determined Copyright © 2008 congatec AG B915m10 4/92...
-
Page 5: Copyright Notice
Copyright Notice Copyright © 2008, congatec AG. All rights reserved. All text, pictures and graphics are protected by copyrights. No copying is permitted without written permission from congatec AG. Some of the information found in this user’s guide has been extracted WITH EXPRESS PERMISSION from the following COPYRIGHTED American Megatrends, Inc documents: •... - Page 6 (c) arising from course of performance, course of dealing, or usage of trade. congatec AG shall in no event be liable to the end user for collateral or consequential damages of any kind. congatec AG shall not otherwise be liable for loss, damage or expense directly or indirectly arising from the use of the product or from any other cause.
-
Page 7: Technical Support
AG technicians and engineers are committed to providing the best possible technical support for our customers so that our products can be easily used and implemented. We request that you first visit our website at www.congatec.com for the latest documentation, utilities and drivers, which have been made available to assist you. - Page 8 ® all of these options. Below you will find an order table showing the different configurations that are currently offered by congatec AG. Check the table for the Part no./Order no. that applies to your product. This will tell you what options described in this user’s guide are available on your particular module.
-
Page 9: Table Of Contents
Suspend to Ram ..............29 1.5.3 Intel Celeron M 1.5GHz 1MB L2 cache ........17 ® congatec Battery Management Interface ......... 29 Supply Voltage Battery Power ..........17 conga Tech Notes ..............30 1.6.1 CMOS Battery Power Consumption ........18 Environmental Specifications ........... - Page 10 Watchdog Configuration Submenu .......... 83 Boot Setup ................84 9.5.1 Boot Device Priority ..............84 9.5.2 Boot Settings Configuration ............. 85 Security Setup ................86 9.6.1 Security Settings ..............86 9.6.2 Hard Disk Security ..............87 Copyright © 2008 congatec AG B915m10 10/92...
- Page 11 Table 30 IRQ Lines in APIC mode ............60 Table 31 PCI Configuration Space Map ..........61 Table 32 PCI Interrupt Routing Map ............62 Table 33 PCI Interrupt Routing Map (continued) ........62 Copyright © 2008 congatec AG B915m10 11/92...
-
Page 12: Specifications
8x USB 2.0 (EHCI) BIOS Based on AMIBIOS8 ® 1MByte Flash BIOS with congatec Embedded BIOS features Power Management ACPI 2.0 compliant with battery support. Also supports Suspend to RAM (S3). Note Some of the features mentioned in the above Feature Summary are optional. Check the article number of your module and compare it to the option information list on page 8 of this user’s guide to determine what options are available on your particular module. -
Page 13: Supported Operating Systems
Height approximately 18 or 21mm (including heatspreader) depending on the carrier board connector that is used. If the 5mm (height) carrier board connector is used then approximate overall height is 18mm. If the 8mm (height) carrier board connector is used then approximate overall height is 21mm. Copyright © 2008 congatec AG B915m10 13/92... -
Page 14: Supply Voltage Standard Power
The input voltages shall rise from 10% of nominal to 90% of nominal at a minimum rise time of 250V/s. The smooth turn-on requires that, during the 10% to 90% portion of the rise time, the slope of the turn-on waveform must be positive. Copyright © 2008 congatec AG B915m10... -
Page 15: Power Consumption
Suspend to RAM (requires setup node “Suspend Mode” in BIOS to be configured to S3 STR (suspend to RAM)). Supply power for S3 mode is 5V. Note A software tool was used to stress the CPU to 100% workload. Copyright © 2008 congatec AG B915m10 15/92... -
Page 16: Intel ® Celeron M 600Mhz 512K L2 Cache
Desktop Idle 100% workload Standby Suspend to Ram (S3) 5V Input Power Power consumption (measured in Amperes/Watts) 0.9 A/10.8 W (12V) 1.1 A/13.2 W (12V) 0.7 A/8.4 W (12V) 0.1 A/0.5 W (5V) Copyright © 2008 congatec AG B915m10 16/92... -
Page 17: Intel ® Celeron M 1.0Ghz 512K L2 Cache
12V power. Power consumption results will vary depending on the workload of other components such as graphics engine, memory, etc. Supply Voltage Battery Power • 2.0V-3.6V DC • Typical 3V DC Copyright © 2008 congatec AG B915m10 17/92... -
Page 18: Cmos Battery Power Consumption
If for some reason it is not possible to use the appropriate congatec module heatspreader, then it is the responsibility of the operator to ensure that all components found on the module operate within the component manufacturer’s specified temperature range. -
Page 19: Block Diagram
82910GMLE ® Intel® Celeron M Intel 82801FBM 4x x1 PCIe Intel 82915GME ® Memory Bus (400MHz) Monitoring Note Circuitry DDR2-SODIMM PCI Express Graphics only Socket available on Intel 82915GME ® equipped variants. Control Copyright © 2008 congatec AG B915m10 19/92... -
Page 20: Heatspreader
The combination of the two threads may be staggered, which could lead to stripping or cross-threading of the threads in either the standoffs of the heatspreader or carrier board. Copyright © 2008 congatec AG B915m10... -
Page 21: Heatspreader Dimensions
Heatspreader Dimensions Bottom side view Note All measurements are in millimeters. Torque specification for heatspreader screws is 0.5 Nm. Copyright © 2008 congatec AG B915m10 21/92... -
Page 22: Connector Subsystems Rows A, B, C, D
AC’97/HDA/Digital Audio I/F PCI Bus Gigabit Ethernet IDE 1x (Primary) LPC Bus I²C Bus 400 kHz VGA (CRT) LVDS Power Control Power Management top view In this view the connectors are seen “through” the module. Copyright © 2008 congatec AG B915m10 22/92... -
Page 23: Primary Connector Rows A And B
PCI Express link. The Ethernet interface consists of 4 pairs of low voltage differential pair signals designated from GBE0_MD0± to GBE0_MD3± plus control signals for link activity indicators. These signals can be used to connect to a 10/100/1000 BaseT RJ45 connector with integrated or external isolation magnetics on the carrier board. Copyright © 2008 congatec AG B915m10 23/92... -
Page 24: Lpc Bus
Graphics Media Accelerator 900 engine, which is incorporated into the Intel ® ® 82910GMLE/82915GME chipset found on the conga-B915. 4.1.10 The Intel 82910GMLE/82915GME chipset, found on the conga-B915, offers an integrated dual channel LVDS interface that is connected to ® Display Pipe B. Copyright © 2008 congatec AG B915m10 24/92... -
Page 25: Power Control
For more information about this issue visit www.formfactors.org and view page 25 figure 7 of the document “ATX12V Power Supply Design Guide V2.2”. Copyright © 2008 congatec AG B915m10... -
Page 26: Power Management
The implementation of the PCI bus complies with PCI specification Rev. 2.3 and provides a 32bit parallel PCI bus that is capable of operating at 33MHz. 4.2.4 IDE (PATA) The IDE host adapter is capable of UDMA-100 operation. Only the Primary IDE channel is supported. Copyright © 2008 congatec AG B915m10 26/92... -
Page 27: Additional Features
The conga-B915 is equipped with an ATMEL Atmega168 microcontroller. This onboard microcontroller plays an important role for most of the congatec BIOS features. It fully isolates some of the embedded features such as system monitoring or the I²C bus from the x86 core architecture, which results in higher embedded feature performance and more reliability, even when the x86 processor is in a low power mode. -
Page 28: Simplified Overview Of Bios Setup Data Backup
= standard AMI BIOS processes The above diagram provides an overview of how the BIOS Setup Data is backed up on congatec modules. OEM default values mentioned above refer to customer specific CMOS settings created using the congatec System Utility tool. -
Page 29: Security Features
Once verified the F10 Save and Exit function continues to perform some minor processing tasks and finally reaches an automatic reset point, which instructs the module to reboot. After the Automatic Reset has been triggered the congatec module can be powered off and if need be removed from the baseboard without losing the new CMOS settings. -
Page 30: Conga Tech Notes
Native mode allows the SATA and PATA controllers to operate as true PCI devices and therefore do not need dedicated legacy resources, which means it can be configured anywhere within the system. When either the SATA or PATA controller runs in native mode it only requires one PCI Copyright © 2008 congatec AG B915m10... -
Page 31: Intel ® Processor Features
Running in native mode frees up interrupt resources (IRQs 14 and 15) and decreases the chance that there may be a shortage of interrupts when installing devices. Note If your operating system supports native mode then congatec AG recommends you enable it. Intel Processor Features ®... -
Page 32: Processor Performance Control
. Also visit Microsoft’s website and search for the document called “Windows Native Processor Performance Control”. The congatec BIOS allows you to limit the maximum processor frequency. This can be useful if the maximum performance is not required or if the maximum processor performance state dissipates too much power and heat. -
Page 33: Thermal Management
Use the “critical trip point” setup node in the BIOS setup program to determine the temperature threshold that the operating system will use to shut down the system. Copyright © 2008 congatec AG B915m10... -
Page 34: Acpi Suspend Modes And Resume Events
S1 (POS= Power On Suspend) state and S3 (STR= Suspend to RAM). For more information about S3 wake events see section 9.4.1 “ACPI Configuration Submenu”. S4 (Suspend to Disk) is not supported by the BIOS (S4_BIOS) but it is supported by the following operating systems (S4_OS= Hibernate): • Win2K • WinXP Copyright © 2008 congatec AG B915m10 34/92... - Page 35 When using Windows XP, Standby mode is either an S1 state or S3 state depending on what has been selected in the ACPI Configuration Menu in the BIOS setup program. For more information about this see section 9.4.1 of this document. Copyright © 2008 congatec AG B915m10...
-
Page 36: Usb 2.0 Ehci Host Controller Support
UHCI #3 UHCI #2 UHCI #1 UHCI #0 (D29:F3) (D29:F2) (D29:F1) (D29:F0) Port 7 Port 6 Port 5 Port 4 Port 3 Port 2 Port 1 Port 0 Debug Enhanced Host Controller Logic Port Copyright © 2008 congatec AG B915m10 36/92... -
Page 37: Signal Descriptions And Pinout Tables
The Signal Description tables do not list internal pull-ups or pull-downs implemented by the chip vendors, only pull-ups or pull-downs implemented by congatec are listed. For information about the internal pull-ups or pull-downs implemented by the chip vendors, refer to the respective chip’s datasheet. -
Page 38: A-B Connector Signal Descriptions
High Definition Audio. ® Note Some signals have special functionality during the reset process. They may bootstrap some basic important functions of the module. For more information refer to section 7.5 of this user’s guide. Copyright © 2008 congatec AG B915m10 38/92... -
Page 39: Table 4 Gigabit Ethernet Signal Descriptions
ATA (parallel and serial) or SAS activity indicator, active low. OC 3.3V ATA_ACT# is a boot strap signal (see note below) Note Some signals have special functionality during the reset process. They may bootstrap some basic important functions of the module. For more Copyright © 2008 congatec AG B915m10 39/92... -
Page 40: Table 6 Pci Express Signal Descriptions (General Purpose)
Table 7 ExpressCard Support Pins Descriptions Signal Pin # Description PU/PD Comment EXCD0_CPPE# ExpressCard capable card request. I 3.3V PU 8k2 3.3V EXCD1_CPPE# EXCD0_PERST# ExpressCard Reset O 3.3V PU 10k 3.3V EXCD1_PERST# Copyright © 2008 congatec AG B915m10 40/92... -
Page 41: Table 8 Lpc Signal Descriptions
Do not pull this line high on the carrier board. be present on the module. An open drain driver from a USB current 3.3VSB 3.3VSB monitor on the carrier board may drive this line low. Copyright © 2008 congatec AG B915m10 41/92... -
Page 42: Table 10 Crt Signal Descriptions
LVDS panel backlight brightness control O 3.3V LVDS_I2C_CK DDC lines used for flat panel detection and control. O 3.3V PU 2k2 3.3V LVDS_I2C_DAT DDC lines used for flat panel detection and control. I/O 3.3V PU 2k2 3.3V Copyright © 2008 congatec AG B915m10 42/92... -
Page 43: Table 12 Tv-Out Signal Descriptions
PC-AT. Pulled low on the module. Note Some signals have special functionality during the reset process. They may bootstrap some basic important functions of the module. For more information refer to section 7.5 of this user’s guide. Copyright © 2008 congatec AG B915m10 43/92... -
Page 44: Table 14 General Purpose I/O Signal Descriptions
System Management Bus Alert – active low input can be used to generate an SMI# (System I 3.3VSB PU 10k 3.3VSB Management Interrupt) or to wake the system. Power sourced through 5V standby rail and main power rails. Copyright © 2008 congatec AG B915m10 44/92... -
Page 45: A-B Connector Pinout
WAKE1# GBE0_MDI0+ SMB_CK PCIE_TX0+ PCIE_RX0+ GBE0_CTREF (*) SMB_DAT PCIE_TX0- PCIE_RX0- SUS_S3# SMB_ALERT# GND (FIXED) GND (FIXED) SATA0_TX+ SATA1_TX+ LVDS_A0+ LVDS_B0+ SATA0_TX- SATA1_TX- LVDS_A0- LVDS_B0- SUS_S4# (*) SUS_STAT# LVDS_A1+ LVDS_B1+ SATA0_RX+ SATA1_RX+ LVDS_A1- LVDS_B1- Copyright © 2008 congatec AG B915m10 45/92... - Page 46 B110 GND (FIXED) Note The signals marked with an asterisk symbol (*) are not supported on the conga-B915. PCIE_TX3± and PCIE_RX3± are used for the onboard Gigabit Ethernet and therefore are not available externally. Copyright © 2008 congatec AG B915m10 46/92...
-
Page 47: C-D Connector Signal Descriptions
PCI Power Management Event: PCI peripherals drive PME# to wake system from low-power states S1–S5. I 3.3VSB PCI_CLKRUN# D48 Bidirectional pin used to support PCI clock run protocol for mobile systems. I/O 3.3V PU 8k2 3.3V Copyright © 2008 congatec AG B915m10 47/92... -
Page 48: Table 19 Ide Signal Descriptions
I 3.3V PD 10k cable used for legacy IDE modes. Low indicates that an 80-pin cable with interleaved grounds is used. Such a cable is required for Ultra-DMA 66, 100 and 133 modes. Copyright © 2008 congatec AG B915m10 48/92... -
Page 49: Table 20 Pci Express Signal Descriptions (X16 Graphics)
PCIE_RX[16-31] + and -. PEG_RX2+ PEG_RX2- PEG_RX3+ PEG_RX3- PEG_RX4+ PEG_RX4- PEG_RX5+ PEG_RX5- PEG_RX6+ PEG_RX6- PEG_RX7+ PEG_RX7- PEG_RX8+ PEG_RX8- PEG_RX9+ PEG_RX9- PEG_RX10+ PEG_RX10- PEG_RX11+ PEG_RX11- PEG_RX12+ PEG_RX12- PEG_RX13+ PEG_RX13- PEG_RX14+ PEG_RX14- PEG_RX15+ C101 PEG_RX15- C102 Copyright © 2008 congatec AG B915m10 49/92... - Page 50 This additional link cannot be linked together with the other PCI Express links found on the conga-B915. Note Some signals have special functionality during the reset process. They may bootstrap some basic important functions of the module. For more information refer to section 7.5 of this user’s guide. Copyright © 2008 congatec AG B915m10 50/92...
-
Page 51: Table 21 Sdvo Signal Descriptions
Note Some signals have special functionality during the reset process. They may bootstrap some basic important functions of the module. For more information refer to section 7.5 of this user’s guide. Copyright © 2008 congatec AG B915m10 51/92... -
Page 52: Table 22 Module Type Definition Signal Description
Physical Presence pin of Trusted Platform Module (TPM). Active high. TPM chip has I 3.3V Trusted Platform Module chip is optional. an internal pull-down. This signal is used to indicate Physical Presence to the TPM. Copyright © 2008 congatec AG B915m10 52/92... -
Page 53: C-D Connector Pinout
PCI_AD15 PEG_RX10+ PEG_TX10+ GND (FIXED) GND (FIXED) PEG_RX10- PEG_TX10- PCI_AD14 PCI_PAR PCI_C/BE1# PCI_SERR# PEG_RX11+ PEG_TX11+ PCI_PERR# PCI_STOP# PEG_RX11- PEG_TX11- PCI_LOCK# PCI_TRDY# GND (FIXED) GND (FIXED) PCI_DEVSEL# PCI_FRAME# PEG_RX12+ PEG_TX12+ PCI_IRDY# PCI_AD16 PEG_RX12- PEG_TX12- Copyright © 2008 congatec AG B915m10 53/92... - Page 54 C108 VCC_12V D108 VCC_12V TYPE0# PEG_LANE_RV# C109 VCC_12V D109 VCC_12V PEG_RX1+ PEG_TX1+ C110 GND (FIXED) D110 GND (FIXED) Note The signals marked with an asterisk symbol (*) are not supported on the conga-B915. Copyright © 2008 congatec AG B915m10 54/92...
-
Page 55: Boot Strap Signals
SDVO_I2C_DAT can be pulled-up (using 5.6KΩ resistor) to 2.5V in order to set up SDVO peripherals. PEG_LANE_RV# (only available on conga-B915 modules equipped with the Intel® 82915GME chipset) can be pulled low to activate lane reversal mode. Copyright © 2008 congatec AG B915m10 55/92... -
Page 56: System Resources
Note T.O.M. = Top of memory = max. DRAM installed * VGA frame buffer can be reduced to 1MB in setup. ** Only if ACPI Aware OS is set to YES in setup. Copyright © 2008 congatec AG B915m10 56/92... -
Page 57: I/O Address Assignment
See note PCI / PCI Express bus Note The BIOS assigns PCI and PCI Express I/O resources from FFF0h downwards. Non PnP/PCI/PCI Express compliant devices must not consume I/O resources in that area. Copyright © 2008 congatec AG B915m10 57/92... -
Page 58: Lpc Bus
On the conga-B915 the PCI Bus acts as the subtractive decoding agent. All I/O cycles that are not positively decoded are forwarded to the PCI Bus not the LPC Bus. Only specified I/O ranges are forwarded to the LPC Bus. In the congatec Embedded BIOS the following I/O address ranges are sent to the LPC Bus: 280 –... -
Page 59: Interrupt Request (Irq) Lines
If the ATA/IDE configuration is set to enhanced mode in BIOS setup (serial ATA and parallel ATA native mode operation), IRQ14 and 15 are free for PCI/LPC bus. In ACPI mode, IRQ9 is used for the SCI (System Control Interrupt). The SCI can be shared with a PCI interrupt line. Copyright © 2008 congatec AG B915m10 59/92... -
Page 60: Table 30 Irq Lines In Apic Mode
If the ATA/IDE configuration is set to enhanced mode in BIOS setup (serial ATA and parallel ATA native mode operation), IRQ14 and 15 are free for PCI/LPC bus. In ACPI mode, IRQ9 is used for the SCI (System Control Interrupt). The SCI can be shared with a PCI interrupt line. Copyright © 2008 congatec AG B915m10 60/92... -
Page 61: Pci Configuration Space Map
PCI Express Port 3 will be assigned bus number 3 instead of bus number 4, Port 4 will be assigned bus number 4 and the standard PCI slots will be assigned bus number 6. Furthermore, the respective PCI Express Root Port is hidden if the corresponding PCI Express Port is disabled. Copyright © 2008 congatec AG B915m10... -
Page 62: Pci Interrupt Routing Map
Interrupt used by single function PCI Express devices (INTA). Interrupt used by multifunction PCI Express devices (INTB). Interrupt used by multifunction PCI Express devices (INTC). Interrupt used by multifunction PCI Express devices (INTD). Copyright © 2008 congatec AG B915m10 62/92... -
Page 63: Pci Bus Masters
PCI devices can not be guaranteed. I²C Bus There are no onboard resources connected to the I²C bus. Address 16h is reserved for congatec Battery Management solutions. SM Bus System Management (SM) bus signals are connected to the Intel I/O Controller Hub 82801FBM (ICH6) and the SM bus is not intended to be ®... -
Page 64: Bios Setup Description
See setup node in the “BIOS Setup Description” section 9.6.1 “Security Settings”. Setup Menu and Navigation The congatec BIOS setup screen is composed of the menu bar and two main frames. The menu bar is shown below: Note Entries in the option column that are displayed in bold print indicate BIOS default values. -
Page 65: Main Setup Screen
Serial Number no option Displays the serial number of the board. BC Firmware Rev. no option Displays the revision of the congatec board controller. MAC Address no option Displays the MAC address of the onboard Ethernet controller. Boot Counter no option Displays the number of boot-ups. -
Page 66: Advanced Setup
Boot Security Power Exit ACPI Configuration PCI Configuration Graphics Configuration CPU Configuration Chipset Configuration I/O Interface Configuration Clock Configuration IDE Configuration USB Configuration Keyboard/Mouse Configuration Remote Access Configuration Hardware Health Configuration Watchdog Configuration Copyright © 2008 congatec AG B915m10 66/92... -
Page 67: Acpi Configuration Submenu
(see note below). Note In ACPI mode it is not possible for a “Watchdog ACPI Event” handler to directly restart or shutdown the OS. For this reason the congatec BIOS will do one of the following: For Shutdown: An over temperature notification is executed. - Page 68 If this option is not selected then Windows will remain at a blue-screen after a ‘Watchdog ACPI Event” that has been configured for ‘Restart’ has been generated. Below is a Windows screen-shot showing the proper configuration. Win XP/2000 Watchdog ACPI Event restart configuration Copyright © 2008 congatec AG B915m10 68/92...
-
Page 69: Pci Configuration Submenu
2nd Exclusive PCI IRQ None, [IRQs assigned manually above] The selected IRQ will only be assigned to the PIRQ line it has been set to manually. PIRQs set to AUTO will not be assigned this IRQ. Copyright © 2008 congatec AG B915m10 69/92... -
Page 70: Graphics Configuration Submenu
If set to ‘Yes’ the BIOS will first look for an EDID data set in an external EEPROM to configure the Local Flat Detect Panel. Only when no external EDID data set can be found then the data set selected under ‘Local Flat Panel Type’ will be used as the fall-back data set. Copyright © 2008 congatec AG B915m10 70/92... - Page 71 VGA 1x18 (013h) Auto detection is performed by reading an EDID data set via the video I²C bus. SVGA 1x18 (01Ah) The number in brackets specifies the congatec internal number of the respective panel data set. XGA 1x18 (006h) XGA 2x18 (007h) Note: Customized EDID™...
- Page 72 E.g. a dual view DVI configuration will automatically be restored if both DVI monitors are connected again, even if during an earlier boot only one DVI monitor had been connected and was active. Copyright © 2008 congatec AG B915m10...
-
Page 73: Cpu Configuration Submenu
SpeedStep is set to Automatic or Maximum Speed. Used when the system is battery powered. Note: Feature not available for Celeron M CPUs. This feature only visible when system is connected to a congatec compliant battery system. -
Page 74: Chipset Configuration Submenu
Amount of memory to reserve for each enabled but empty PCI Express slot. 32MB 128MB Prefetchable Memory None Amount of prefetchable memory to reserve for each enabled but empty PCI Express slot. 32MB 128MB Copyright © 2008 congatec AG B915m10 74/92... -
Page 75: I/O Interface Configuration Submenu
Parallel Port Mode Normal Specifies the parallel port mode. Bi-directional ECP&EPP EPP Version Specifies the EPP version. Parallel Port DMA DMA0 Specifies the DMA channel for parallel port in ECP mode. DMA1 DMA3 Copyright © 2008 congatec AG B915m10 75/92... -
Page 76: Sio Smsc Sch3114 Configuration
This setup menu is only available if an external SMSC SCH3114 Super I/O has been implemented on the carrier board. 9.4.7 Clock Configuration Feature Options Description Spread Spectrum Disabled Enable spread spectrum clock modulation to reduce EMI. Enabled Copyright © 2008 congatec AG B915m10 76/92... -
Page 77: Ide Configuration Submenu
Select the mechanism for detecting 80Pin ATA(PI) cable. Detection Host Note: The use of an 80-conductor ATA cable is mandatory for running UDMA66 and faster hard disk drives. The standard Device 40-conductor ATA cable cannot handle the higher speeds. Copyright © 2008 congatec AG B915m10 77/92... -
Page 78: Primary/Secondary Ide Master/Slave Submenu
ARMD, it is required that you emulate boot up from a floppy or hard disk drive. This is essentially necessary when Hard disk drive trying to boot to DOS. You can select the type of emulation used if you are booting such a device. Copyright © 2008 congatec AG B915m10 78/92... -
Page 79: Usb Configuration Submenu
Number of seconds the legacy USB support BIOS routine waits for the USB mass storage device after the start unit command. Delay 20 Sec 30 Sec 40 Sec ►USB Mass Storage sub menu Opens sub menu. Device Configuration Copyright © 2008 congatec AG B915m10 79/92... -
Page 80: Usb Mass Storage Device Configuration Submenu
Configure PS/2 mouse support. Enabled Note: PS/2 support for mouse or keyboard is only available if a Winbond W83627 Super I/O or a SMSC SCH3114 Super I/O Auto has been implemented on the carrier board. Copyright © 2008 congatec AG B915m10 80/92... -
Page 81: Remote Access Configuration Submenu
Enable or disable the serial port BIOS update feature. Disabling saves boot time. Enabled Note This setup node is only applicable if an external Super I/O has been implemented on the carrier board. Copyright © 2008 congatec AG B915m10 81/92... -
Page 82: Hardware Monitoring Submenu
Current Core A reading. +3.3VSB no option Current 3.3V standby reading. +5VSB no option Current 5V standby reading. +12Vin no option Current 12 V in reading. VRTC no option Current VRTC reading. Copyright © 2008 congatec AG B915m10 82/92... -
Page 83: Watchdog Configuration Submenu
5sec 10sec 30sec 1min 2min Timeout 2 see above Selects the timeout value for the second stage watchdog event. Timeout 3 see above Selects the timeout value for the third stage watchdog event. Copyright © 2008 congatec AG B915m10 83/92... -
Page 84: Boot Setup
Legacy Floppy be prioritized.) USB Harddisk USB CDROM USB Removable Dev. Onboard LAN External LAN PCI Mass Storage PCI SCSI Card Any PCI BEV Device Third Master Third Slave PCI RAID Local BEV ROM Copyright © 2008 congatec AG B915m10 84/92... -
Page 85: Boot Settings Configuration
Note The term ‘AC power loss’ stands for the state when the module looses the standby voltage on the ‘VCC_5V_SBY’ pins. On congatec modules, the standby voltage is continuously monitored after the system is turned off. If after 30 seconds the standby voltage is no longer detected, then this is considered an AC power loss condition. -
Page 86: Security Setup
BIOS flash ROM chip. END-Key Loads CMOS Defaults If set to Yes, the user can force the loading of CMOS defaults by pressing the END key during POST. Copyright © 2008 congatec AG B915m10 86/92... -
Page 87: Hard Disk Security
Set or clear the master password for the hard disk. HDD Master Password Note: This option will be shaded if the hard drive does support the Security Mode Feature set but user failed to unlock the drive during BIOS POST. Copyright © 2008 congatec AG B915m10 87/92... -
Page 88: Power Setup
Exit setup without saving any changes made in the BIOS setup program. Discard Changes Discard changes without exiting setup. The option values presented when the computer was turned on are used. Load CMOS Defaults Load the CMOS defaults of all the setup options. Copyright © 2008 congatec AG B915m10 88/92... -
Page 89: Additional Bios Features
The BIOS displays a message during POST and on the main setup screen identifying the BIOS project name and a revision code. The initial production BIOS is identified as B915R1xx, where B915 is the congatec internal project name, R is the identifier for a BIOS ROM file, 1 is the so called feature number and xx is the major and minor revision number. -
Page 90: Bios Recovery Via Serial Port
Serial Port and Console Redirection Serial Redirection allows video and keyboard redirection via a standard RS-232 serial port. For more information about “Serial Port and Console Redirection” refer to application note AN2_Remote_Control.pdf, which can be found on the congatec AG website at www.congatec.com. Note The above mentioned feature is only applicable if an external Super I/O has been implemented on the carrier board. -
Page 91: Hard Disk Security Features
BIOS disables the ATA security features at the end of POST to prevent their misuse. Without this protection it would be possible for viruses or malicious programs to set a password on a drive thereby blocking the user from accessing the data. Copyright © 2008 congatec AG B915m10... -
Page 92: Industry Specifications
Industry Specifications The list below provides links to industry specifications that apply to congatec AG modules. Specification Link Audio Codec ‘97 Component Specification, Version 2.3 (AC ’97) http://www.intel.com/design/chipsets/audio/ Low Pin Count Interface Specification, Revision 1.0 (LPC) http://developer.intel.com/design/chipsets/industry/lpc.htm Universal Serial Bus (USB) Specification, Revision 2.0 http://www.usb.org/home...
