Com express type 6 revision 3.1 evaluation carrier board

4.7.3.6

Flat Panel Configuration Data

The flat panel configuration data (EPI extended EDID™ 1.3 file) for most common displays is included in the congatec COM Express

module's system BIOS.

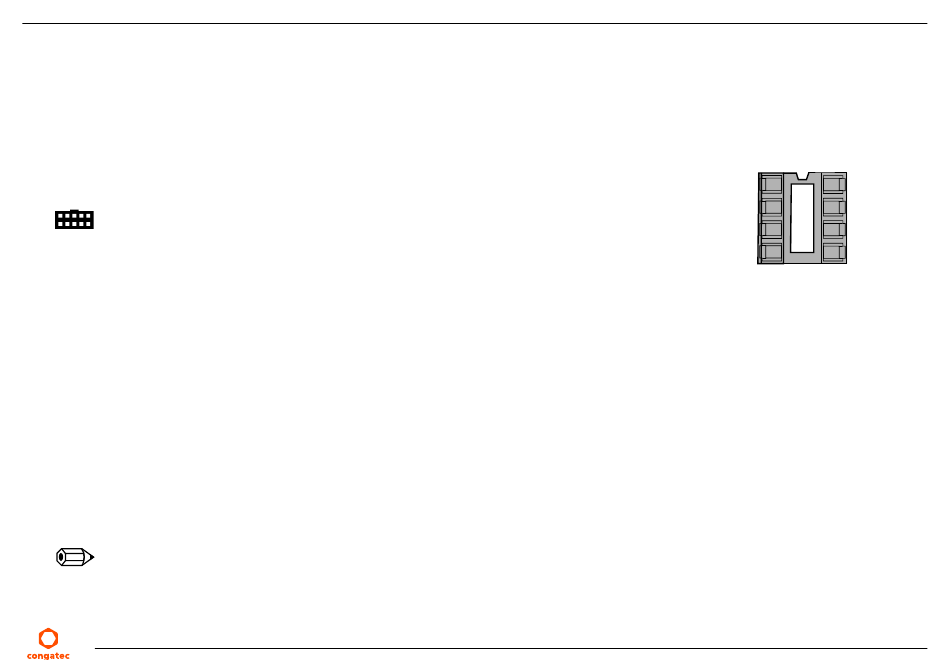

On the conga-TEVAL3/COMe 3.1, you can store a customized EPI extended EDID™ 1.3 file in a serial EEPROM located on DIL SOIC8 socket

U35. The following EEPROMs are supported at address A0h:

• 24C02

• 24C04

• 24C16

Connector Type

U35: EEPROM in 8-pin DIL package

4.8

The conga-TEVAL3/COMe 3.1 provides the following USB connectors:

• two USB4 Type-C

– USB4 port 1 on connector X35

– USB4 port 2 on connector X36

• two dual-stacked USB 3.1 Type-A

– USB ports 0 and 1 on connector X29

– USB ports 2 and 3 on connector X30

• USB Type B on connector X31, multiplexed with USB port 0 on the lower slot of USB connector X29

• USB 2.0 port 6 on M.2 Key B socket socket X12, multiplexed with USB pin header X32

• USB 2.0 port 7 on M.2 Key E socket socket X16, multiplexed with USB pin header X32

Note

The conga-TEVAL3/COMe 3.1 allows selection of the control signal that activates the USB ports. Refer to Table 13 "SW1 - USB Ports Enable

Control".

TEVA31_m001

CPU

U35

38/62
