Mic-In; Line-Out; Optical S/Pdif-Out; Table 36 Mic-In (X47) Pinout Description - Congatec conga-TEVAL3/COMe 3.1 User Manual

4.10.1

MIC-In

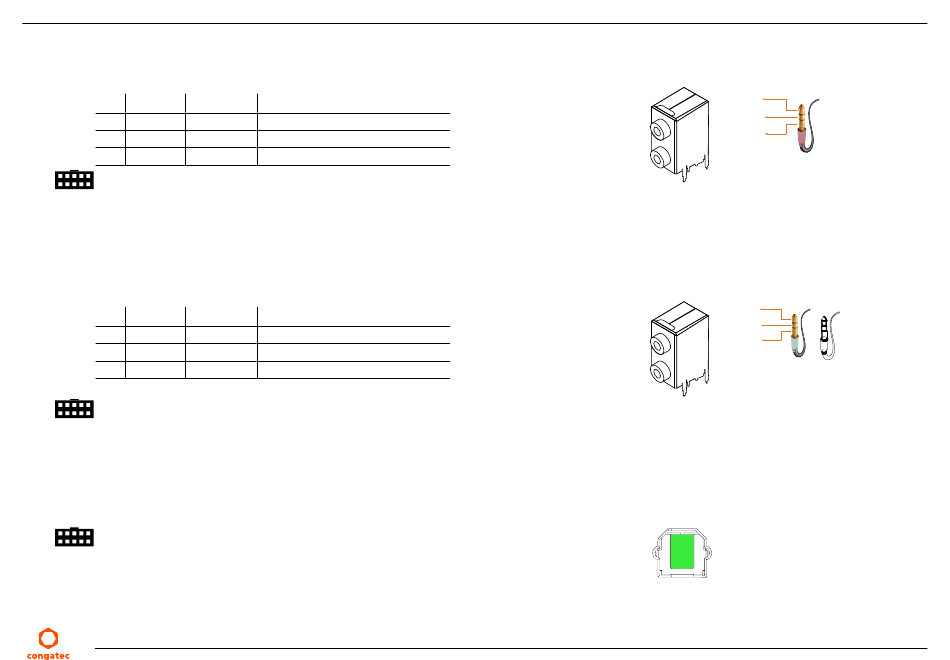

Table 36 MIC-In (X47) Pinout Description
Pin Jack Signal
1 Tip MIC_L
2 Ring MIC_R
3 Sleeve A_GND
Connector Type
X47 Lower Jack: 3-pin, 3.5 mm single audio jack
4.10.2

Line-Out

Table 37 Line-Out (X47) Pinout Description
Pin Jack Signal
1 Tip LINE_L
2 Ring LINE_R
3 Sleeve A_GND
Connector Type
X47 Upper Jack: 3-pin, 3.5 mm single audio jack
4.10.3

Optical S/PDIF-Out

The conga-TEVAL3/COMe 3.1 provides S/PDIF-OUT signal on connector X48.
Connector Type
X48: TOSLINK Optical cable
Copyright © 2025 congatec GmbH
Description
Microphone - left channel
Microphone - right channel
Analog ground
Description
Line-OUT - left channel
Line-OUT - right channel
Analog ground
LINE-OUT
MIC-IN
LINE-OUT
MIC-IN
TEVA31_m001
X47 Jack (MIC-IN)
Tip
Ring
Sleeve
Jack (Line-IN)
X47
Tip
Ring
Sleeve
X48
