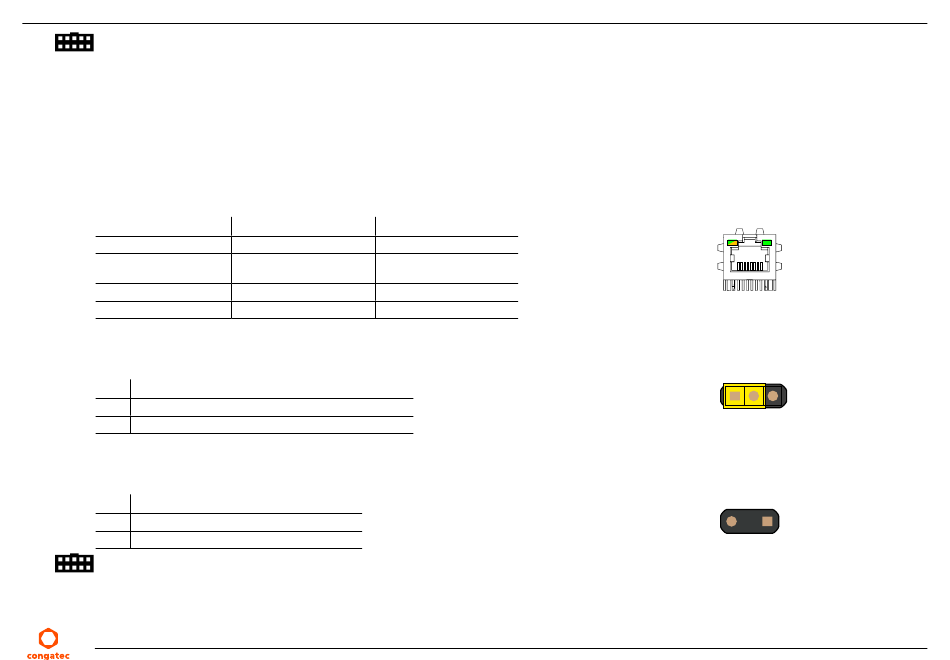

Gigabit Ethernet (GbE)

The conga-TEVAL3/COMe 3.1 provides a 2.5 Gigabit Ethernet port on a standard RJ45 connector (X34). Use a JP2 jumper to set the power rail
for the status LEDs on connector X32.
Table 33 GbE (X34) Status LEDs
Color (LED)
Green (right LED)
Off (left bicolor LED)
Green (left bicolor LED)
Yellow (left bicolor LED)
Table 34 JP2 - Ethernet LEDs Power Configuration
Pin Configuration
1-2 Status LEDs are powered by standby voltage (default)
2-3 Status LEDs are powered by main voltage
Table 35 X33 - Ethernet SDP
Pin Configuration
1 SDP signal
2 Ground
Connector Type
X34: RJ45 cable plug
JP2: 2.54 mm grid jumper
X33: 2-pin picoBlade 1.25 mm pitch receptacle
Copyright © 2025 congatec GmbH
Signal Description
GBE_ACT#_R Link activity
- Lowest speed (Module
specific)
GBE_LINK_MID#_GK Half speed (Module specific)
GBE_LINK_MAX#_YK Full speed (Module specific)
TEVA31_m001
X34
8 1
JP2
1 2 3
X33
1 2
