4.7.3.1

eDP

For eDP functionality on connector X39, set DIP SW8.1 to ON.

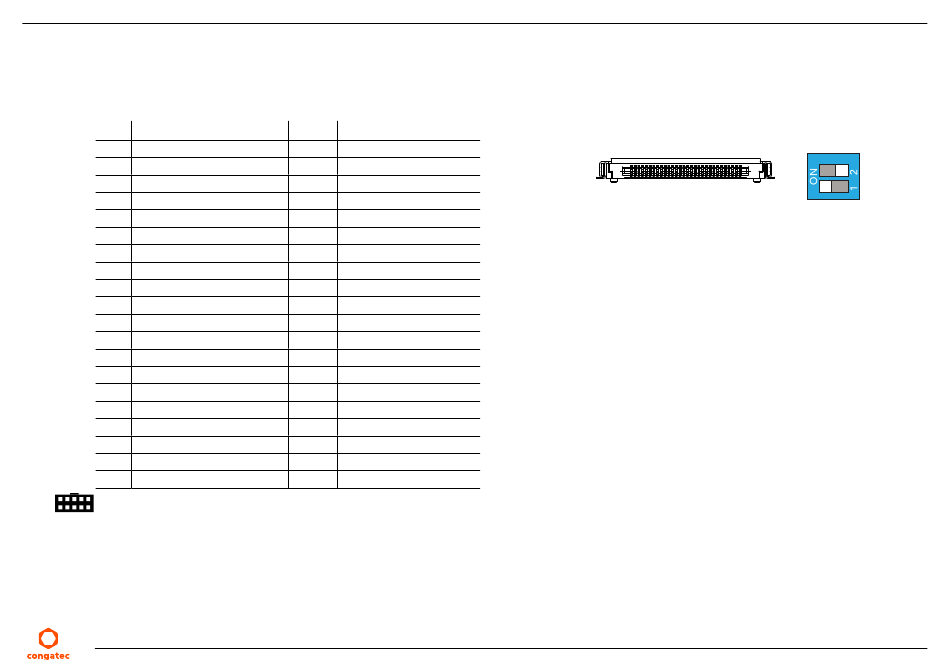

Table 22 X39 - eDP Pinout Description
Pin Signal
1 N.C
2 GND
3 eDP_TX3-
4 eDP_TX3+
5 GND
6 eDP_TX2-
7 eDP_TX2+
8 GND
9 eDP_TX1-
10 eDP_TX1+
11 GND
12 eDP_TX0-
13 eDP_TX0+
14 GND
15 eDP]_AUX+
16 eDP_AUX-
17 GND
18 PANEL_PWR
19 PANEL_PWR
20 PANEL_PWR
Connector Type
X39: 0.5 mm, 40 Pos. ACES series 50204 connector
Copyright © 2025 congatec GmbH
Pin Signal
21 PANEL_PWR
22 N.C
23 GND
24 GND
25 GND
26 GND
27 eDP_HPD
28 GND
29 GND
30 GND
31 GND
32 eDP_LVDS_BKLT_EN
33 eDP_LVDS_BKLT_CTRL
34 N.C.
35 N.C.
36 N.C
37 BKLT_PWR
38 BKLT_PWR
39 BKLT_PWR
40 N.C
TEVA31_m001
SW8
X39
