4.8.4 SATA/SATADOM
The conga-TEVAL3/COMe 3.1 provides four standard SATA 6 Gbps connectors (X20 - X23). SATADOM devices are supported on all connectors
while external power is connected. Use jumper JP1 to provide +5V power on pin 7 of connector X20. The 5V power rail on SATA0 pin 7
(SATADOM mode) is protected by a 0.5A fuse.
The SATA activity LED (D9) lights when an activity occurs on any of the SATA interfaces. The pin header X26 provides an option to connect
external SATA activity LED (serial resistor 220R to 3.3V is implemented on the board).

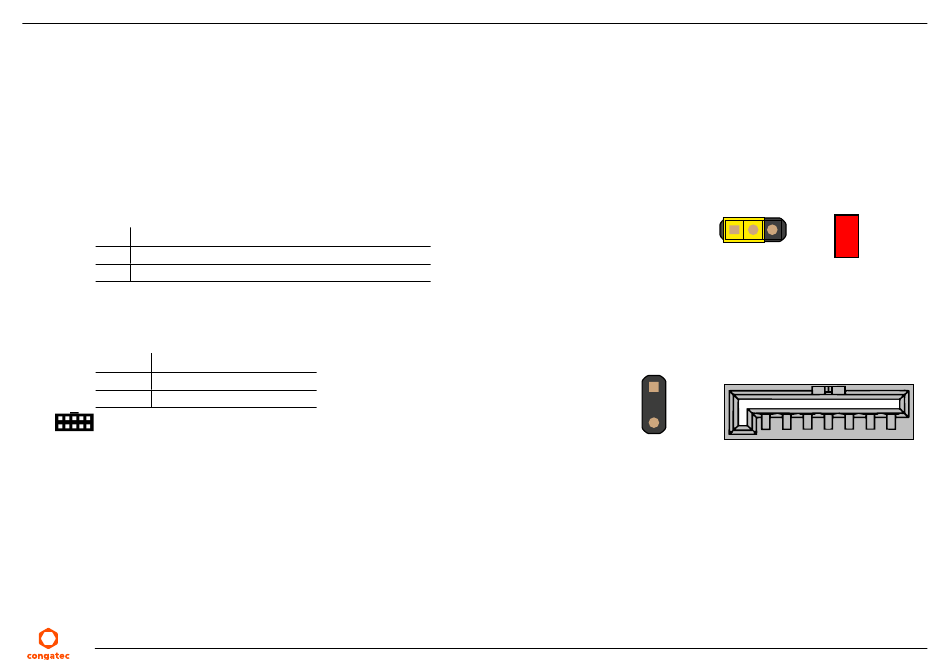

Table 30 JP1 - SATA/SATADOM Configuration
Pin Configuration
1-2 SATA - pulls SATA0 pin 7 to ground (default)
2-3 SATADOM - pulls SATA0 pin 7 to 5V
Table 31 X26 - External SATA Activity LED
Pin Signal
1 Anode
2 Cathode
Connector Type
X26: 2.54 mm, 2-pin socket
X20, X21, X22, X23: standard SATA vertical cable
Copyright © 2025 congatec GmbH
X26
1
2
TEVA31_m001
D9
JP1
1 2 3
X20, X21
X22, X23
7 6 5 4 3 2 1
