5 Operation | 5.4 Rotating the Condenser
2.
3. Bring the objective with the highest magnifica-
4. Press the left Snap button shortly.
5. Switch to the second objective.
6. Repeat to save the parfocality point for all further objectives.
7. Press the left Snap button and the Intensity/LM knob simultaneously for > 8 s.
5.4 Rotating the Condenser
ü
Prerequisite

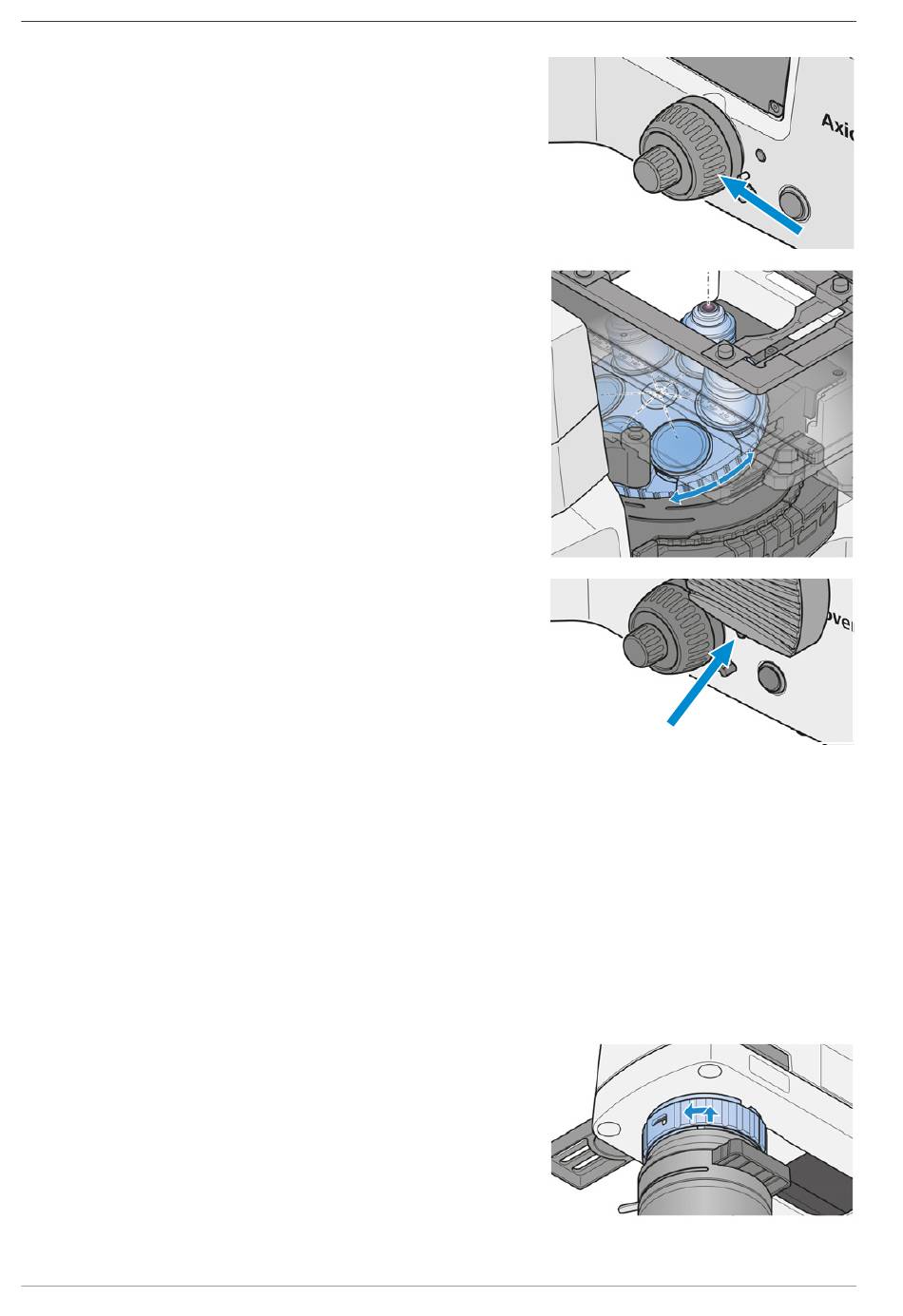

Procedure 1. Turn the locking ring of the quick-action lock-
90
Focus the sample with a medium objective
magnification.
tion into the beam path and refocus, if neces-
sary.
à
The LED indicator and the image blink once
à
The parfocality point for this objective is saved.
à
The LED indicator turns to green.
à
The Parfocality alignment mode is deactivated.
The condenser is installed [
ing mechanism to the left and push it upward.
à
The quick-action locking mechanism is unlocked.
