10 Accessories and Optional System Expansions | 10.1 Approved Optical Configurations
10.1 Approved Optical Configurations
The following combinations of condensers, objectives, and diffusion disks are recommended:
Condenser
LD condenser 0.3 for slider
LD condenser 0.4 for slider
LD condenser 0.4 for H Ph
PlasDIC DIC iHMC
LD condenser 0.55 for H Ph
PlasDIC DIC
*
Use with objective 100x possible, but higher contrast and thus lower resolution due to difference
in aperture.
10.2 Assembling the Adapter for Expansion of the Sample Space
The present section applies to the following microscope types:
§
§
§

Parts and Tools


ü
Prerequisite

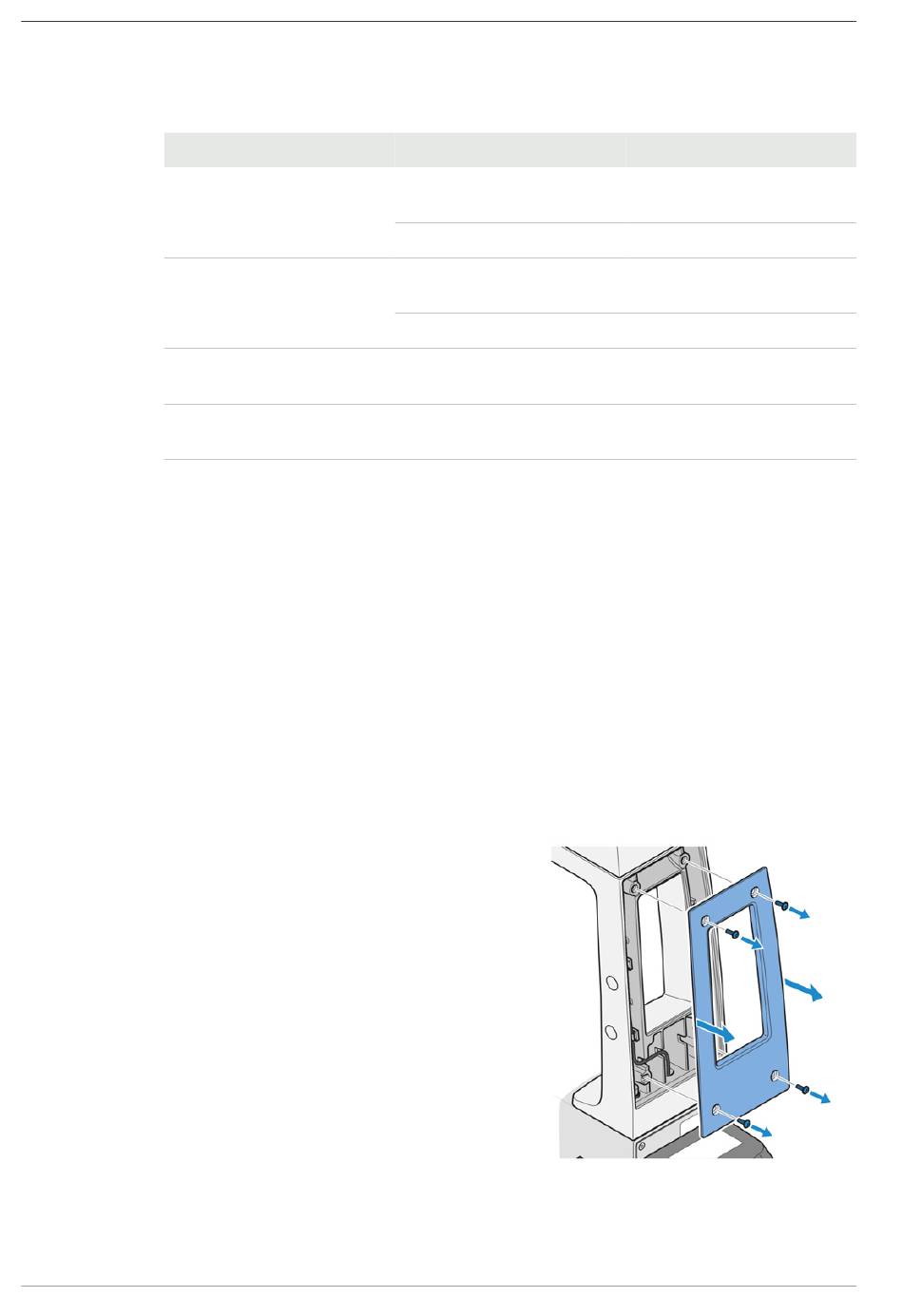

Procedure 1. Remove four screws on the rear cover.
2. Remove the cover.
150
Axiovert 5 TL
Axiovert 5 TL SCB
Axiovert 5 TL FL SCB
Hex Key, 2.0 mm
Hex Key, 5.0 mm
Hex Key, 8.0 mm
The microscope is switched off and disconnected from the mains.
Instruction Manual ZEISS Axiovert 5, Axiovert 5/7 materials | en-US | Rev. 6 | 431030-7011-101
Objective
Objective 1.25x
*
Objectives 2.5x to 40x
Objective 2.5x
*
Objectives 5x to 63x
Objectives 5x to 100x
Objectives 5x to 100x
Diffusion disk
Diffusion disk 1.25x in the
slider of the condenser
-
Diffusion disk 2.5x in the
slider of the condenser
-
-
-
