Zeiss Axiovert 5 Instruction Manual page 41

ZEISS
1
2
3

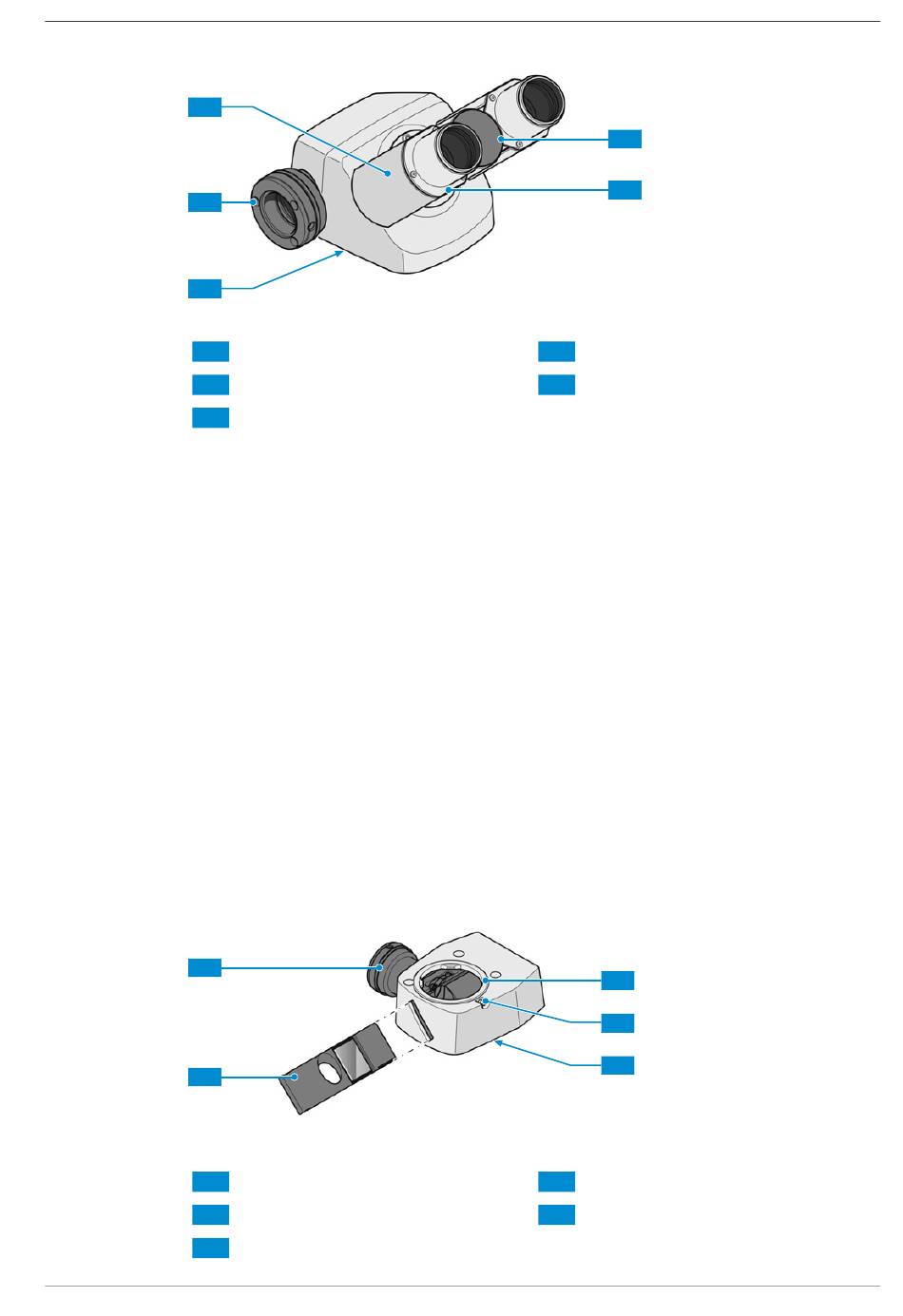

Fig. 21: Binocular phototube, left port 45°/23 (50:50)
1
3
5
3.2.7.5 Intermediate Phototube H = 50 mm, Left Port
Purpose Intermediate tubes are used to direct the light to the eyepieces, to the attached camera or to both
simultaneously.
Position The intermediate tube is mounted between the stand and the binocular tube.
The following features are available:
§
§
§
§
§
§
1
2
Fig. 22: Intermediate Phototube H = 50 mm, Left Port
1
3
5
Instruction Manual ZEISS Axiovert 5, Axiovert 5/7 materials | en-US | Rev. 6 | 431030-7011-101
3 Product and Functional Description | 3.2 Controls and Functional Elements on Components
Binocular section
Dovetail ring mount
Eyepiece socket
camera port with interface 60N
camera installed on the left side
slider with mirror or beam splitters with two positions
If the slider with 100% mirror is used:
– Position 1: 100 % of the light is directed to eyepieces
– Position 2: 100 % of the light is directed to the camera
If the slider with beam splitter 50:50 is used:
– Position 1: 100 % of the light is directed to eyepieces
– Position 2: 50 % of the light is directed to eyepieces and 50 % to camera
If the slider with beam splitter 20:80 is used:
– Position 1: 100 % of the light is directed to eyepieces
– Position 2: 20 % of the light is directed to eyepieces and 80 % to camera
Camera port
Dovetail ring mount for tube
Dovetail ring mount for stand
4
5
2 Camera port
4 Pupil distance scale
3
4
5
2 Slider with beam splitter or mirror
4 Fixing screw
41
