4.11 Loading the 6-Position Reflector Turret
The present section applies to the following microscope types:
§
§
§
§
§
4.11.1 Assembling Reflector Modules
To ease the use and the recovery of reflector modules, the modules should be installed to defined
positions. The turret positions' numeric markings can be used to identify the modules.

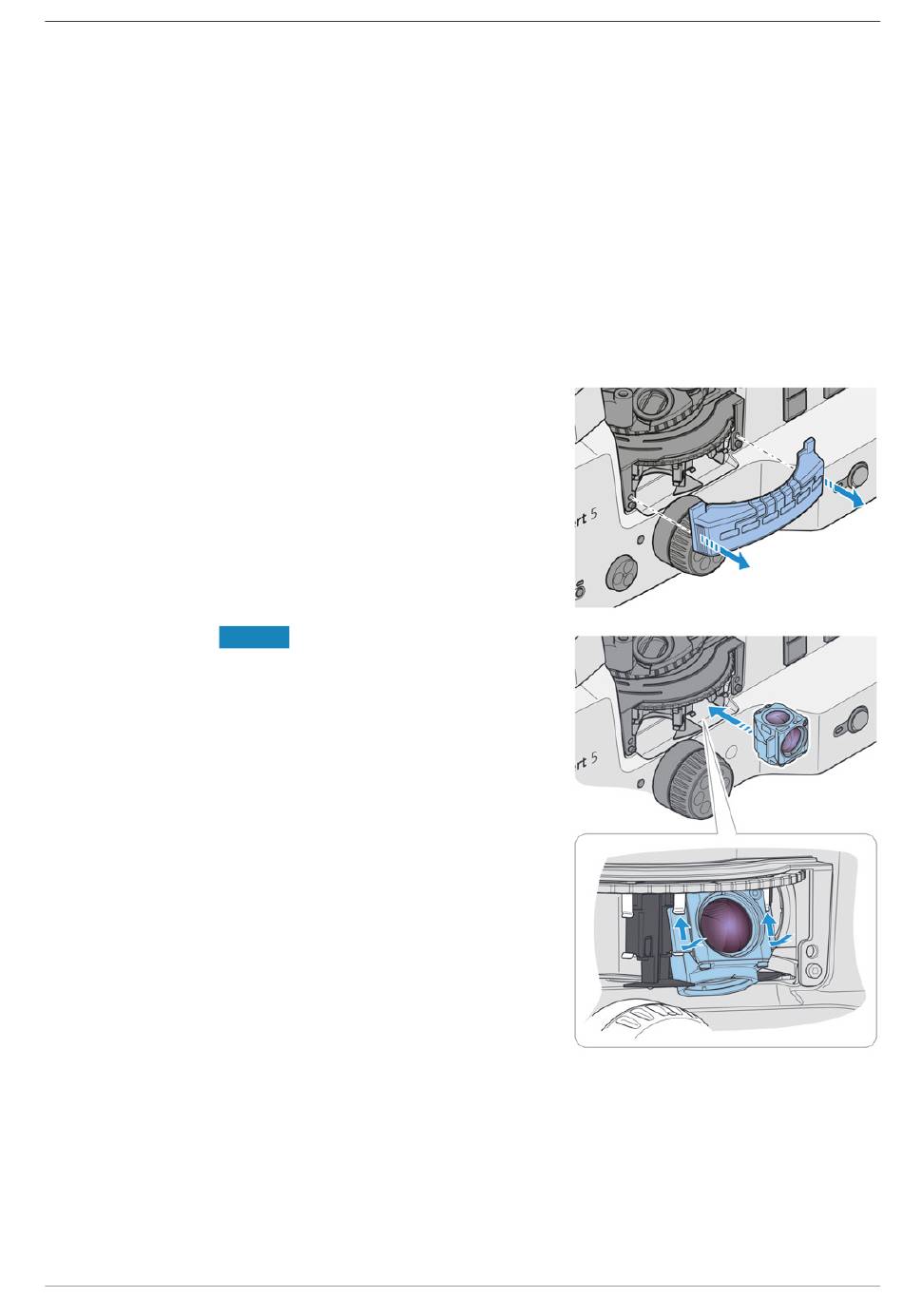

Procedure 1. Remove the protective cover.
2.
3. Tilt the module away from the turret.
4. Press the upper edges of the module's retaining elements to the turret position's upper
5. Push the modules lower edge towards the turret's center, so the retaining elements snap in
Instruction Manual ZEISS Axiovert 5, Axiovert 5/7 materials | en-US | Rev. 6 | 431030-7011-101
Axiovert 5 TL FL SCB
Axiovert 5 RL SCB
Axiovert 5 RL TL SCB
Axiovert 7 RL
Axiovert 7 RL TL
NOTICE Avoid touching optical surfaces.
Carefully grab the module to be installed so
that the excitation filter points away from the
turret center and the screws point downwards.
spring clips.
to the lower spring clips.
4 Installation | 4.11 Loading the 6-Position Reflector Turret
