10.6 External Light Sources
Info
The external light sources are not controlled by the microscope. Therefore they cannot be used
with the Light Manager function.
10.6.1 HAL 100 Light Source
Purpose The HAL 100 serves as a light source for the reflected light process.
Position The HAL 100 is installed on the reflected light port on the backside of the stand.
1
2

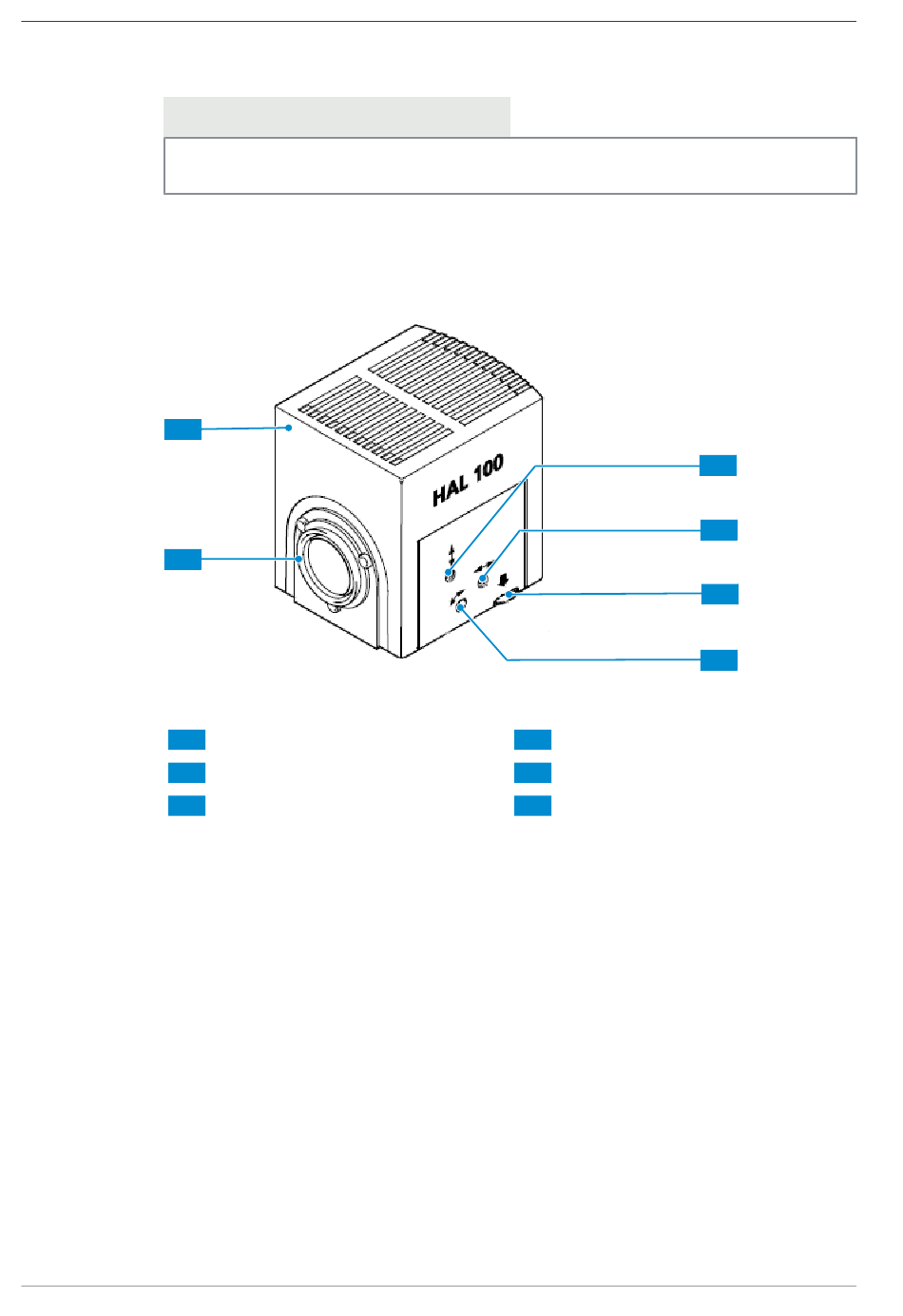

Fig. 64: HAL 100
1
3
5
160
Lamp housing
Vertical adjusting screw
Release button
Instruction Manual ZEISS Axiovert 5, Axiovert 5/7 materials | en-US | Rev. 6 | 431030-7011-101
2 Dovetail ring
4 Horizontal adjusting screw
6 Adjusting screw
