ZEISS

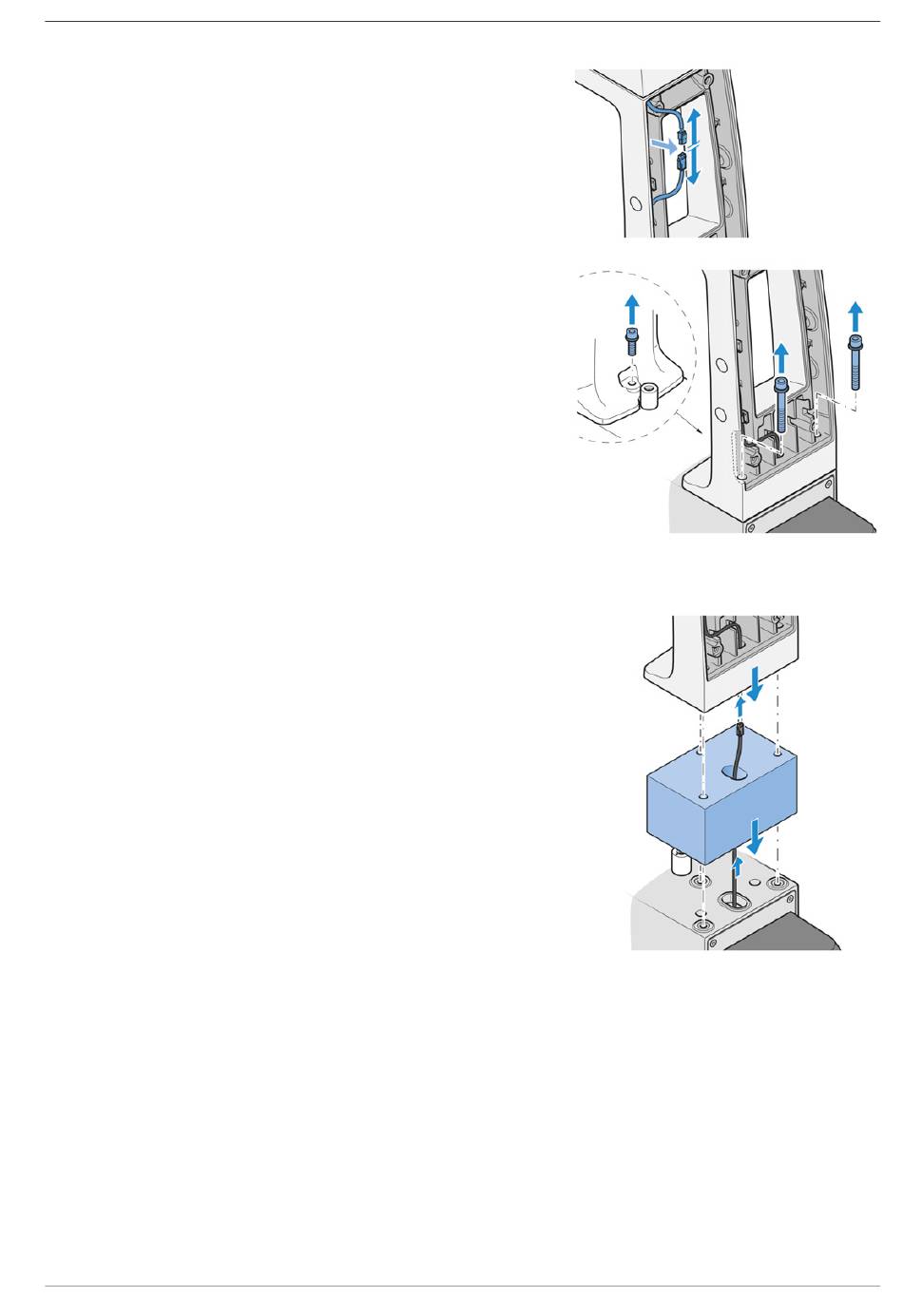

10 Accessories and Optional System Expansions | 10.2 Assembling the Adapter for Expansion of the Sample Space
3. Unplug the connector of the TL light source.
4. Remove two screws. Use the hex key 8.0 mm.
5. On the frontside of the stand, remove one screw. Use the hex key 5.0 mm.
6. Remove the carrier transmitted light illumination and pull the cable through the hole.
7. Put the cable through the hole in the adapter
8. Fix the adapter for expansion with the lower part of the two-piece screws.
9. Put the cable through the hole in the carrier for transmitted light illumination.
Instruction Manual ZEISS Axiovert 5, Axiovert 5/7 materials | en-US | Rev. 6 | 431030-7011-101
for expansion.
151
