Zeiss Axiovert 5 Instruction Manual page 52

3 Product and Functional Description | 3.2 Controls and Functional Elements on Components
§
§

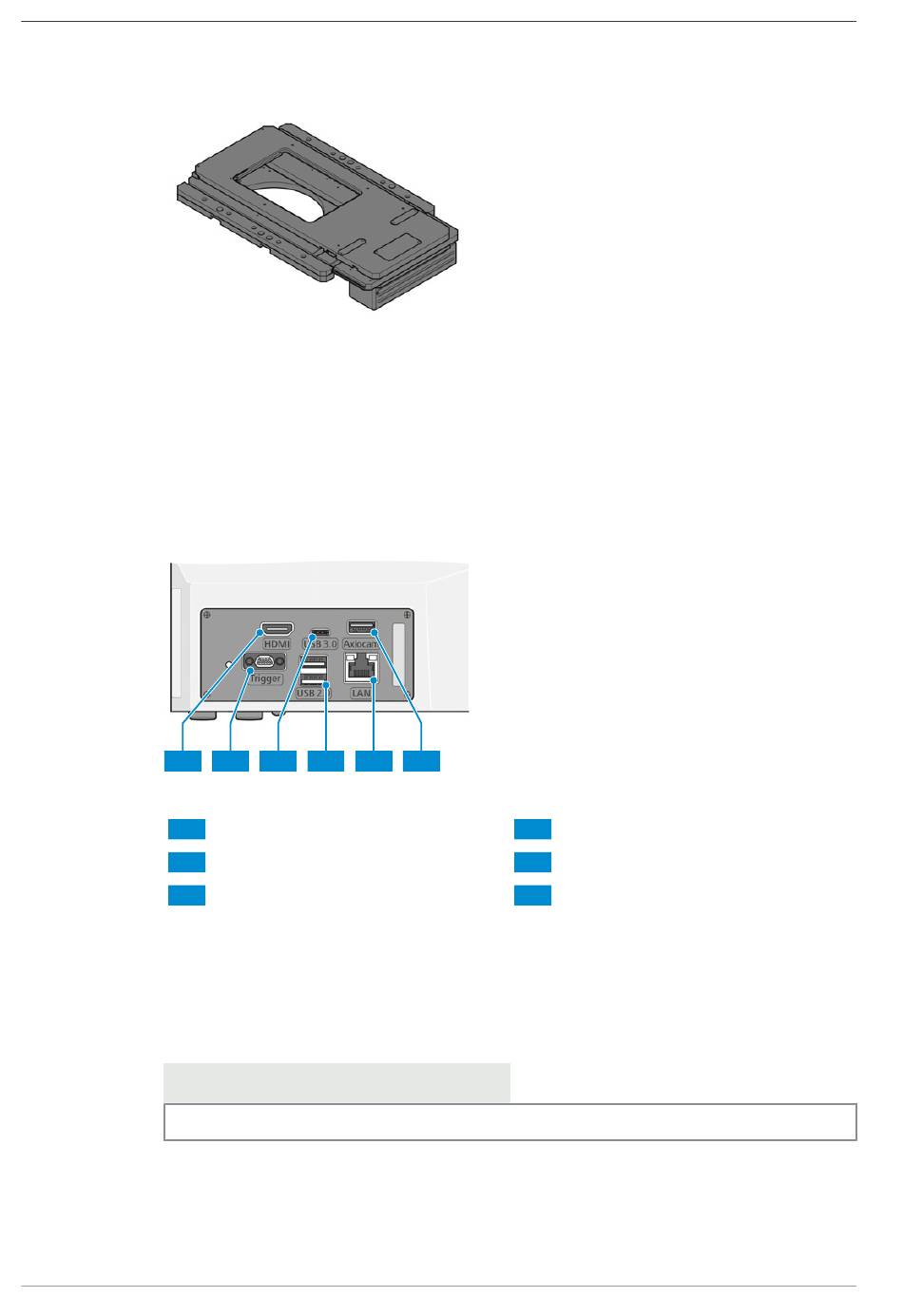

Fig. 34: Scanning Stage 130x85 mot P; CAN
3.2.13 Smart Control Box
The present section applies to the following microscope types:
§
§
§
§
1
Fig. 35: Smart Control Box
1
3
5
Purpose The Smart Control Box is used for stand-alone operation (without PC) of microscope stand func-
tions with ZEISS Axiocam (202, 208, 305) via On Screen Display (OSD) and for operation with Lab-
scope (Windows and Apple® iOS®). Automatic functions for camera control, image enhancement
functions and for reading out encrypted microscope functions are also available via the Smart
Control Box.
For more information on available operating modes, see Operating Modes [
Info
Further information on the software and its operation is available in the software's online help.
52
travel range 130x85 mm
mounting frames K (frame size 160x110 mm) can be inserted into the opening
Axiovert 5 TL SCB
Axiovert 5 TL FL SCB
Axiovert 5 RL SCB
Axiovert 5 RL TL SCB
2 3 4
HDMI port
USB 3.0 type C
Ethernet port
Instruction Manual ZEISS Axiovert 5, Axiovert 5/7 materials | en-US | Rev. 6 | 431030-7011-101
5 6
2
4
6
Micro D port
USB 2.0 type A ports
USB 3.0 type A port
}
59].
