Zeiss Axiovert 5 Instruction Manual page 78

4 Installation | 4.11 Loading the 6-Position Reflector Turret
6. Re-install the protective cover.
7. Stick the adhesive labels specifying the filter combinations utilized for each reflector turret
Proceed in the reverse order for removal.
4.11.2 Assigning Reflector Modules
The reflector modules can be assigned in different ways:
§
§
§
Info
For additional information and detailed descriptions, refer to further applicable documents or
ask your ZEISS Sales & Service Partner.
4.11.3 Exchanging the Filters of a Reflector Module FL P&C
NOTICE
Sensitive equipment
Changing the optical parts of a reflector module without damage requires considerable skills
and utmost care.
4
4
1
2
3
4

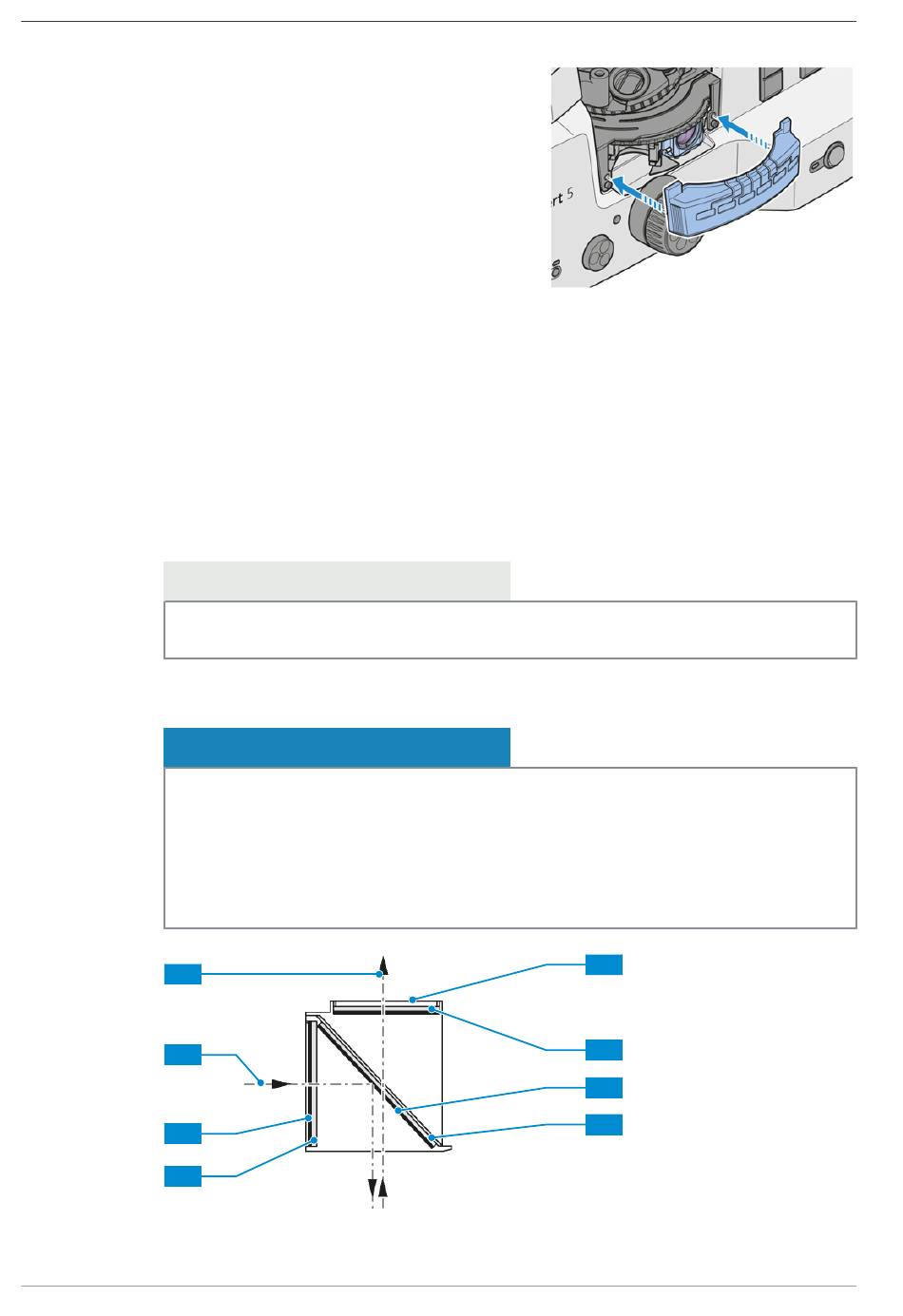

Fig. 44: Mounting the filters and the beam splitter
78
position to the spaces provided on the protective cover.
Assign the reflector modules via OSD.
Assign the reflector modules via Labscope.
Assign the reflector modules via MTB.
If possible, use fully equipped reflector modules provided by ZEISS.
Take maximum care not to damage any optical or mechanical part when equipping a re-
flector module.
Instruction Manual ZEISS Axiovert 5, Axiovert 5/7 materials | en-US | Rev. 6 | 431030-7011-101
5
6
7
8
