10 Accessories and Optional System Expansions | 10.6 External Light Sources
10.6.3 X-Cite Xylis® Light Source
Purpose The X-Cite Xylis
light for many fluorescence applications.
Position The X-Cite Xylis
adapter.

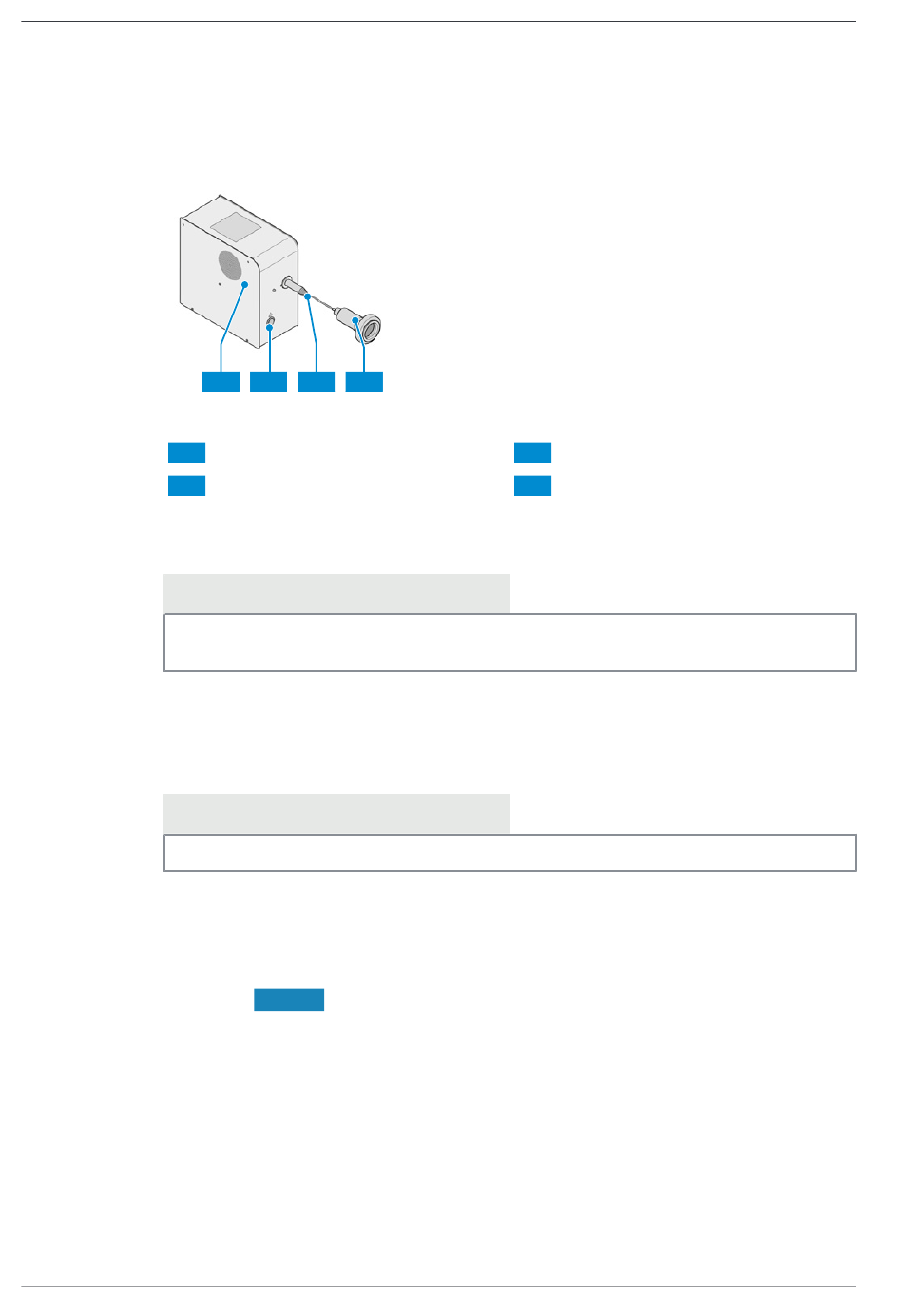

Fig. 66: X-Cite Xylis® light source
1
3
10.6.4 Assembling a Colibri 5 or Colibri 7 Light Source
Info
For installing the Colibri 5 or Colibri 7 light source, consult the instruction manual supplied
with the light source.
10.6.5 HXP 120 V Light Source
The Compact Light Source HXP 120 V produces light of very high intensity and couples the light in
the optical fiber, preferably liquid optical fiber with an active diameter of 3 mm.
Info
Refer for further information to the instruction manual of the HXP 120 V.
10.6.5.1 Assembling the HXP 120 V Light Source
Procedure 1. Place the light source on the table.
2. Connect the plug-in power supply to the mains power supply.
3. Refer to the instruction manual of the HXP 120 V for further installation steps.
166
®
liquid light guide coupled light source delivers a broad spectrum of excitation
®
light source is connected to the microscope by a light guide and an illumination
2
1 3 4
X-Cite Xylis® light source
Light guide
à
The front side with the operating and display elements must be freely accessible and visi-
NOTICE The ventilation slots on the sides and the rear panel of the device
ble.
must not be covered; a free space of at least of at least 150 mm must be main-
tained in the area of the ventilation slots.
Instruction Manual ZEISS Axiovert 5, Axiovert 5/7 materials | en-US | Rev. 6 | 431030-7011-101
2 Power switch
4 Illumination adapter
