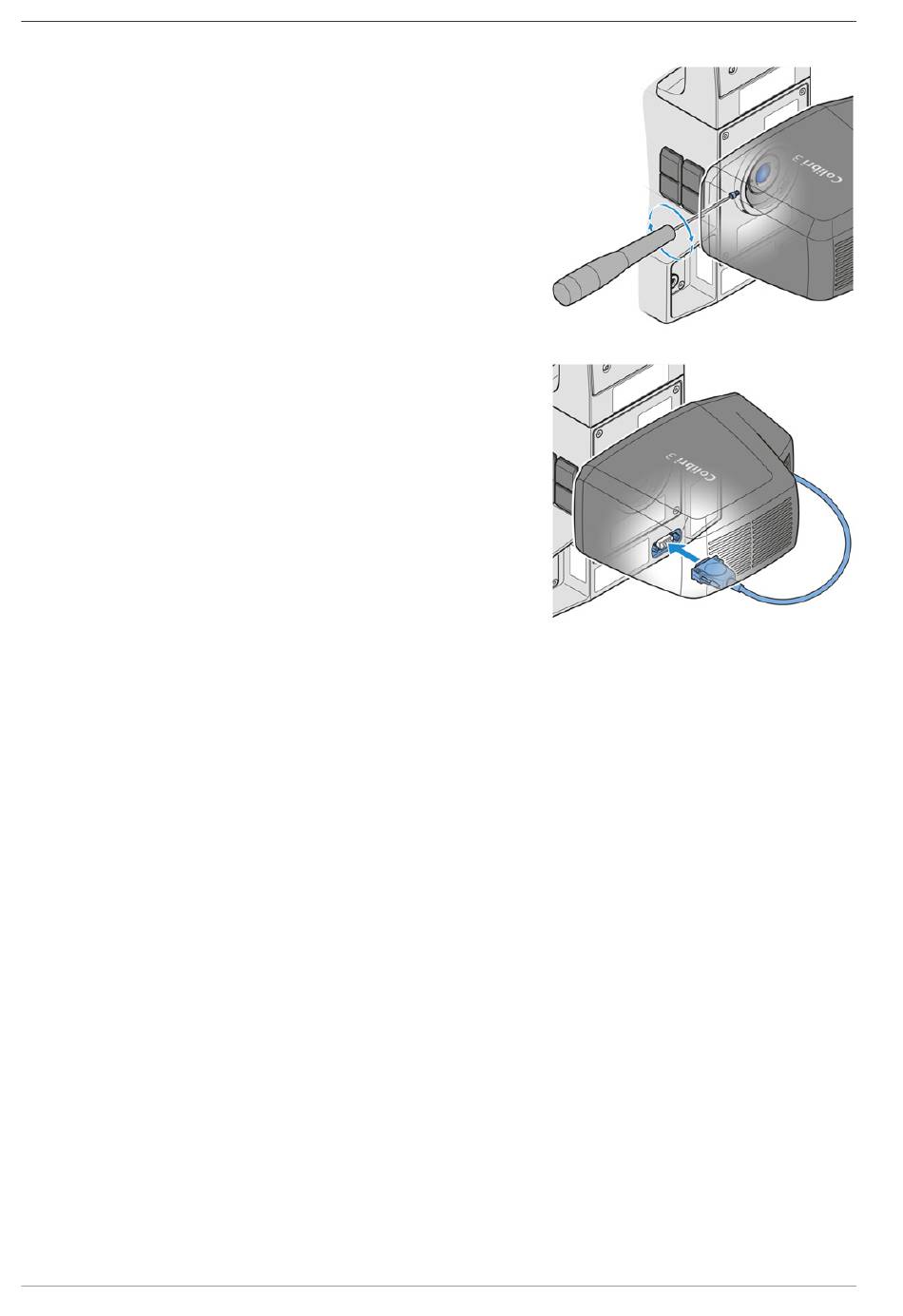

4 Installation | 4.13 Assembling the Colibri 3 LED Light Source
4. Tighten the clamping screw.
5. Connect the LED light source plug to the stand
6. Tighten the fixing screws on the plug.
Proceed in the reverse order for removal.
84
socket.
Instruction Manual ZEISS Axiovert 5, Axiovert 5/7 materials | en-US | Rev. 6 | 431030-7011-101
