Zeiss Axiovert 5 Instruction Manual page 35

ZEISS
3.2.4 Axiovert 5 RL TL SCB and Axiovert 7 RL TL Stands
Purpose This section shows the functional components and controls of Axiovert 5 RL TL SCB and Ax-
iovert 7 RL TL.
1
2
3
4
5
6

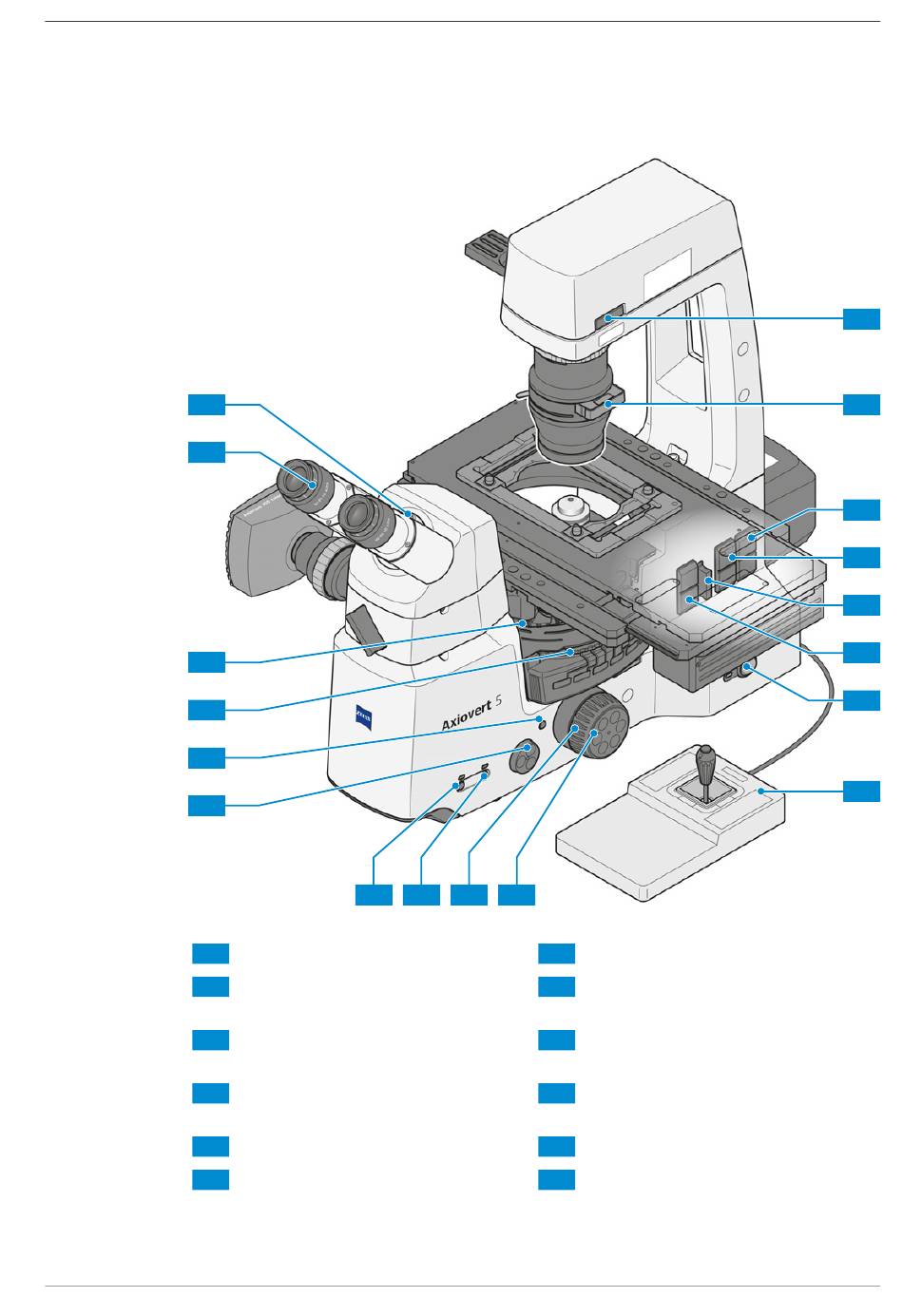

Fig. 16: Axiovert 5 RL TL SCB and Axiovert 7 RL TL - Controls and functional elements (right side)
1
3
5
7
9
11
Instruction Manual ZEISS Axiovert 5, Axiovert 5/7 materials | en-US | Rev. 6 | 431030-7011-101
3 Product and Functional Description | 3.2 Controls and Functional Elements on Components
7
Binocular tube
Knurled wheel for changing the nose-
piece position
Snap button (right and left side)
TL (Transmitted light) button with indi-
cator
Focusing drive – coarse adjustment
Two-position filter slider mounted on
the carrier for transmitted light illumina-
tion
8 9 10
2
4
6
8
10
12
Eyepieces
Knurled wheel for changing the reflec-
tor turret position
Intensity/LM knob for light intensity
and Light Manager function (LM)
RL (Reflected light) button with indica-
tor
Focusing drive – fine adjustment
Slot for filter sliders (right and left side)
10
11
12
13
14
15
16
17
35
