3 Installation

3.7.2 Cover Shutoff

Because of the risk of blindness, burns, and other injuries from direct exposure to the invisible
engraving beam, this device shuts off the laser automatically when any one of its protective interlocks
is triggered.
Always make sure the path is clear between the laser and its target.
Never allow foreign objects between the laser and the material being engraved.
Take care not to leave any part of your body in the laser path when it is in
operation.
You should test that this engraver also shuts off the laser automatically when the protective cover is
raised during operation.
You should test that the cover shutoffs activate properly before conducting any other work on your
machine.

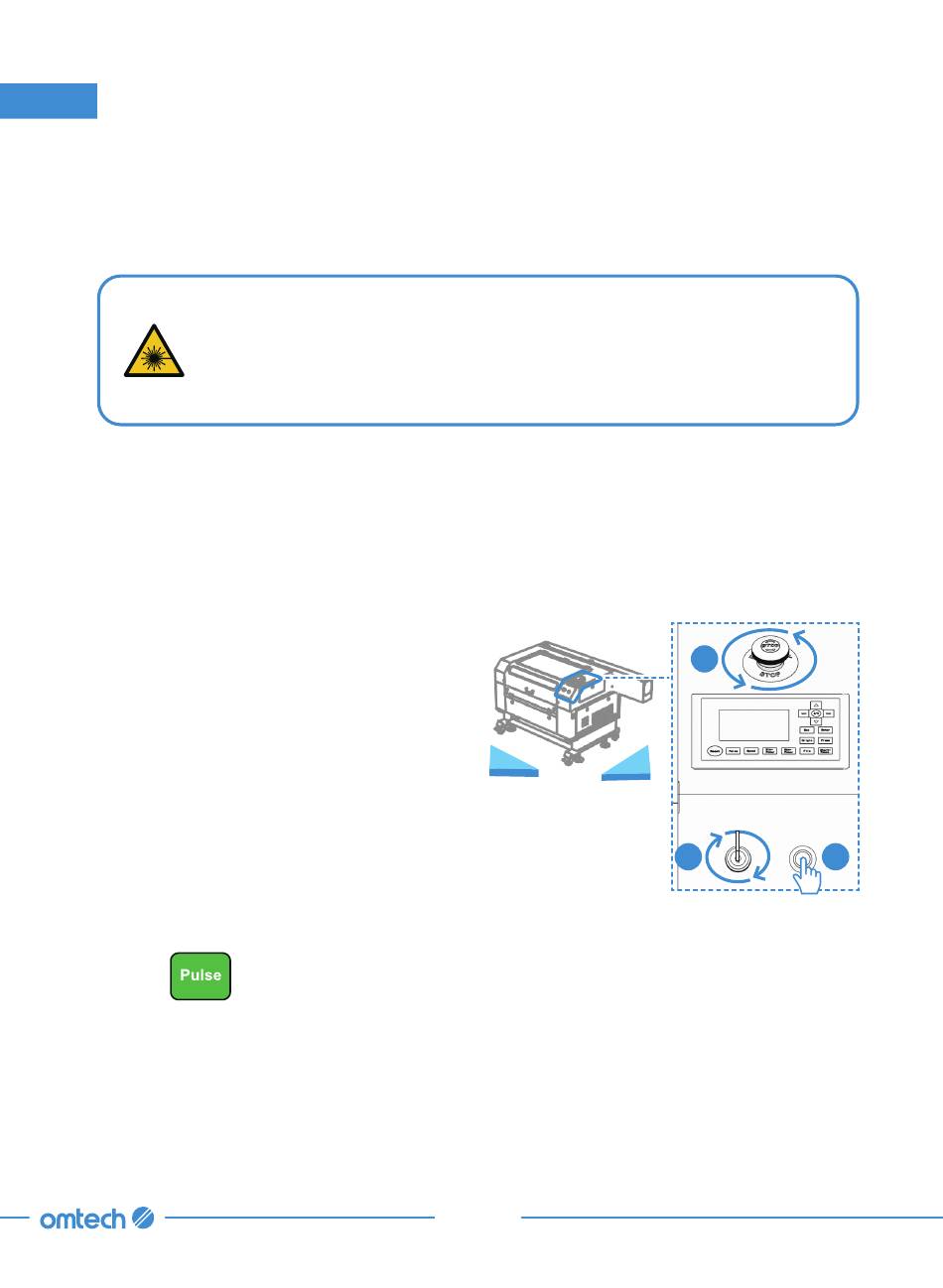

1. Turn on the water cooling system.
Confirm that the cooling system has been activated.
2. Turn the Emergency Stop button clockwise
to unlock it.
3. Press the control system power button to
turn on the engraver.
Confirm that the air assist and exhaust fan
have been activated.
4. Insert the laser key and turn it clockwise to
turn on the laser.
5. Place a piece of laserable scrap material onto the workbed and then close the cover.
6. Press on the control panel to fire the laser.
Front
Right
45
2
4 3
