2 Introduction

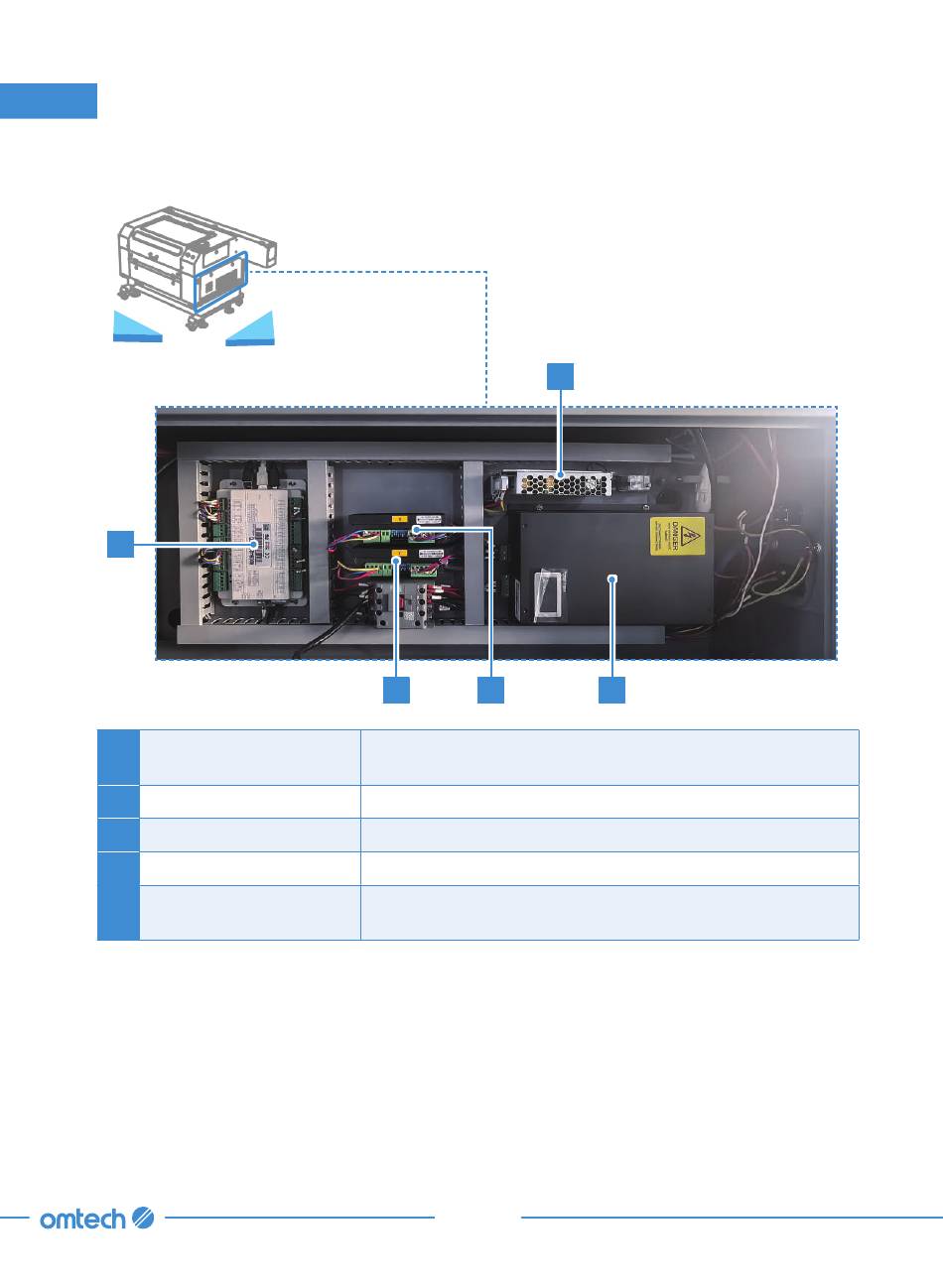

2.4.8 Electronics Bay

Front
Right
A
A
Mainboard
B
X-Axis Driver
C
Y-Axis Driver
D
Control Power Supply
E
Laser Power Supply
C
B
Controls the engraving process, responding to commands
from your engraving software or the machine's control panel.
Moves the laser head along the X rail.
Moves the X rail along the Y rail.
Powers the machine's control panel.
Transforms standard electricity into the extremely high voltage
charge necessary for the laser tube.
25
D
E
