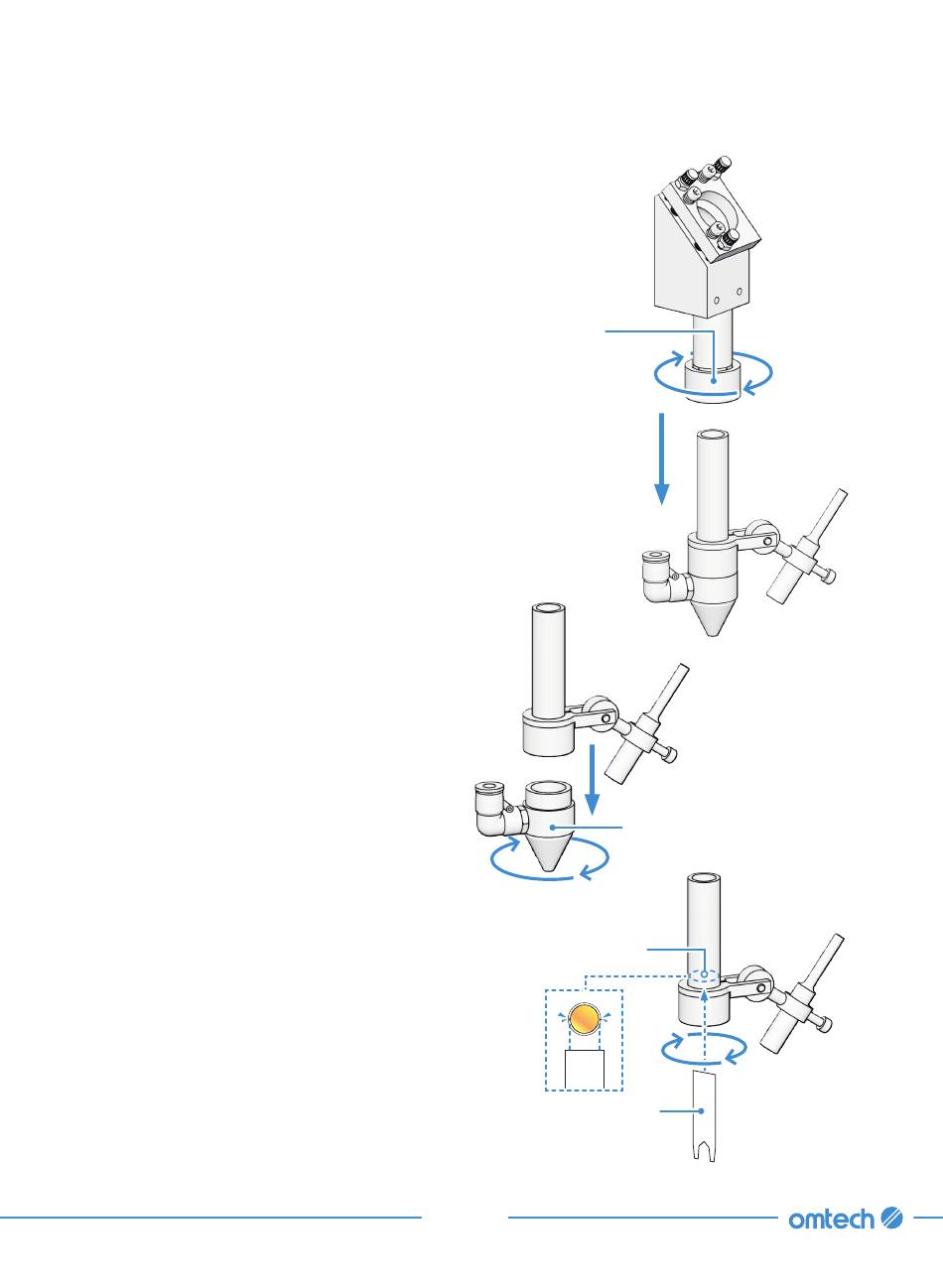

4. Remove the laser guide connections by
unscrewing the lens holder counterclockwise.
5. Remove the nozzle by rotating it toward you.
6. R e m ove t h e l e n s f ro m t h e l e n s h o l d e r
b y t u r n i n g t h e l e n s h o l d e r l o c k r i n g
counterclockwise with the focus lens repair
tool (not inclued) and letting the lens and its
O-ring drop onto the cleaning cloth.
Lens Holder
Nozzle
Focus Lens
Focus Lens Repair Tool
