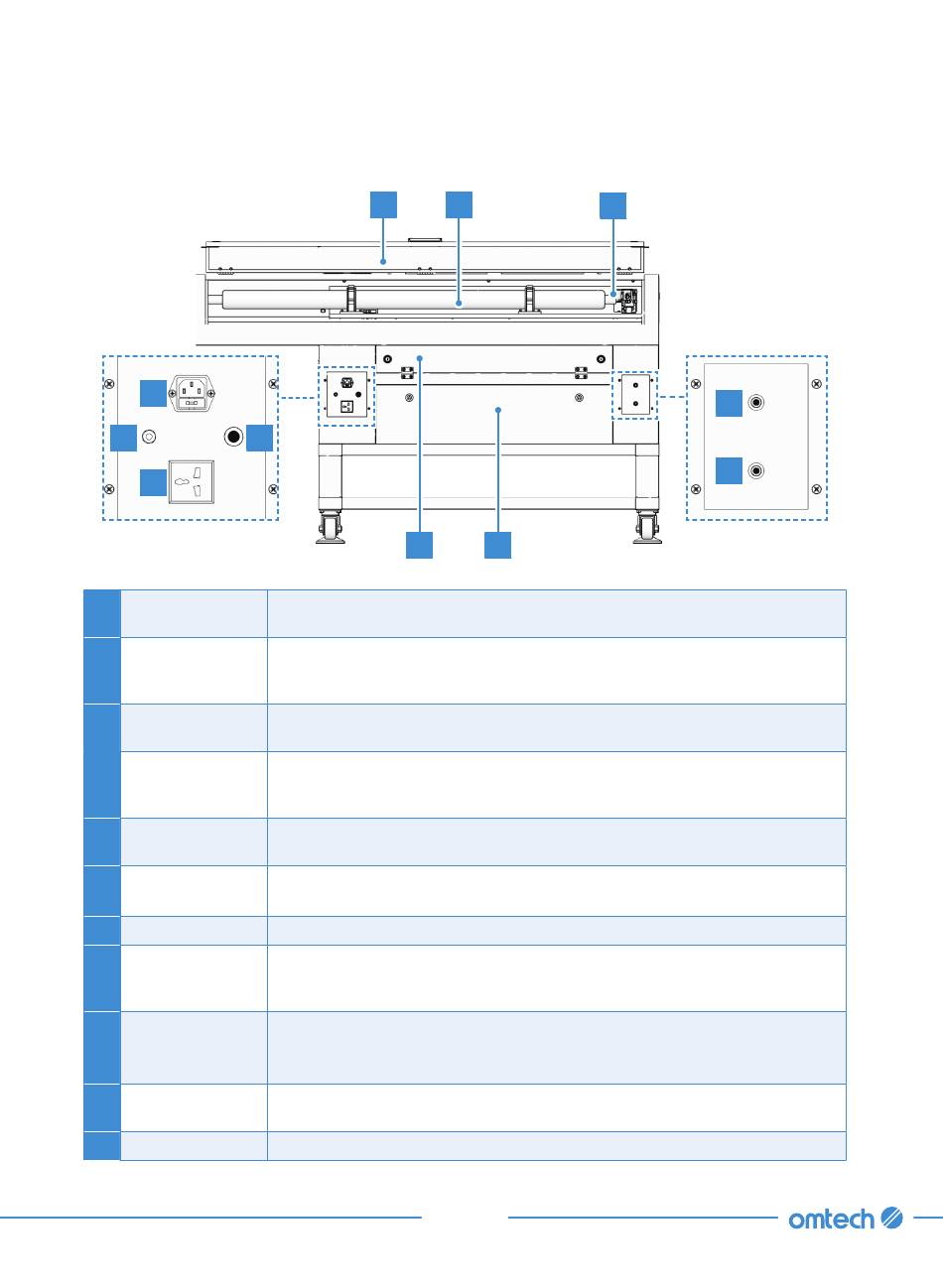

2.4.3 Back View

F
G H
I
Top Rear Access
A
Door
Laser Tube
B
C 1st Mirror
Rear Pass-
D
Through Door
Bottom Rear
E
Access Door
F Main Power Port
Grounding
G
Air Assist Intake
H
Water Pump
I
Port
J Water Inlet
Water Outlet
K
A
D
Opens to the laser bay, holding the laser tube, its connections, and the
red dot locator.
Produces your engraving laser safely with helium, nitrogen, and CO ₂ gas
and water cooled filled inside. Its connection to the laser power supply is
extremely high voltage and extremely dangerous.
This adjustable-angle mirror is fixed in place to transfer the engraving
laser from the tube to the 2nd mirror.
Used as the rear equivalent of the front pass-through door and requires
similar care during use.
Provides access to the air pump for easier maintenance.
Provides main power supply with the standard 3-prong main power cable.
Connects to the dedicated grounding cable for safety if applicable.
Connects to the air assist pump with a hose of 8 mm diameter to provide
its pressurized air. Periodically check its filter to keep it clear of any
obstruction.
Provide an additional socket for your water pump if needed. It is
recommended, however, to use a separate plug on a different fuse for
your water cooling system.
Connects to the outlet of your water pump or chiller to keep your laser
tube cool and stable.
Connects to the inlet of your water pump or chiller.
B
C
E
18
J
K
