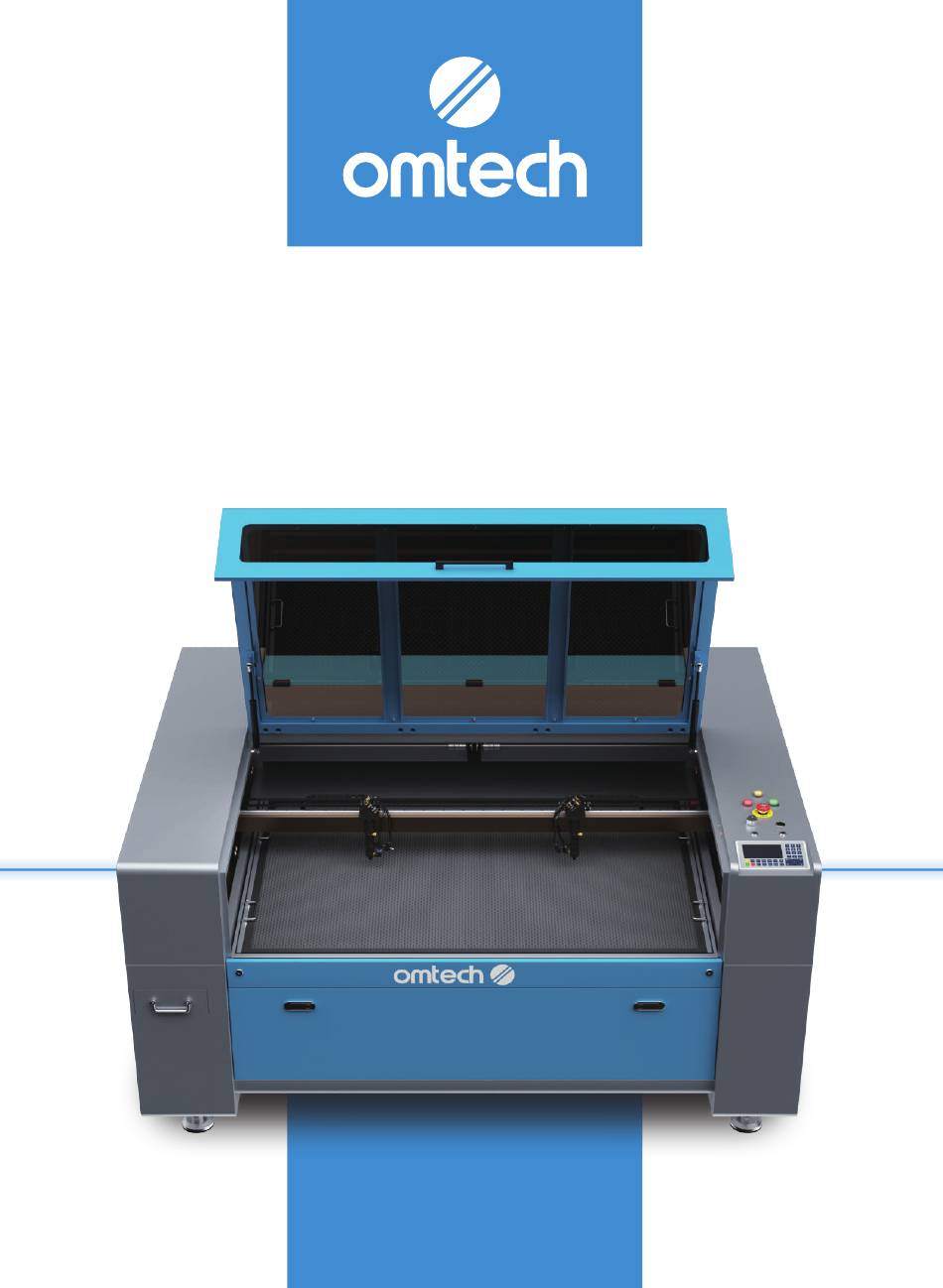

Omtech SH-G1390 User Manual

130w / co2 cabinet laser engraver
Hide thumbs

Advertisement

Quick Links

Download this manual
V20241219
SH-G1390 | 130W | CO
2
Cabinet Laser Engraver
User Manual
Read Carefully Before Use
Keep for Future Reference

Advertisement

loading
Need help?

Need help?

Do you have a question about the SH-G1390 and is the answer not in the manual?

Questions and answers

Related Manuals for Omtech SH-G1390

Summary of Contents for Omtech SH-G1390

  • Page 1 V20241219 SH-G1390 | 130W | CO Cabinet Laser Engraver User Manual Read Carefully Before Use Keep for Future Reference...
  • Page 2 WITH POSSIBILITIES! Thank you for choosing omtech! Your new CO ₂ laser engraving machine is intended for personal and professional use. When used under these instructions, it falls under the category of a CLASS 1 laser product. But it includes a CLASS 4 laser and some components remain extremely dangerous under improper and/or non- intended use.
  • Page 3 Welcome to the OMTech Community! For helpful hints and instructional videos, visit our Help Center or join our official laser group! If you encounter any issues with your engraver, please feel free to contact us. Our support team will respond ASAP to resolve your concerns.
  • Page 4 Content 1 Safety Information .................... 1 Disclaimer ..............................1 Symbol Guide ............................. 2 Safety Instruction Labels ......................... 3 1.4 General Safety Instructions ........................4 Laser Safety Instructions ......................... 5 1.6 Electrical Safety Instructions ........................7 Material Safety Instructions ........................8 Disposal Safety Instructions ........................
  • Page 5 5 Operation ......................47 Operation Overview ..........................45 5.2 Pre-Operation Preparation ........................46 5.2.1 Turning on the Machine ......................46 5.2.2 Preparing Material ........................47 5.2.3 Preparing the Engraving Pattern ..................... 47 5.3 Focusing ............................... 48 5.4 Engraving ..............................49 5.5 Wrapping-up ...............................
  • Page 6 Content 5.8.17 Functions ............................66 5.8.18 Resetting the Axes ........................66 5.8.19 Locking the Control Panel ......................67 5.8.20 Setting Passwords ........................67 5.8.21 Entering Passwords ........................68 5.8.22 Setting Jog Distance ........................68 5.8.23 Setting Laser Duration ........................ 69 5.8.24 Diagnosis ............................
  • Page 8 Read this disclaimer completely and carefully before proceeding with the rest of the manual content. As-Is This OMTech product is sold ‘as is’ and without any express or implied warranties, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
  • Page 9 1.2 Symbol Guide The following symbols are used on this machine’s labeling or in this manual: These items indicate an imminent hazard Protective eyewear should be worn that WILL result in death or severe injury if by anyone around this machine during not avoided.
  • Page 10 1 Safety Information 1.3 Safety Instruction Labels • Your device should come with instruction labels in the following locations: SH-G1390 1300*900mm 130W 110V USB-130D-U1 If any of these labels are missing, illegible, or becomes damaged, they must be replaced.
  • Page 11 1.4 General Safety Instructions • ALWAYS keep a fire extinguisher, water hose, or other flame retardant system nearby in case of accidents. Ensure that the local fire department’s phone number is clearly displayed nearby. In the case of a fire, cut electrical power before dousing the flame. Familiarize yourself with the correct range for your extinguisher before use.
  • Page 12 1 Safety Information 1.5 Laser Safety Instructions This machine complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019. When used in accordance with these instructions, it is a CLASS I laser product. However, the invisible engraving laser, the laser tube, and its electrical connections remain EXTREMELY dangerous.
  • Page 13 • DO NOT ever under ANY circumstances use this laser engraver if the water cooling system is not working properly. Always activate the water cooling system and visually confirm that water is flowing through the entire system before turning on the laser tube.
  • Page 14 1 Safety Information 1.6 Electrical Safety Instructions • ONLY use this device with a compatible and stable power supply with less than 5% fluctuation in its voltage. • DO NOT connect other devices to the same fuse, as the laser system will require its full amperage.
  • Page 15 1.7 Material Safety Instructions • Users of this laser engraving machine are responsible for confirming that the materials to be processed can withstand the heat of the laser and will not produce any emissions or byproducts either harmful to people nearby or in violation of local or national laws or regulations.
  • Page 16 1 Safety Information This machine CAN be safely used with the following materials: CAN be used Plastics • Acrylonitrile Butadiene Styrene (ABS) • Nylon (Polyamide, PA, etc.) • Polyethylene (PE) • High-Density Polyethylene (HDPE, PEHD, etc.) • Biaxially-oriented Polyethylene Terephthalate (BoPET, Mylar, Polyester, etc.) •...
  • Page 17 This machine CANNOT be used with THE FOLLOWING MATERIALS OR WITH ANY MATERIALS WHICH INCLUDE THEM: CAN NOT be used • Artificial Leather containing Hexavalent Chromium (Cr[VI]), due to its toxic fumes • Astatine, due to its toxic fumes • Beryllium Oxide, due to its toxic fumes •...
  • Page 18 2 Introduction 2.1 General Information This manual is the designated user guide for the installation, setup, safe operation, and maintenance of your cabinet laser engraver. It is divided into six chapters covering general information, safety instructions, installation steps, operation instructions, maintenance procedures, and contact information.
  • Page 19 2.3 Specifications Product Model SH-G1390 Power Supply AC 110–120 (V), 60 Hz Power Consumption 2500 W Rated Laser Power 2×130 W Expected Service Life at <40% / 40–70% / >70% Power 12,000 / 10,000 / 8,000 hr. Laser Wavelength 10,640 nm Diameter 2.75 in.
  • Page 20 2 Introduction 2.4 Package List...
  • Page 21 Item Qty. Power Cord Ground Wire USB Cable Ethernet Cable Laser Keys Door Keys USB Flash Drive with Engraving Software Included Ø 150 mm Exhaust Pipes Ø 150 mm Pipe Clamps A Set of Hex Wrenches Silicone Sealant Acrylic Focusing Tool Ceramic Testing Resistor Water Hoses Water Hose Clamps...
  • Page 22 3 Components 3.1 Main Parts Front Back...
  • Page 23 The cover provides access to the main bay for placing and retrieving materials, as Cover well as fixing the laser path alignment and other maintenance. Power to the laser is automatically cut when the cover is opened. The polycarbonate window is shielded to protect you and others from the laser and its Viewing Window reflection, allowing monitoring of the engraving process.
  • Page 24 3 Components Left Right...
  • Page 25 Left Top Access Door This door provides access to the main bay for work on the mirror and Y-axis rail. These doors open to allow larger pieces of material to be fed through the workbed. Pass-Through Doors Additional care must be taken to avoid seeing or suffering exposure to the laser beam and its reflection.
  • Page 26 3 Components 3.2 Laser Path The two CO ₂ -filled glass tubes are mounted on brackets and are immobile. Laser Tubes Their connection to the laser power supply is extremely high voltage and extremely dangerous. These adjustable-angle mirrors are fixed in place to transfer the engraving 1st Mirrors laser from the tube to the 2nd mirrors.
  • Page 27 3.3 Laser Head Moves along the Y-axis, with its movement controlled by limit X-Axis Rail switches. Transfers the laser from 2nd mirror to the focus lens. Can adjust its 3rd mirror angles. With a diameter of 18 mm, directs and focuses the laser beam to its Focus Lens point of contact with the engraving material.
  • Page 28 3 Components 3.4 Control Panel Front Right Returns the machine to the saved Automatically focuses the lens. default parameters. Opens the main menu. Starts or pauses the current job. Traces the outline of the current Manually fires the laser. design for sizing. Stops the current job.
  • Page 29 C o n t r o l s a r o t a r y a x i s o r Sets the starting point for the a u t o m a t i c f e e d w h e n o n e i s laser head.
  • Page 30 3 Components 3.5 Screen Display...
  • Page 31 Traces the processed file image during file preview display and Graphic Display Area processing. Displays the file number, speed, and maximum power of the Running Parameters current processing file. Displays the coordinate value of the current position of the laser Coordinates head.
  • Page 32 3 Components 3.6 Connection Inputs Back Right This port allows you to load and save designs and parameters USB Port directly onto the engraver. This port connects to your control computer and its engraving USB Cable Port software using any of its USB ports. This port connects to your control computer and its software Ethernet Port either directly or via the internet.
  • Page 33 This port connects to the dedicated grounding cable for safety Ground if applicable. 2nd Main Power Port This port connects to the 3-prong main power cable. These intakes provide the pressurized air for the machine’s Air Assist Intakes air assist. Periodically check its filter to keep it clear of any obstruction.
  • Page 34 2 Introduction 3.7 Electronics Bay Front Right This circuit board controls the engraving process, responding Mainboard to commands from your engraving software or the machine's control panel. X-Axis Driver This device moves the laser head along the X rail. Y-Axis Driver This device moves the X rail along the Y rail.
  • Page 35 3.8 Laser Power Supply Connects to the laser tube’s anode or positive end, providing high- High-Voltage Wire voltage current to power the laser. Mounting Holes Allows simple installation and removal. Digital Display Provides the real-time current value to the laser tube in milliamps. Laser Indicator Light Illuminates when current is being sent to the laser tube.
  • Page 36 4 Installation 4.1 Installation Overview A complete working system consists of the following parts: • A laser engraving cabinet The cabinet can use designs provided by the enclosed engraving software by direct or internet connection with your computer; it can also engrave designs loaded directly from a flash drive. •...
  • Page 37 Here is the process flow diagram for installation: Select a location Unpack your engraver 4.2 Selecting a Location 4.3 Unpacking Your Engraver (Page 31) (Page 31) Set up your Set up your exhaust system water cooling system 4.5 Installing the Exhaust System 4.4 Installing the Water Cooling System (Page 33) (Page 32)
  • Page 38 4 Installation 4.2 Selecting a Location The location should meet all of the following requirements: • The location meets all of the requirements mentioned in § 1 Safety Information on Page 1. • The location should be stable, level, dry, and climate-controlled to ensure an ambient temperature of 40 ℉...
  • Page 39 Open the top of the crate. 2. Carefully remove the packaging and foam insulation from the sides and set them aside. With at least one other person, use the two straps around the engraver to lift it out of the crate and move it to a sturdy table or countertop.
  • Page 40 4 Installation 4.5 Installing the Exhaust System This machine is equipped with two duct fans inside, you need to install the provided exhaust pipes directly onto the exhaust fans to use the machine. Firmly connect one of the engraver’s exhaust ports to the provided exhaust pipe by using one pipe clamp.
  • Page 41 4.6 Connecting to Power Supply Confirm that the labeling beside the power socket at the back of the engraver matches your local power supply. 2. Connect one end of the power cable to the power socket. 3. Plug the other end of the power cable into a grounded 3-prong outlet or into a surge protector rated over 2000 J that is itself connected to a grounded outlet.
  • Page 42 4 Installation 4.7 Setting Up Your Control Computer See the software manual for details on the requirements for the control computer. The control computer can be connected directly using the provided USB. The control computer should not be placed more than 15 feet (4.5 m) away to avoid possible interference with the signal on its line. A Windows-compatible copy of RDworks V8 is provided on the USB flash drive that came with your engraver.
  • Page 43 Click to tick the box as shown. Click “Modify”. Click “Test” in the dialogue box that shows up as shown. The connection is successful when the pop- up as shown shows up.
  • Page 44 4 Installation Click OK to confirm the connection and close the dialogue box. Click “Exit” to return to the home interface. 4.7.2 Lightburn Initiate Lightburn on your control computer and connect it to your engraver using the provided USB cable. Click “Device”...
  • Page 45 Click “Create Manually” in the pop-up that shows up. Choose “Ruida” and click “Next”.
  • Page 46 4 Installation Choose Serial/USB and then “Next”. Enter the circled engraver name and X- and Y-axis length. Click “Next”. SH-G1390 1300...
  • Page 47 Set the origin to “Rear Right” as shown and click “Next”. Confirm your configuration and click “Finish” to close the pop-up. SH-G1390 1300mm x 900mm...
  • Page 48 4 Installation Click the device drop list in the lower right corner and choose “SH-G1390”. The engraver is connected when the system shows “Ready”. SH-G1390 4.8 Initial Testing 4.8.1 Emergency Shutoff Because of the risk of fire and other hazards during engraving, this engraver includes a large and easy-to-reach emergency stop button near the control panel.
  • Page 49 4.8.2 Cover Shutoff (Interlock) Because of the risk of blindness, burns, and other injury from direct exposure to the invisible engraving beam, this device also shuts off the laser automatically when the protective cover is raised during operation. After ensuring that the emergency stop button works, you should also test that the cover shutoff works properly before conducting any other work on your machine.
  • Page 50 4 Installation 4.8.3 Water Shutoff Because of the danger posed by an uncooled laser tube, this engraver also shuts off the laser automatically when the water cooling system malfunctions. After ensuring that the emergency stop button and cover protection both work, you should also test that the water shutoff works properly before conducting any other work on your machine.
  • Page 51 4.8.5 Air Assist Your air assist should arrive preinstalled and correctly wired. Simply check that it is correctly configured and connected as shown. If any tubing or wiring needs to be reconnected, shut off all power to the machine (including by pressing the emergency stop) before adjusting anything.
  • Page 52 5 Operation 5.1 Operation Overview Operate this laser engraver only in accordance with all the instructions provided in this manual. Failure to follow these instructions can result in property damage and personal injury. Wear safety glasses during the entire test process! This section will address only some of the options and features provided by the operation software.
  • Page 53 5.2 Pre-Operation Preparation 5.2.1 Turning on the Machine Make sure the power supply is ok. 2. Turn on your water cooling system. 3. (Optional) Turn on your additional ventilation system (such as a dedicated purifier). 4. On the control panel, slightly rotate the emergency stop button counterclockwise until it pops up.
  • Page 54 5 Operation 5.2.2 Preparing Material Open the engraver’s cover. 2. Place a sample piece of your material on the workbed. The default location of the laser head’s zero position is at the top left corner of the workbed. This can be changed by moving either your design or the engraver’s origin position using the §...
  • Page 55 • To increase engraving depth, increase the amount of energy per unit area by increasing the laser’s power or the number of loops or by slowing down the speed parameter. Engraving too deep, however, reduces image quality, especially for coated materials. •...
  • Page 56 5 Operation 5.4 Engraving Press to engrave your design. Again, do not stare continuously at the laser even through the protective polycarbonate window. Watch for possible issues like sparks or fires, however, and be prepared to quickly extinguish a fire if necessary. Once the laser has stopped, open the cover and check that the engraved pattern is desired.
  • Page 57 2. Fully clean the workbed and check if the lens or any mirrors require cleaning. Use the bottom access door to remove, empty, clean, and replace the debris tray. Store everything neatly away. 3. For best results, lock the bottom access door and disconnect your laser engraver from its power supply between uses.
  • Page 58 5 Operation 5.7 Instructions for Specific Materials The following instructions are suggestions to help speed safe work with a range of materials. The user should research the specific safety and engraving requirements of their specific material to avoid the risk of fire, hazardous dust, corrosive and poisonous fumes, and other potential problems. Once the product is known to be safe or appropriate protective equipment has been set up, it can be helpful to engrave a test matrix of small boxes produced at various speed and power settings to discover the ideal settings for your design.
  • Page 59 5.7.4 Metal CO ₂ laser engravers should not be used for marking, engraving, or cutting metal. They are best suited for working coatings applied to a metal base, and care must be taken not to attempt work on the underlying metal itself. A variety of coatings specialized for CO ₂ engraving are available, and the user should follow the instructions provided as the parameters vary from product to product and metal to metal.
  • Page 60 5 Operation 5.7.8 Stone When engraving various kinds of stone, generally use moderate power and moderate to fast speed. As with ceramics and glass, be mindful of the dust created (especially for repetitive industrial applications) and take similar measures to ensure the safety of users and others in the work area. 5.7.9 Textiles When engraving textiles like cloth and fleece, generally use low power and fast speed.
  • Page 61 5.7.10 Wood As with rubber, there is a huge variety of woods and testing your specific material is essential to get the best results. In general, wood with consistent grain and coloring engraves more evenly. Knotted wood produces uneven effects, while resinous wood produces greater edge contrast. Some soft woods like balsa, cork, and pine engrave well (albeit with low contrast) at low or moderate power settings and high speed.
  • Page 62 5 Operation 5.8 Control Panel Instructions 5.8.1 Overview You can control your engraver directly from the built-in control panel, through a direct connection with your computer, or over the internet. For details on operating your engraving software, see its separate manual. The built-in control panel can operate the lasers manually or engrave designs loaded onto flash drives and external hard drives connected to the USB port on the right side of the cabinet.
  • Page 63 To load a design from a FAT16 or FAT32 formatted flash disk or external hard drive, press File and then select Udisk and Copy to Memory. Select the design in the File menu and then select Run. Various parameters can be adjusted using the console’s menus and submenus, including setting multiple origin points to engrave the same design on your material up to eight times in a single session.
  • Page 64 5 Operation 5.8.2 Setting Laser Speed Push Speed when the screen is on the main interface. The display will show: Press numbers and/or Backspace to set and modify the parameters. After modifying, press Enter to save the parameters. Press Esc to cancel the modification parameters.
  • Page 65 5.8.4 Adjusting Engraving Layers When the system is in completed or idle mode on the main interface, the layer information will be displayed in the Layer Parameter Area, as shown below: You can use the direction keys to select the layers.
  • Page 66 5 Operation 5.8.5 Main Menu Push Menu when the screen is on the main interface. The display will show: Select one and press Enter or Esc to return to the previous menu. 5.8.6 User Parameters In the menu interface, select User Parameters and press Enter. The display will show: At this point, the panel automatically reads the motherboard parameters and displays them, while displaying the progress of the read...
  • Page 67 If you need to modify the parameters, press Enter and select the first parameter in the parameter area, as shown in the following interface: At this point, you can press ▲ or ▼ to select a parameter and press number to modify the numerical parameters (such as Idle Speed), For non-numerical parameters (such as Scan Mode), when the parameter is selected, press Enter to...
  • Page 68 5 Operation 5.8.7 Vender Parameters In the menu interface, select Vender Parameters and press Enter. The display will show: The interface parameters of Y, Z, and U axes are the same as those of X-axis parameters. The operation and settings of the factory parameters are the same as the user parameters.
  • Page 69 5.8.8 Setting Origins In the menu interface, select Origin Setting and press Enter. The display will show: Press Enter to enable or disable the origin setting. To choose an origin location, press Enter and then Shift when hovering over an Origin option on the control panel. This will enable you to modify the X- and Y-axes of the origin using the direction keys.
  • Page 70 5 Operation 5.8.9 Backing Up Parameters In the menu interface, select Backup Factory Parameters and press Enter to backup current parameters. 5.8.10 Restoring Parameters In the menu interface, select Restore Factory Parameters and press Enter to restore the saved parameters. 5.8.11 Controller Settings Menu Select Controller Settings under the menu interface and press Enter.
  • Page 71 5.8.13 Setting the Screen Origin Select Screen Origin in the controller settings interface and press Enter. The display will show: The display screen’s origin position is set here, and different screen origin positions are selected to adjust the display graphics position in different X or Y coordinates.
  • Page 72 5 Operation 5.8.15 Setting the IP Address Select IP Setting in the controller setting interface and press Enter. The display will show: Press the direction keys to select a parameter, then press numbers to modify the parameter. After modification, select Write and press Enter to save your changes.
  • Page 73 5.8.17 Functions In the menu interface, select Functions and press Enter. The display will show: Select your choice and press Enter or Esc to return to the previous menu. 5.8.18 Resetting the Axes Select Axis Reset in the controller setting interface and press Enter. The display will show: Press the direction keys to select an entry and press Enter.
  • Page 74 5 Operation 5.8.19 Locking the Control Panel When the light blue cursor is on this item, press ENTER, and the following dialogue box will pop up: Password Setting Sets the password for the engraver. Locks the control panel, releasing it Key Lock when the correct password is entered.
  • Page 75 5.8.21 Entering Passwords When you enter certain interfaces or perform certain operations, you need to enter the password. The password interface is similar to that above: You can enter the password directly by pressing numbers or you can select a number or letter by pressing the direction keys, select by pressing Enter, and press Enter again after entering six characters.
  • Page 76 5 Operation 5.8.23 Setting Laser Duration Select Laser Setting in the functions menu and press Enter. The display will show: The operation method is the same as Manual setting. When Continue is selected, pushing Pulse will fire the laser until Pulse is released. When Manual is selected, pressing Pulse will fire the laser for a pre-determined amount of time, as shown.
  • Page 77 5.8.25 Laser Power Information Select Laser Power Info in the functions interface and press Enter. The display will show: When items 1, 2, 3, and 4 of the laser power supply are selected, press Enter to view the information of each power supply.
  • Page 78 5 Operation 5.8.26 File Menu Push File when the screen is on the main interface, the display will show: When this menu is selected, different memory files can be selected by using ▲ or ▼ . Use Enter to select a target memory file. Use to move the cursor left and right to other options.
  • Page 79 5.8.27 Clearing the Memory Select Memory Operation in the above interface and press Enter. The display will show: Clear All Count Clears the running times of every file in the memory. Delete All Files Deletes all files in memory. Format Memory Reformats the memory.
  • Page 80 5 Operation 5.8.28 Reformatting the Memory Select Format Memory in the above interface and press Enter. The display will show: Deletes all files in memory but allows them to be retrieved by using Format Speedily Restore Factory Parameters (under Menu) if they have previously been backed up.
  • Page 81 5.8.29 Using Flash Drives If Udisk is pressed, the display will show: Read Udisk Reads the file list in the Udisk. Copy to Memory Copies the target Udisk file to the memory. Delete Deletes the selected Udisk file.
  • Page 82 6 Maintenance • Adjustment, maintenance, and repair of the electrical components of this machine must be done ONLY by trained and skilled professionals to avoid fires and other malfunctions, including potential radiation exposure from damage to the laser components. Because specialized techniques are required for testing the electrical components of this marking system, it is recommended such testing only be done by the manufacturer, seller, or repair service.
  • Page 83 6.1 Maintenance Overview • The use of procedures other than those specified herein may result in hazardous laser radiation exposure. • Before any cleaning or maintenance work, always switch off the device and disconnect it from its power supply. • Always keep the system clean, as flammable debris in the working and exhaust areas constitutes a fire hazard.
  • Page 84 6 Maintenance 6.2 Cleaning 6.2.1 Cleaning the Main Bay and Engraver Cleaning Frequency: After each use • Disconnect the engraver from power before cleaning. • Completely wipe dry the surfaces after cleaning. • NEVER allow water to come into contact with the electronic elements. *Depending on what you’ve been engraving, you might need to clean the engraver more or less often.
  • Page 85 6.2.2 Cleaning the Water System See your water cooling system’s manual for reference to ensure that the water used remains cool, clean, and pure. 6.2.3 Cleaning the Focus Lens The lens has a durable coating and won’t be damaged by correct and careful cleaning. You should check the lens and the 3rd mirror daily and clean them if there is any debris or haze on their surface.
  • Page 86 6 Maintenance Detaching the Focus Lens Move the engraving table to a distance of approximately 4 inches (10 cm) under the lens holder. ≈ 4 inches (10 cm) ≈ 4 inches (10 cm) 2. Move the laser head into the center of the workbed and put a cloth under the lens holder so that the lens will not be damaged if it accidentally falls from its holder.
  • Page 87 4. Remove the red laser by detaching its bolt. 5. Remove the laser guide connection by rotating it toward you and loosen it. The lens holder should be detached. Lens Holder 6. Remove the nozzle by rotating it toward you. 7.
  • Page 88 6 Maintenance Cleaning the Focus Lens and Its O-Ring Examine the lens surface, remove coarse dust as well as possible by blowing air onto the lens surface and, if necessary, clean it with the lens cleaning liquid and lens tissue or cloth as below. a.
  • Page 89 6.2.4 Cleaning the Mirrors The mirrors should be similarly cleaned if there is any debris or haze on their surface. Otherwise, your laser will be less efficient and could have permanent damage on the mirrors. Cleaning Frequency: Once a week, after each use Tools Needed: •...
  • Page 90 6 Maintenance Mirror Name Mirror Location Cleaning Method In the back left of the 1st Mirror machine beyond the • Avoid press hard enough to grind far end of the Y axis any debris or cause scratching. On the Y axis at the 2nd Mirror •...
  • Page 91 6.2.5 Cleaning the Exhaust System Check and clean the exhaust pipes and fans. The rate of dust accumulation on the exhaust fan and pipe will vary depending on the materials processed and the working environment’s air quality. Cleaning Frequency: Weekly Tools Needed: •...
  • Page 92 6 Maintenance 6.3 Air Assist Your air assist should arrive preinstalled and correctly wired. Simply check that it is correctly configured and connected every month. If any tubing or wiring needs to be reconnected, shut off all power to the machine (including by pressing the emergency stop) before adjusting anything. Check that its air intake filter is in place, clean, and not obstructed by any nearby objects.
  • Page 93 6.4 Laser Path Alignment Having a perfectly aligned laser path is paramount to your engraver’s overall performance. Each of the pro-line series went through a complete beam alignment before shipping. Upon first arrival and about once a week during normal operation, however, it is recommended that the alignment be checked.
  • Page 94 6 Maintenance Place a piece of tape at each stage of the laser path. DO NOT place the tape directly onto the mirror. 2. Turn on the machine. 3. Set the Max. Power (not Min.) parameter to 15% or lower. Any higher percentage will cause the laser to ignite the testing tape instead of marking it.
  • Page 95 4. Press Pulse to manually fire the laser and observe if the laser mark is centered on the tape as below. If so, then the laser tube is aligned with the 1st Mirror; if not, continue to step 5. You should be able to see a small mark on the tape. If it is not noticeable, press Pulse again.
  • Page 96 6 Maintenance 6.4.2 1st Mirror Alignment • Wear safety goggles during the entire aligning process. • Avoid attaching the tape directly to any of the mirrors. • Less than 15% of the maximum power (not Min.) should be sufficient to leave a clear mark without setting the testing tape on fire.
  • Page 97 4. Adjust 1st Mirror’s set setscrews accordingly. a. Loosen the nut on the setscrew. b. Slightly turn the setscrew either clockwise or counterclockwise. Setscrew Lower Beam Raise Beam Move Beam Left Lower Beam Right • Each screw adjusts a different position or angle. •...
  • Page 98 6 Maintenance 6.4.3 2nd Mirror Alignment • Wear safety goggles during the entire aligning process. • Avoid attaching the tape directly to the mirror. • Less than 15% of the maximum power (not Min.) should be sufficient to leave a clear mark without setting the testing tape on fire.
  • Page 99 6.4.4 3rd mirror Alignment • Wear safety goggles during the entire aligning process. • Avoid attaching the tape directly to the mirror. • Less than 15% of the maximum power (not Min.) should be sufficient to leave a clear mark without setting the testing tape on fire. •...
  • Page 100 6 Maintenance 6.5 Lubrication 6.5.1 Rails Lubrication Frequency: Every two weeks Tools Needed: • Cotton cloth • White lithium grease Disconnect the engraver from power. 2. Gently move the laser head out of the way. 3. Wipe away all dust and debris along the X and Y axis rails with a dry cotton cloth until they are shiny and clean.
  • Page 101 6.5.2 Workbed Elevation Bolts Lubrication Frequency: Every two weeks Tools Needed: • Cotton cloth • White lithium grease KEEP YOUR HAND CLEAR OF THE MOVING WORKBED WHILE APPLYING GREASE. Disconnect the engraver from power. 2. Open the rear access door to access the ball screws. 3.
  • Page 102 6 Maintenance 6.6 Parts Replacement • Be sure only to use identical or compatible replacement parts with this engraver. Contact your vendor or our technicians if you have any questions about fitment. Using incompatible components is highly dangerous and waives all the manufacturer’s liability for any damage or injury caused.
  • Page 103 7 Troubleshooting • Adjustment, maintenance, and repair of the electrical components of this cutter must be done ONLY by trained and skilled professionals to avoid fires and other malfunctions, including potential radiation exposure from damage to the laser components. Because specialized techniques are required for testing the electrical components of this marking system, it is recommended such testing only be done by the manufacturer, seller, or repair service.
