5 Control Panel Instructions

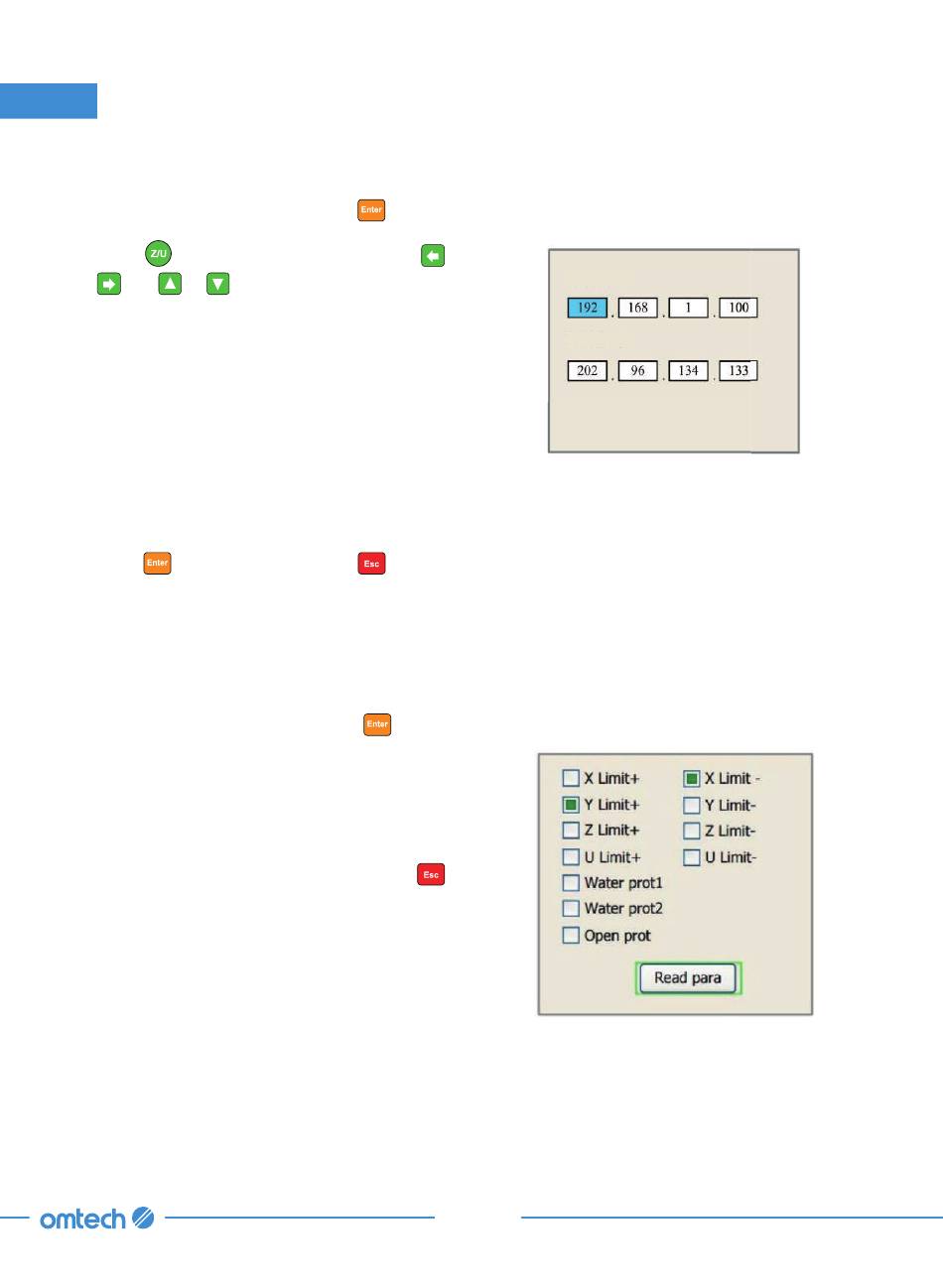

5.4.11 Setting the Machine's IP Address

When IP Setup+ is selected, press
Press to select an item, and push or
and or to change the parameters. The
default address of the engraver is 192.168.1.100.
If this is already in use on your local network, use
192.168.1 for the first three sections and choose
a unique value for the last section. Typically, any
value from 2–252 except 47 should be OK but
avoid values already being used by your other
networked devices. Direct connection of the
machine to the public internet risks unauthorized
use and is not recommended. If you wish to
provide it anyway, you will need to register and
use a unique public TCP/IP address.
Press to save the changes or
changes and return to the previous menu.

5.4.12 Diagnostic Tools

When Diagnoses is selected, press
This interface contains input/output information
of the system's hardware. Press Read Para.
to access hardware information. When the
hardware signal is triggered, the small box to the
left of the corresponding item will be displayed
in green, otherwise it will be gray. Press
return to the previous menu.
and the display will show:
or
IP address:
Gatewaya ddress:
to discard
and the display will show:
to
69
