2 Introduction

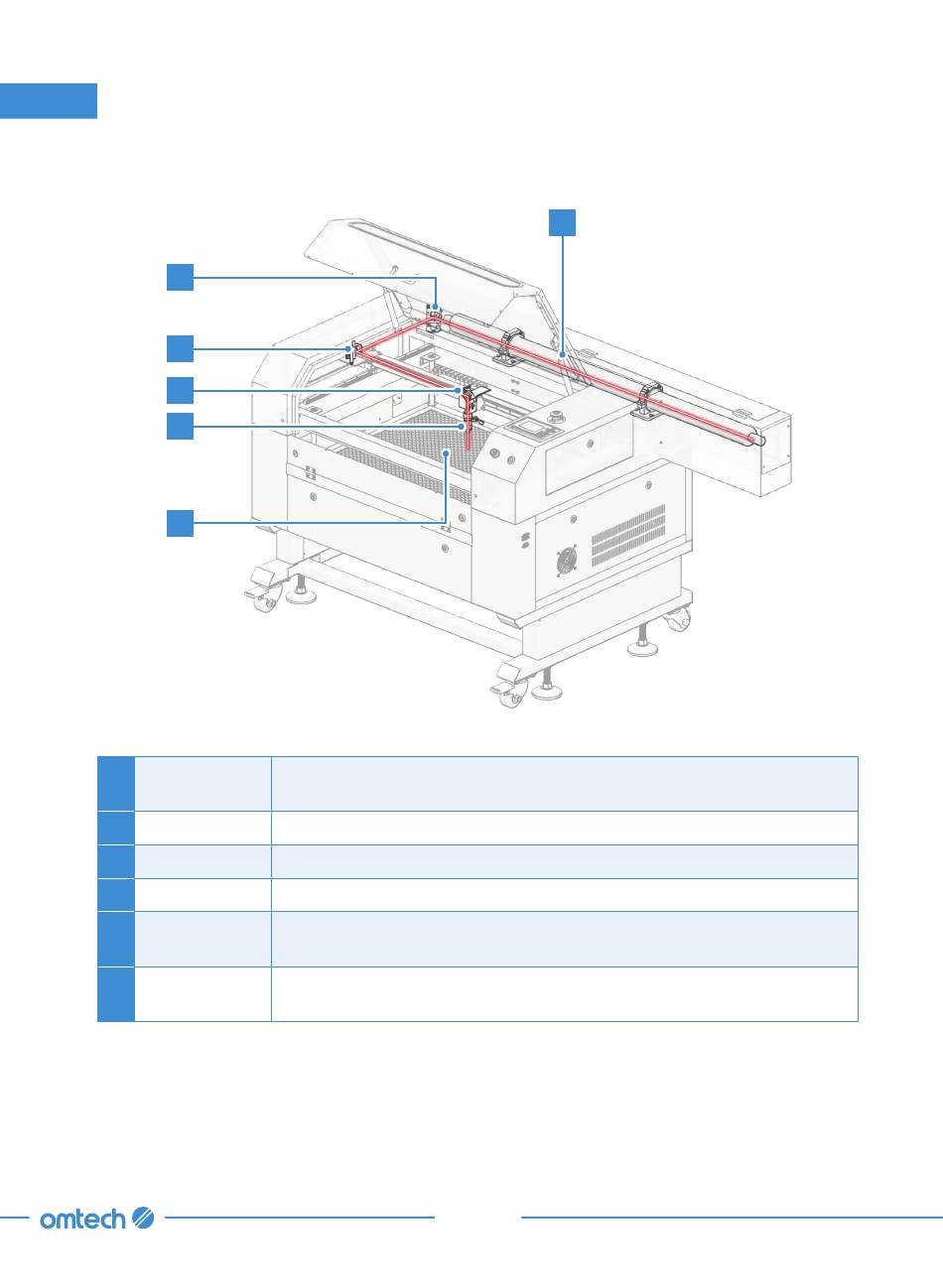

2.4.4 Laser Path

B
C
D
E
F
A Laser Tube
B 1st Mirror
C 2nd Mirror
3rd Mirror
D
E Focus Lens
F Workbed
Mounted on brackets and immobile, it produces the laser. Its connection with
the laser power supply is extremely high voltage and extremely dangerous.
Transfers the invisible engraving laser from the tube to the 2nd mirror.
Moves with the X-axis rail to allow the laser beam to travel along the left Y axis.
Moves with the laser head to allow the laser beam to travel along the X axis.
Directs and focuses the laser to the material. For the best effect, it should
be at the correct focal length from the upper surface of the material.
Can be adjusted in height to fit thinner and thicker materials, as well as
adjusted between the aluminum and honeycomb tables for different projects.
A
