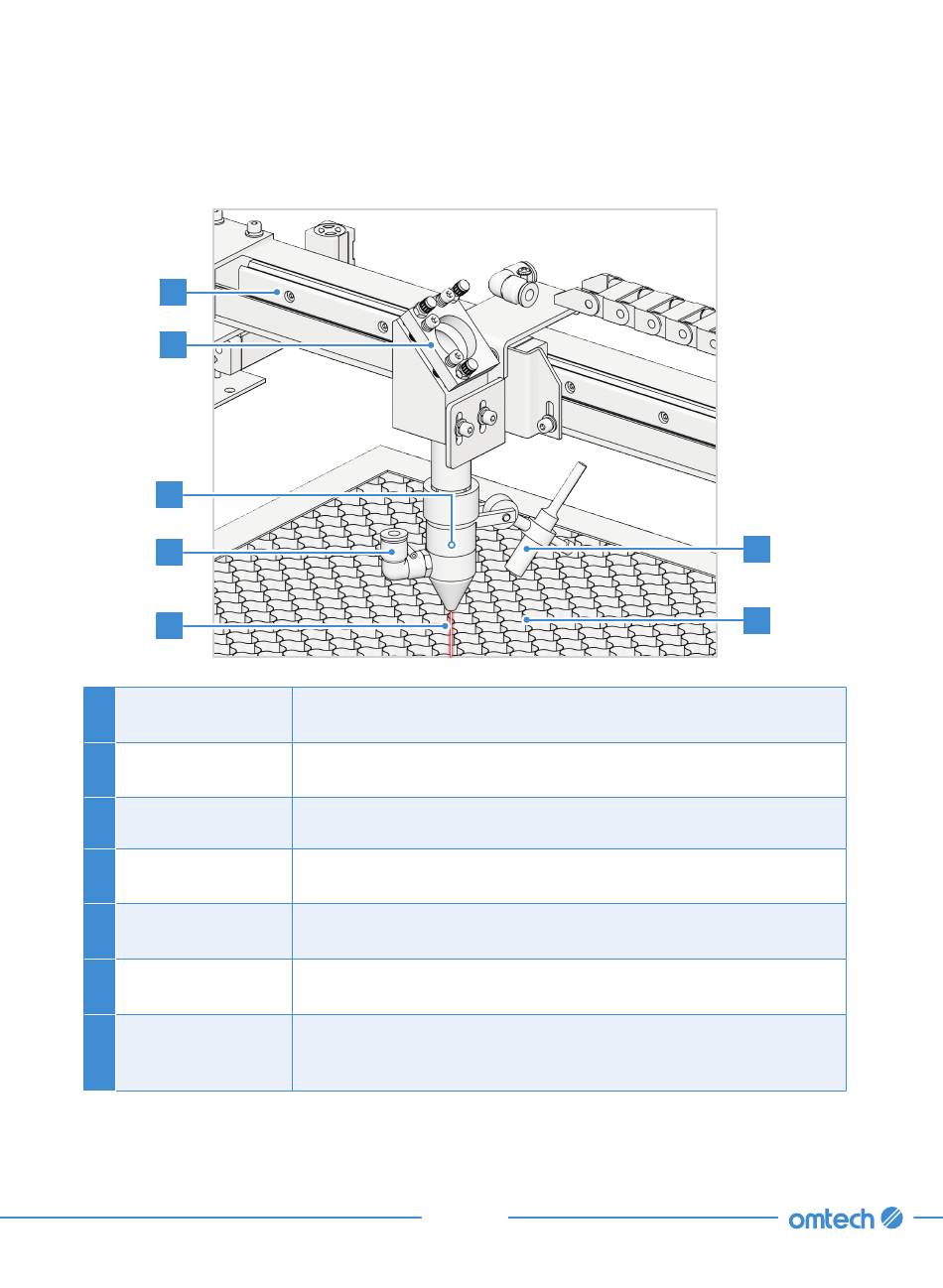

2.4.5 Laser Head

A
B
D
E
F
A X Axis Rail
3rd mirror
B
C Red Dot Pointer
D Focus Lens
E Air Assist
F Laser
Workbed
G
Moves along the Y axis, with its movement controlled by limit
switches.
Transfers the laser from 2nd mirror to the focus lens. Can adjust its
angles.
Helps you see the exact position of the invisible engraving laser.
With a diameter of 18 mm, directs and focuses the laser beam to its
point of contact with the engraving material.
Blows pressurized air to kill sparks and blow away gas and debris as
you engrave.
The engraving laser itself is invisible but highly dangerous, thus avoid
any direct exposure to your skin or eyes.
Holds the target material, moves the material up and down. You
can use the provided focal length ruler to get the correct height for
perfect focus for any thickness of material.
20
