V20241127

LYF-20BW/30BW/50W | Fiber

Laser Marking Machine

User Manual

Read Carefully Before Use

Keep for Future Reference

Need help?

Do you have a question about the LYF-20BW and is the answer not in the manual?

Questions and answers

Summary of Contents for Omtech LYF-20BW

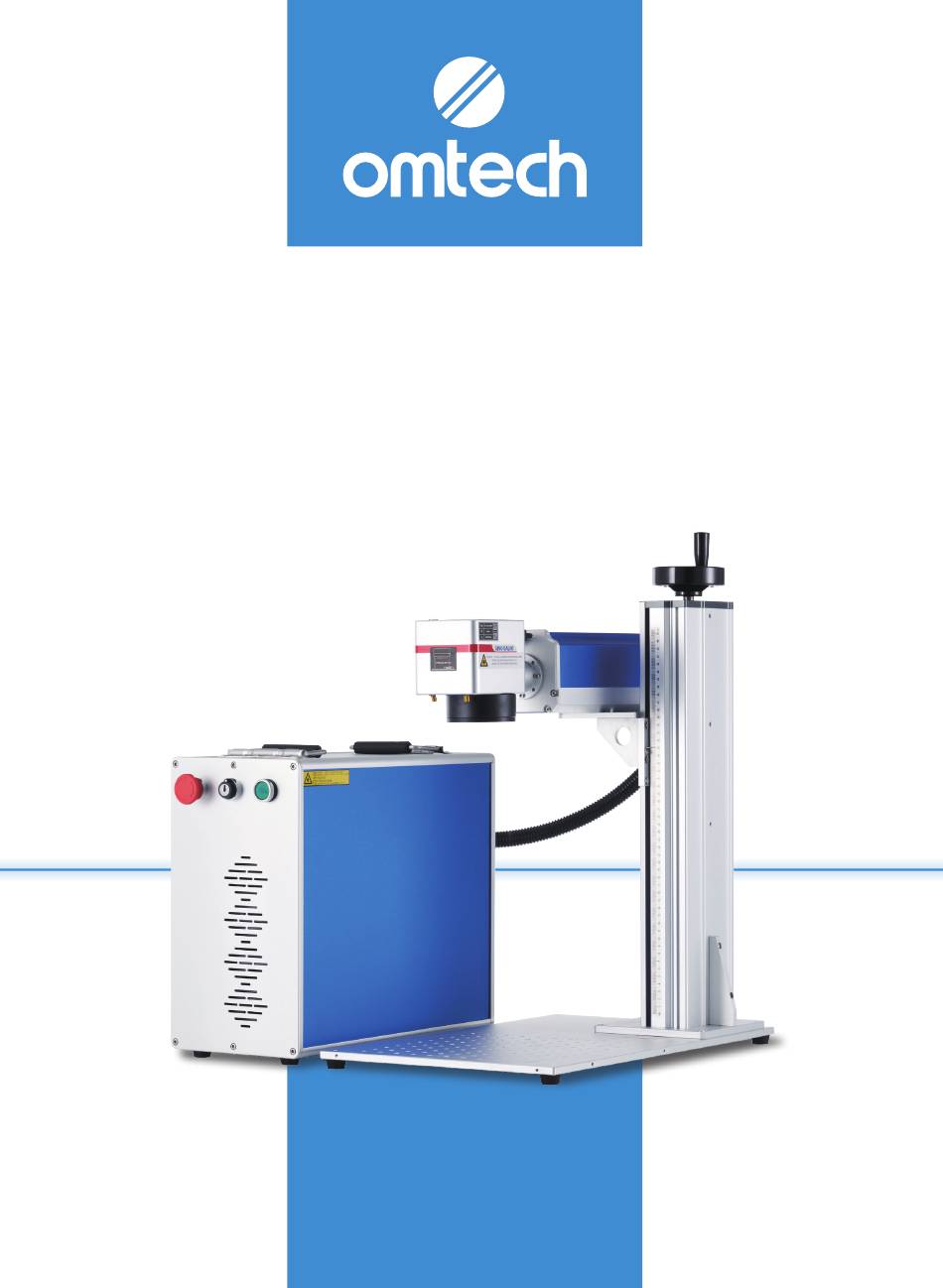

Page 1 V20241127 LYF-20BW/30BW/50W | Fiber Laser Marking Machine User Manual Read Carefully Before Use Keep for Future Reference...
Page 2 BEAMING WITH POSSIBILITIES! Thank you for choosing our laser equipment! This fiber laser marking machine is intended for personal and professional use. Read this manual carefully before operation. It covers the details of correct installation, adjustment, maintenance, and—most importantly—safe operation of your new laser. It is intended to be used in conjunction with the manual for its engraving software, as the program not only provides image design but also serves as the main interface for the laser settings and machine controls.
Page 3 Welcome to the OMTech Community! For helpful hints and instructional videos, visit our Help Center or join our official laser group! If you encounter any issues with your engraver, please feel free to contact us. Our support team will respond ASAP to resolve your concerns.
Page 4 Contents 1 Safety Information .................... 1 Disclaimer ..............................1 Symbol Guide ............................. 2 General Safety Instructions ........................3 1.4 Laser Safety Instructions ......................... 4 Electrical Safety Instructions ........................5 1.6 Material Safety Instructions ........................6 Disposal Safety Instructions ........................8 2 Introduction ......................
Page 5 5.3 Rotary Axis Processing ..........................35 5.3.1 Installing the Rotary Axis ......................35 5.3.2 Instructions for EZCad ........................ 36 5.3.3 Instructions for Lightburn ......................37 5.3.4 Finishing-up............................ 43 5.3.5 Uninstalling the Rotary Axis ...................... 43 5.4 Instructions for Specific Materials ......................44 5.4.1 Metals ..............................
Page 6 Read this disclaimer completely and carefully before proceeding with the rest of the manual content. As-Is This OMTech product is sold ‘as is’ and without any express or implied warranties, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
Page 7 1.2 Symbol Guide The following symbols are used on this machine’s labeling or in this manual: These items present a risk of serious property damage or personal injury. These items address similarly serious concerns about the laser beam. These items address similarly serious concerns about electrical components. These items address similarly serious concerns about fire hazards.
Page 8 1 Safety Information 1.3 General Safety Instructions • Your engraver should come with instruction labels in the following locations: If any of these labels is missing, illegible, or damaged, it must be replaced. • Use this laser marking device only in accordance with all applicable local and national laws and regulations.
Page 9 • DO NOT leave this device unattended during operation. Observe the device throughout operation and, if anything seems to be operating strangely, immediately cut off ALL power to the machine and contact either our customer service or your dedicated repair service. Similarly, ensure the device is FULLY turned off in the correct order after each use.
Page 10 1 Safety Information • NEVER attempt to view the laser directly without protective eyewear. Always wear safety goggles or glasses designed to filter the specific wavelength of your engraver’s laser with an optical density (OD) of 5+. As even seemingly matte materials can produce harmful reflected beams, care should be taken to keep anyone without protective eyewear from observing the machine during operation.
Page 11 • ONLY use this device with one hand at a time. The laser is powered by an extremely high voltage connection and placing two hands on the machine at one time during operation has the potential to create a closed circuit with the human body, resulting in electrical shock. •...
Page 12 1 Safety Information This machine CANNOT be used with the following materials or with any materials which include them: • Artificial Leather containing Hexavalent Chromium (Cr[VI]), due to its toxic fumes • Astatine, due to its toxic fumes • Beryllium Oxide, due to its toxic fumes •...
Page 13 1.7 Disposal Safety Instructions Electrical products should not be disposed of with household products. In the EU and UK, according to the European Directive 2012/19/EU for the disposal of electrical and electronic equipment and its implementation in national laws, used electrical products must be collected separately and disposed of at the collection points provided for this purpose.
Page 14 2 Introduction 2.1 General Information This manual is the designated user guide for the installation, setup, safe operation, and maintenance of your fiber laser marking machine. It is divided into several chapters covering general information, safety instructions, installation steps, operation instructions, maintenance instructions, and contact information.
Page 15 2.3 Specifications Model LYF-20BW LYF-30BW LYF-50W Input Power 110–120 (V), 60 Hz Rated Power 20 W 30 W 50 W Total Machine Power Not Exceeding 800 W Expected Service Life 100,000 hr. Laser Wavelength 1064 nm Laser Frequency 30–60 (kHz) 40–60 (kHz)
Page 16 2 Introduction 2.4 Package List Item Qty. Item Qty. Control Cabinet Rotary Axis Port Adapter Support Column Bolt Worktable Hex Wrench Laser Arm Support Column Bolt Main Power Cable Tape Measure USB Cable Steel Ruler Foot Pedal with Cable Protective Eyewear Laser Maker Key Monitor Bracket USB Drive with Software and Driver...
Page 17 3 Components 3.1 Main Parts H o u s e s t h e f i b e r l a s e r s o u rce, t h e m a i n b o a rd , a n d va r i o u s Control Cabinet connections, controlling the operation of the laser marking system.
Page 18 3 Components 3.2 Connection Ports Laser Cable Port Transmits the laser beam from its source to the galvo lens. USB Port Connects the machine to your control computer. If you do not install a protective cover, connect to the provided Remote Control remote control terminal.
Page 19 3.3 Power Buttons Stops the machine instantly by pressing the button down during operation; turning it clockwise releases the button. Due to risks of fire Emergency Stop and other hazards during engraving, this engraver includes a large and easy-to-reach emergency stop button on the control panel. Activates the mainboard inside the control cabinet and the galvo lens Scan Head head inside the laser arm with your key.
Page 20 3 Components 3.4 Software Main Interface This laser marking machine is controlled by the EZCad software, which must be installed on an applicable computer to direct the laser. Some important features include the following parameters and controls. View Tool Bar Command Tool Bar Object List...
Page 21 Specifies how many times the laser beam will repeat its path, with more Loop Count loops creating greater contrast in the marked image. Specifies the speed of the beam in millimeters per second, with greater Speed speed creating less contrast in the marked image. Specifies the % of the machine’s rated power that will be used, with greater power creating greater contrast.
Page 22 4 Installation 4.1 Installation Overview A complete working system consists of the fiber laser source, the laser arm with the galvanometer lens, a computer (not included) with engraving software (included), all applicable connection cables, a support column and a worktable. Users can also configure other additional accessories (such as a rotary axis) to suit their needs.
Page 23 4.3 Electrical Grounding • DO NOT use with an ungrounded 3-to-2 prong adapter. The machine’s grounding should be checked regularly for any damage to the line or loose connections. • Poor grounding WILL cause equipment failure and create a serious electrical shock hazard.
Page 24 4 Installation 4.4 Assembly • Use only the hardware, wiring, and power sources that came with or are compatible with this machine. Queries may be directed to the dealer or manufacturer of such equipment. Assembling equipment that your machine is not designed to work with can lead to poor performance, shortened service time, increased maintenance costs, property damage, and personal injury.
Page 25 3. Turn the knob on top of the support column to adjust the height of the laser arm to about 24 cm, as marked on the column’s ruler. This will position the lens to be nearly in focus with most common materials and users just need to make minor adjustments during later operation. 4.
Page 26 4 Installation 4.5 Installing the Software 4.5.1 Preparing a Control Computer Prepare a control computer. See the software EZCad manual in the USB for details on the requirements for the control computer. The control computer should not be placed more than 15 feet (4.5 m) away from the laser marking machine to avoid possible interference with the signal in its line.
Page 27 5. Choose Browse my computer for drivers in the popped-up window, click Browse, and select the accessible route as below: • USB Driver-V4: The USB disk location → USB Driver folder → USB Driver-V4 → win7_32/ win7_64 → OK → Next. win7_32 is used for 32-bit Windows 7 and above;...
Page 28 4 Installation Then, a window showing “Windows has successfully updated your drivers” will pop up and BJJCZ-Laser Mark Control Board V4 [USB] or Laser Mark Control Board V2 [USB] will appear in the Device Manager. If you encounter an issue of “Windows cannot verify the digital signature” §7.4 Troubleshoot the USB LMC when installing the USB Driver-V4 driver, see V4 Driver Install Problem...
Page 29 2. Open the USB file, and copy and paste the Software folder onto your computer, which helps avoid the risk of data loss. 3. Open the EzCad2.exe application program by double-clicking it in the Software folder. You can use EZCad 2.14.16 now.
Page 30 4 Installation 4.5.4 Configuring Parameters Start the EZCad software. Click File → System parameter to check and make sure the Workspace settings are the same as that on the picture “File_system Parameter_workspace. jpg” in the USB drive. 2. If the rotary axis is used, click Laser → Rotate TextMark to check and make sure the rotary settings are the same as that on the picture “Laser-Rotate TextMark-param.jpg”...
Page 31 5 Operation 5.1 Operation Overview • ALWAYS operate this machine following all the instructions provided herein. Performance of procedures other than those specified herein may result in property damage and personal injury. • DO NOT use this machine for purposes not specified herein. This section will address only some of the options and features provided by the operation software EZCad for your reference.
Page 32 5 Operation Check that the power cable is connected to the power supply. 2. Remove the lens head cover. 3. Turn on the laser marker by activating its power in order: a. Turn the emergency stop button to release it and power the mainboard. b.
Page 33 5.2.2 Focusing Place the test material on the processing area and ensure the red dots are displayed on the test material. • Make sure the material can be engraved by this machine. See §1.6 Material Safety Instructions (Page 6) for details. •...
Page 34 5 Operation Method 2: Using the Ruler a. Use the provided ruler to measure the distance from the center line of the scanning head to the surface of the test material. b. Rotate the focus adjustment knob clockwise to lower the scanning head or rotate it counterclockwise to raise the scanning head until the height on the ruler is the same as the value marked on the lens head, which varies among different models.
Page 35 Loading Bitmap Graphics Click to draw a bitmap file. 2. Choose the file folder. 3. Select the file type. 4. Select the picture you want to mark. 5. Open the picture and import the canvas. 6. Set picture parameters. a. Select the picture. b.
Page 36 5 Operation Loading Vector Graphics Click to draw a vector file. 2. Choose the file folder. 3. Select the file type. 4. Select the image to be marked. 5. Open the image and import the canvas. 6. Set vector graph parameters. a.
Page 37 Creating Text Click the text tool create text. 2. Click the left mouse button on the canvas and “TEXT” appears. 3. Modify the text. 4. Click Apply. The text content entered is displayed in the canvas. 5. Set the text size. 6.
Page 38 5 Operation Marking Settings • Red(F1): Marks the frame of the object to be marked, with no laser emitted during the process. It is used to indicate the processing area and facilitate locating the workpiece. This function is available on models with a red light guider. Pressing F1 on the keyboard to activates this function.
Page 39 5.2.5 Stop and Resume During the engraving process, if an unexpected situation occurs, press the emergency stop button immediately to halt the machine’s operation. To resume normal operation: Release the emergency stop. 2. Resume operation following the normal operational sequence. 5.2.6 Engraving Replace the test material with the actual material.
Page 40 5 Operation 5.3 Rotary Axis Processing 5.3.1 Installing the Rotary Axis Install the rotary axis on the worktable and place a piece of sample material on the rotary axis. 2. Connect the 4-receptacle rotary cable to the rotary axis port on the back of the main tower.
Page 41 5.3.2 Instructions for EZCad Cancel Apply Click Laser → Rotate TextMark in EZCad to check and make sure the rotary settings are the same as that on the picture “Laser-Rotate TextMark-param.jpg” in the USB drive. 2. Set other rotary parameters. For detailed instructions, see the EZCad software manual.
Page 42 5 Operation 5.3.3 Instructions for Lightburn This section uses the rotary chuck as an example. Enabling the Rotary Axis Enable the rotary axis function on your engraving software. 2. Run your engraver and control computer. 3. Choose Rotary Setup or press Ctrl+Shift+R on your engraving software. 4.
Page 43 For certain engravers, this parameter could be mm per rotation, this manual uses steps per rotation for example. For this OMTech Fiber laser engraver, use 12800 directly. 2. Stick some masking tape, one piece on the chuck as close to the mounting as possible, and the...
Page 44 5 Operation 3. Mark the tape. These marks indicate how much the chuck has rotated. 4. Click Test and observe how much the chuck has rotated. 5. Adjust the steps per rotation value. • If it has rotated beyond one rotation, decrease the steps per rotation value. •...
Page 45 Rotary Engraving Measure and fill in the Object Diameter parameter or the Circumference parameter of the object. As you fill in one parameter, the other parameter will automatically update. • To measure Object Diameter, you can use either a ruler or a caliper, but a caliper provides an accurate reading.
Page 46 5 Operation 2. Ensure that you are using the horizontal scan option in layer settings by setting Scan Angle to 0. Using vertical scanning changes the chuck’s directions frequently, which can cause jerking and your object might jump out of position.
Page 47 3. Create/upload your design via the software, adjusting any necessary parameters for the best result, for example, the size of the pattern, and the speed and power of the engraving. If you notice that the engraved pattern appears mirrored, stop the engraving, turn on the Mirror Output to Rotary option on the Rotary Setup window, and try again.
Page 48 5 Operation 5.3.4 Finishing-up §5.2.7 Finishing-up on Page for detailed instructions. 5.3.5 Uninstalling the Rotary Axis When you need to engrave without the rotary chuck, do as follows to detach the rotary chuck: Unplug the engraver. 2. Unplug and remove the rotary chuck away. 3.
Page 49 5.4 Instructions for Specific Materials When engraving a new material, it can be helpful to engrave a test matrix of small boxes produced with various speed, power, and frequency settings to home in on the exact effect that you are looking for.
Page 50 6 Maintenance Unless otherwise specified, ONLY perform adjustment and maintenance of this device when the power is turned off and the power supply has been disconnected. ONLY allow trained and skilled professionals to modify or disassemble this device. For maintenance not listed in this manual, visit the Maintenance section on our website omtechlaser.com where real-time updates are available to assist you.
Page 51 7 Troubleshooting This chapter covers common issues and solutions. For problems not listed in this manual, visit the Troubleshooting section on our website omtechlaser.com where real- time updates are available to assist you.
Page 52 7 Troubleshooting 7.1 Common Problems Problems Solutions Make sure you are using an authentic window system; if not, use another computer loaded with the right software. The driver installation Use a different data cable. failure The computer port or its board has a problem; try with another computer.
Page 53 Problems Solutions Click the practical center button. The picture or text should be in the center of the canvas. Nothing displayed on canvas board when importing text or picture Reduce Speed to less than 1000, and adjust Start TC(US) to -2000 or less.
Page 54 7 Troubleshooting 7.2 Wrong Focal Length Despite the Merged Red Dots Generally, the right focal length is reached when the two red dots emitted by the red light guider merges into one. However, this indicator of focal length is subject to the changes in laser sources and field lenses.
Page 55 5. Click to import the TEXT for testing, use the default parameters, and tick Continuous Part. 6. Press Red in EZCad or hitting F1 on the keyboard to ensure it’ll mark on the test material. 7. Click Mark in EZCad or press F2 on the keyboard. The laser should be in continuous marking state.
Page 56 7 Troubleshooting 7.3 Inconsistency Problems The size of the preview and the mark is inconsistent with the software display, or the preview and the mark are not horizontal or vertical but slanted. • Check and fix the parameters. See §4.5.4 Configuring Parameters on Page 25.
Page 57 The red-light preview is inconsistent with the actual engraving position. • Check and fix the parameters. See §4.5.4 Configuring Parameters on Page 25. • If the problem remains, fix the parameters. a. Select Parameter (F3) → Other → Red light pointer. b.
Page 58 7 Troubleshooting 7.4 Troubleshoot the USB LMC V4 Driver Install Problem If you encounter an issue of “Windows cannot verify the digital signature” when installing the USB LMC V4 driver as below, it indicates you need to disable the driver signature enforcement to troubleshoot the issue.
Page 59 4. Proceed to install the unsigned driver. During the installation procedure, Windows will inform you that it can’t verify the publisher of this driver software. At this point, ignore the warning message and choose lnstall this driver software anyway to complete the installation. Normally, the installation should be done without errors now.
Page 60 7 Troubleshooting 4. After restart, select Disable driver signature enforcement and press Enter. If you see Startup Settings as below, press F7 or 7 on your keyboard to select the Disable driver signature enforcement option. 5. Proceed to install the unsigned driver. During the installation, Windows will inform you that it can’t verify the publisher of this driver software.
Page 62 Scan for the latest user manual LYF-20BW/30BW/50W | Fiber Laser Marking Machine User Manual F M M - 2 R W 2 - U 3 F M M - 3 R W 2 - U 4 F M M - 5 R W 2 - U 3 R e v. 2 7 N o v. 2 0 2 4...
