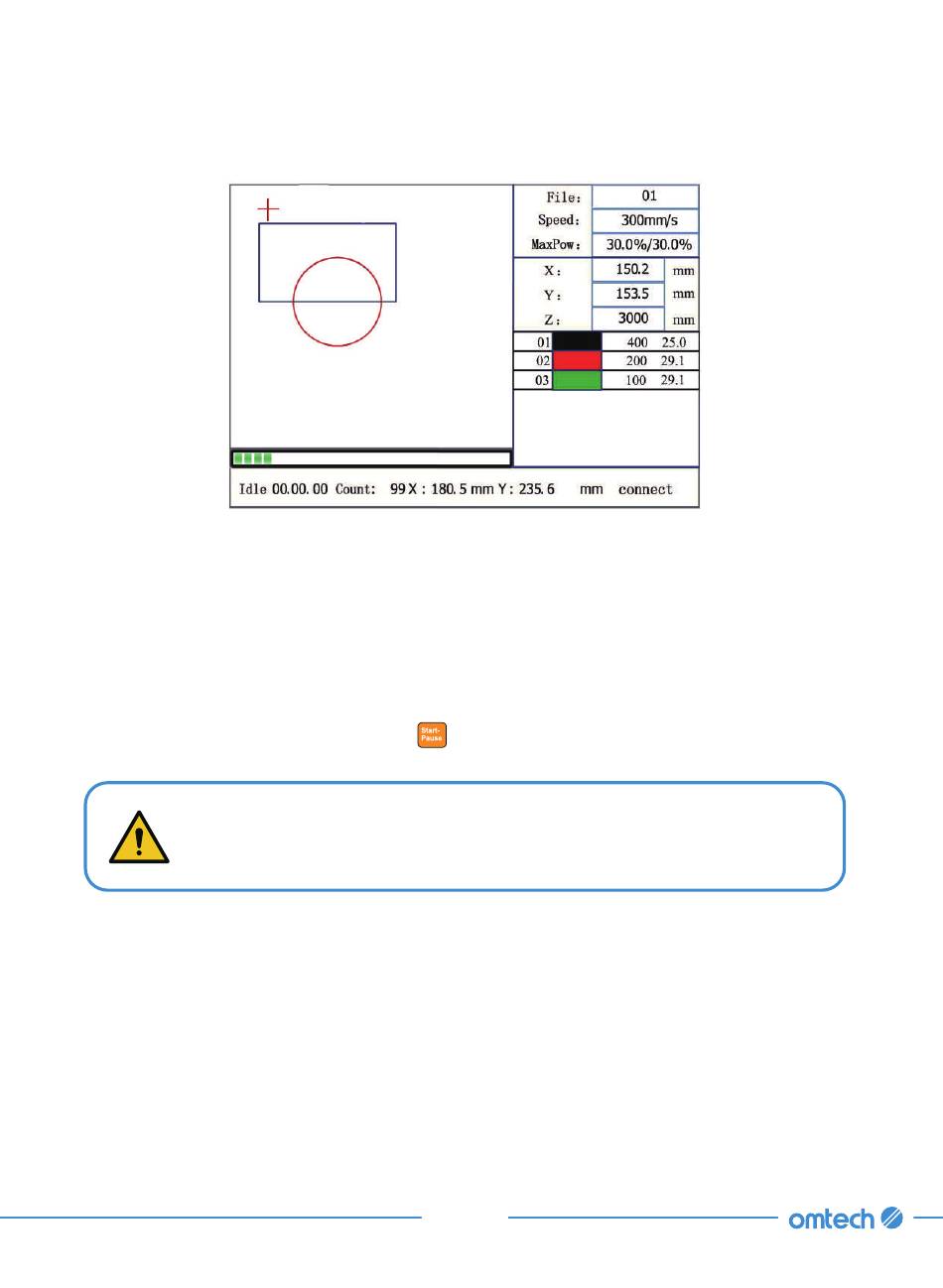

When running a design from the control console, this will be the main display. The design should
appear in the top left corner and its name and the current speed and power settings on the top right.
The position of the laser head relative to the workbed appears as the X (horizontal) and Y (vertical)
coordinates. The Z coordinate shows the elevation of the workbed itself although it can only be
automatically adjusted if a motorized lift is installed. The U coordinate can be configured to control
rotary axes or an automatic feed if either is installed. Below them are the layers with notes about their
separate speeds in mm/s and their maximum power as a % of your machine's rated power. The batch
count on the lower left keeps track of the number of times the current design has been engraved in
a single session. Like the button says, press
engraving when needed.
If there is ever an emergency situation such as a fire, do not use the control panel
to pause or stop the engraving. Hit the emergency stop button immediately.
to start engraving your loaded pattern and to pause
