6.6 Lubrication

6.6.1

Rail

Lubrication Frequency: Every two weeks
Tools Needed:
• Cotton cloth
• White lithium grease
1. Disconnect the engraver from power.
2. Gently move the laser head out of the way.
3. Wipe away all dust and debris along the X and Y axis rails with a dry cotton cloth until they are
shiny and clean. Do the same to the Z axis screws.
4. Lubricate both the rails and screws with white lithium grease.
5. Gently move the laser head and X axis to coat the lubricant evenly along both rails.
6. Raise and lower the workbed to distribute the lubricant evenly along the screws.

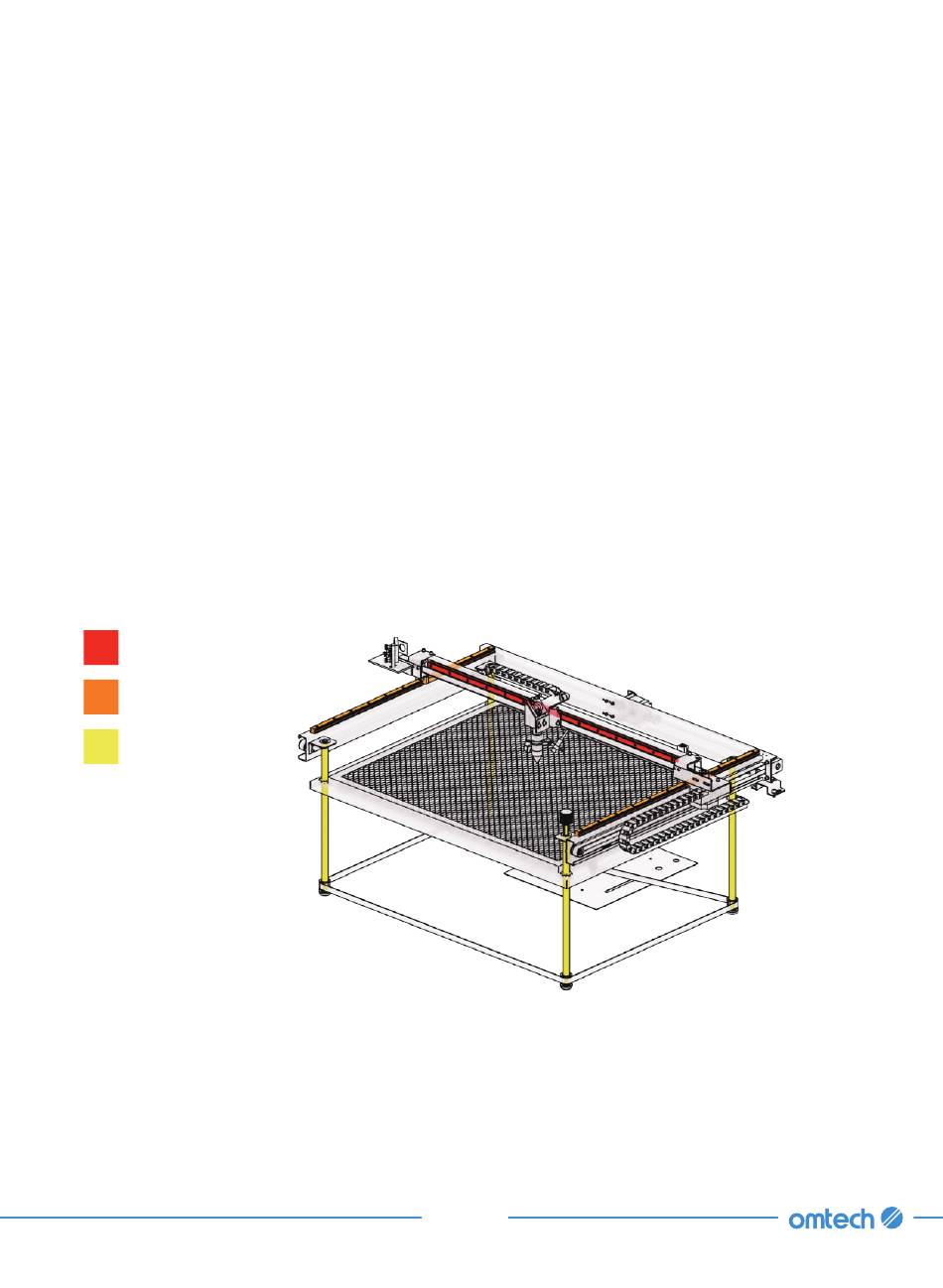

X-Axis Rail
Y-Axis Rails
Workbed Rail
