3 Installation
If the outlet is not grounded, use the grounding cable and connect it as follows:
a. Fasten the near end of the grounding cable to the ground port at the back of the engraver.
b. Connect the far end of the cable to a single metal rod driven at least 8 feet (2.5 m) deep or
to two separate metal rods driven at least 4 feet (1.2 m) deep into soil located at least 5 feet
(1.5 m) from the machine.
Ground
Solid Bar

3.6 Setting Up Your Control Computer

Front
Right
See the software manual for details on the requirements for the control computer.The control
computer can be connected in any of the two ways:
• Via the provided USB cable (via the port USB Cable to PC).
In this way, the control computer is directly connected to the engraver, so it should not be placed
more than 15 feet (4.5 m) away in order to avoid possible interference to the signal on its line.
• Via the provided Ethernet cable (via the port Ethernet Cable) using the internet.
The control computer should not be placed more than 15 feet (4.5 m) away to
avoid possible interference with the signal on its line.

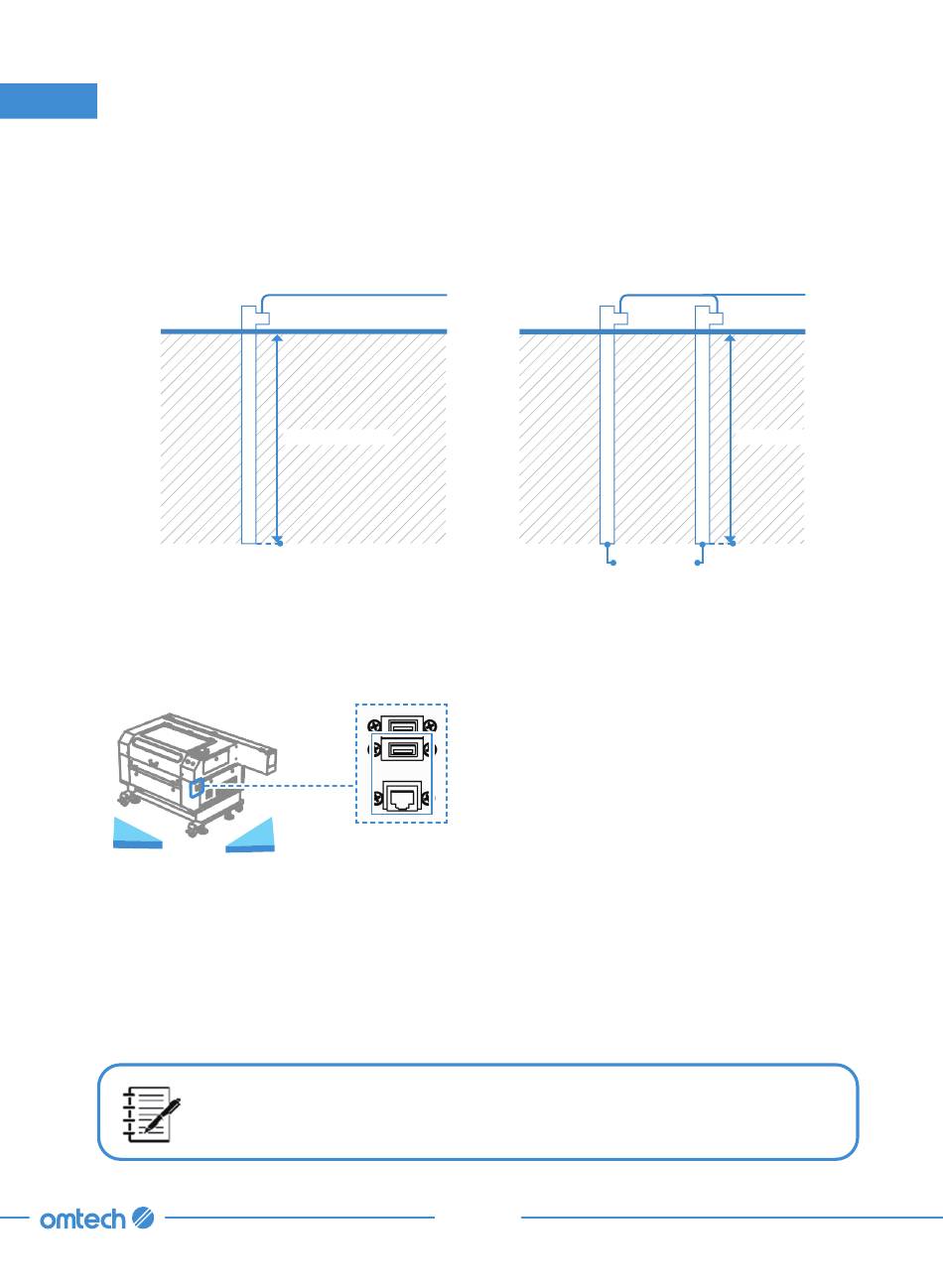

Grounding Cable
8 Feet (2.5 m)
Ground
Solid Bars
37
Grounding Cable
4 Feet (1.2 m)
