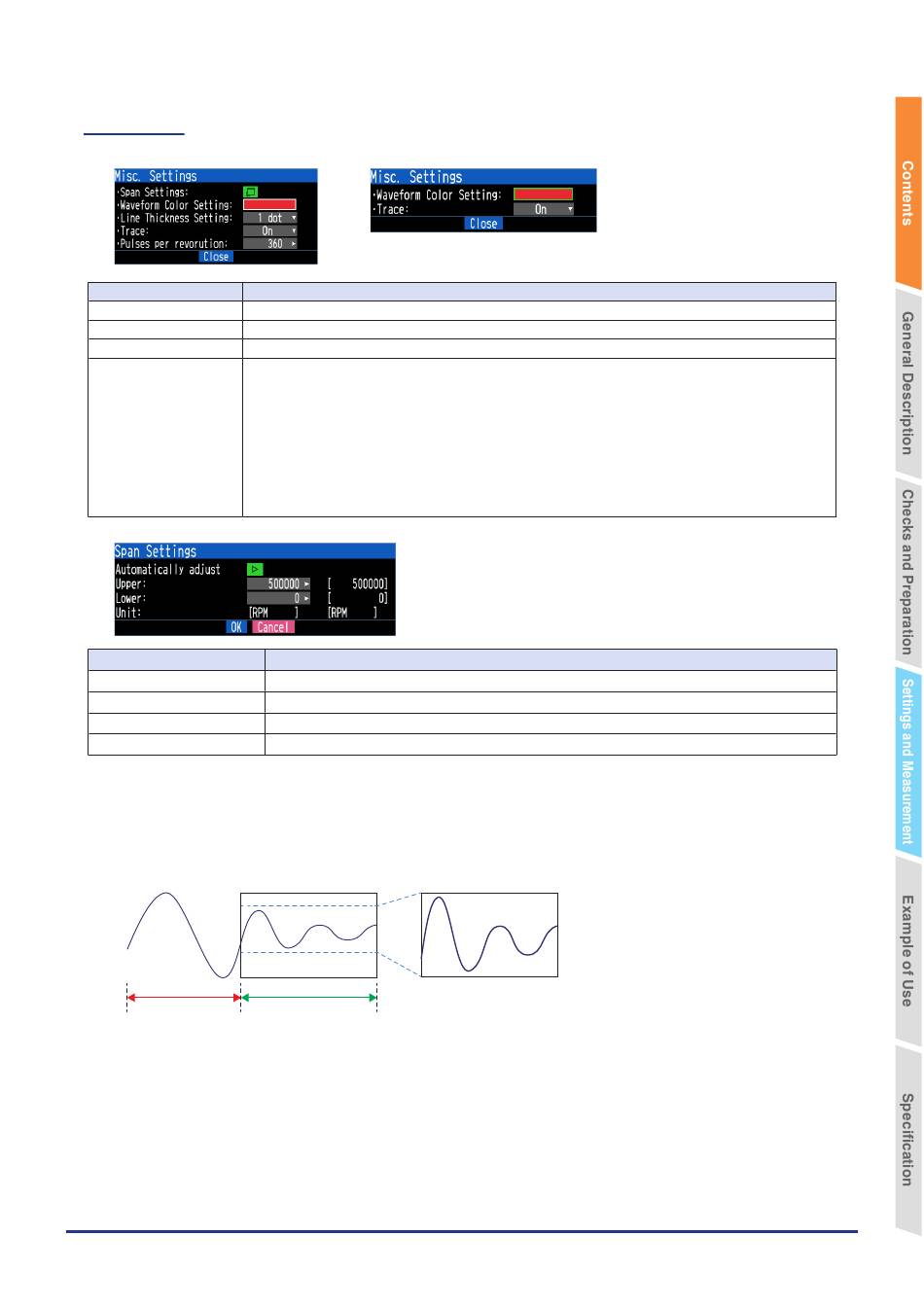

1-12. Misc.
<For Pulse>
Setting
Waveform Color Setting 0 to 31 for each of red, green, blue (RGB)
Line Thickness Setting 1 to 8 dots
Trace This is used to set the waveform display.
Pulses per revolution 1 to 10000
When setting the pulse input to the number of revolutions, set the number of pulses per revolution.
As the number of pulses per revolution set here is 1 revolution, the number of revolutions per minute (RPM)
is calculated. For example, if "100" is set, 1 rotation is judged when 100 pulses have been input.
<Calculation formula>
Number of revolutions (RPM) = Pulse input frequency ÷ Number of pulses per revolution x 60 (1 minute)
<Example>
Number of pulses per revolution: 100 (1 rotation is judged when 100 pulses have been input.)
Pulse input: 1000 Hz (1000 pulses per sec.)
Number of revolutions: 600 RPM (600 revolutions per 1 minute)
Selection item
Automatically adjustment
Upper limit
Lower limit
Unit
<Regarding automatic span adjustment>
The target of automatic adjustment is the range of the waveform displayed on the screen when automatic adjustment is
executed.
Automatic adjustment does not follow continuously. The span is determined by the data on the screen at the moment
when automatic adjustment is executed.
Out-of-screen display
(Automatic adjustment (Automatic adjustment
not applied)
<For Logic>
Automatically adjust the span value based on the displayed data.
Set the span upper limit.
Set the span lower limit.
Set the unit.
In screen display
range)
