Operations available during capture
SPAN/POSITION/TRACE change
Screen display mode switch
Replay while capturing
Save to device
Setting check
Time axis change

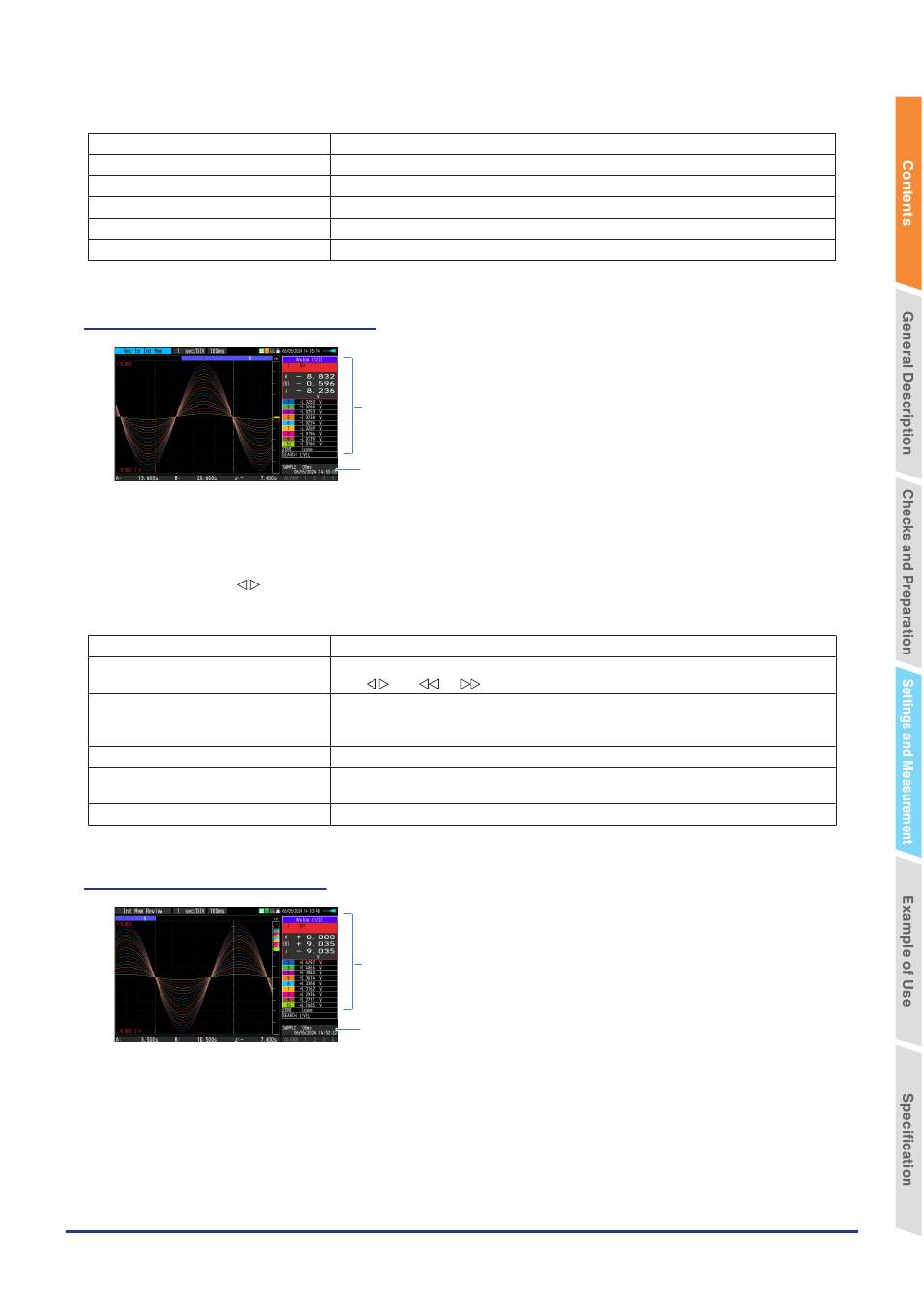

3. Data replaying during capture
The captured data while capturing can be replayed by pressing the [REVIEW] key.
You can switch between the 1-screen (replayed data) and 2-screens (replayed data during data capture) by pressing
the [DISPLAY] key.
Use the Direction keys ( ) to move the cursor and captured data to check digital values.
Main operations to replay during data capture
Operation in the menu during data replay
Cursor movement
Save to device
Screen copy
Switching between screen
Time axis change
4. Captured data replaying
Displays the captured data.
Press the [ENTER] key to open the Span/Position/Trace settings and make settings.
Used to change the screen mode with the [DISPLAY] key.
The [REVIEW] key is used to replay captured data in two windows at the same time.
While data is replayed in two windows, the [FILE] key is used to save data to a device.
Display the setting information with the [MENU] key.
Change the time axis with the [TIME/DIV] key.
Displays the voltage at a point
indicated by Cursor A or B or the
selected cursor.
Displays the measurement time at
a point indicated by Cursor A or B
or the selected cursor.
Use the [MENU] key to move the cursor and search data.
You can switch between cursors A and B using the [CURSOR] key.
The " " or " ", " " keys are used to move the cursors.
The save to the device can be performed from the [FILE] key.
(During capturing, you can save the captured data up to the present or the data of the
section between the A and B cursors in a separate file.)
Copy the screen with the [FILE] key.
You can switch between 1-screen and 2-screens during data replaying by pressing the
[DISPLAY] key.
Change the time axis with the [TIME/DIV] key.
Displays the voltage at a point
indicated by Cursor A or B or the
selected cursor.
Displays the measurement time at
a point indicated by Cursor A or B
or the selected cursor.
