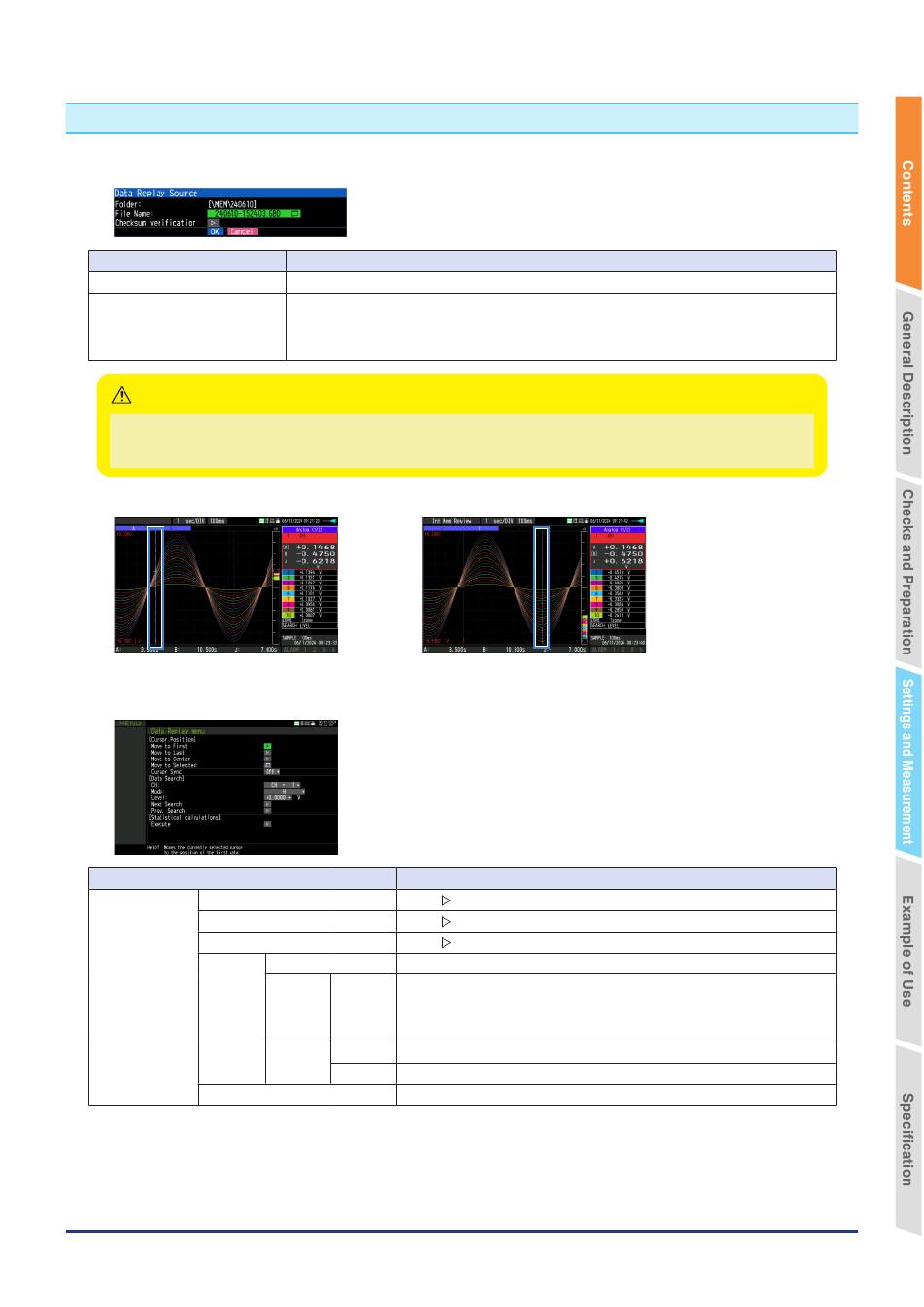

11. Data replay menu
Select the data you want to replay from the "Data replay source" by pressing the [REVIEW] key and replay the captured data.
<Select replay data source>
Select items
File
Check data corruption
CAUTION
For CSV-formatted data, only the data captured by this GL860 can be replayed.
"Checksum verification" is displayed only when selecting a GBD file to which a checksum is attached.
For how to add checksums, refer to "2-7. Data corruption check function" in "2. DATA settings".
<When using the replay data and cursor A>
Cursor A
Pressing the [MENU] key during capturing/replaying displays the Replaying menu.
Setting
Cursor Position Move to First
Move to Last
Move to Center
Move to
Selected
Cursor Synch
Specify the file in the capture destination (save destination).
Check if the captured file is damaged.
The data corruption results are displayed in a dialog.
When the data is not corrupted: "Data is not corrupted" is displayed.
When the data is corrupted: "Data is corrupted" is displayed.
<When using the replay data and cursor B>
Select
Select
Select
Method: Position, Time
Position Position 0 to end of data
For example, if the sampling interval is 100 ms, the capture destination is the built-
in RAM, and the number of capture points is 10000, settings up to 999.9ms are
available.
Time Date Date from the start to the end of the data
Time Time from the start to the end of the data
Off, On
3-103
Chapter 3 Settings and Measurement
Description
Cursor B
Selections available
and press the ENTER key to execute.
and press the ENTER key to execute.
and press the ENTER key to execute.
