2.9

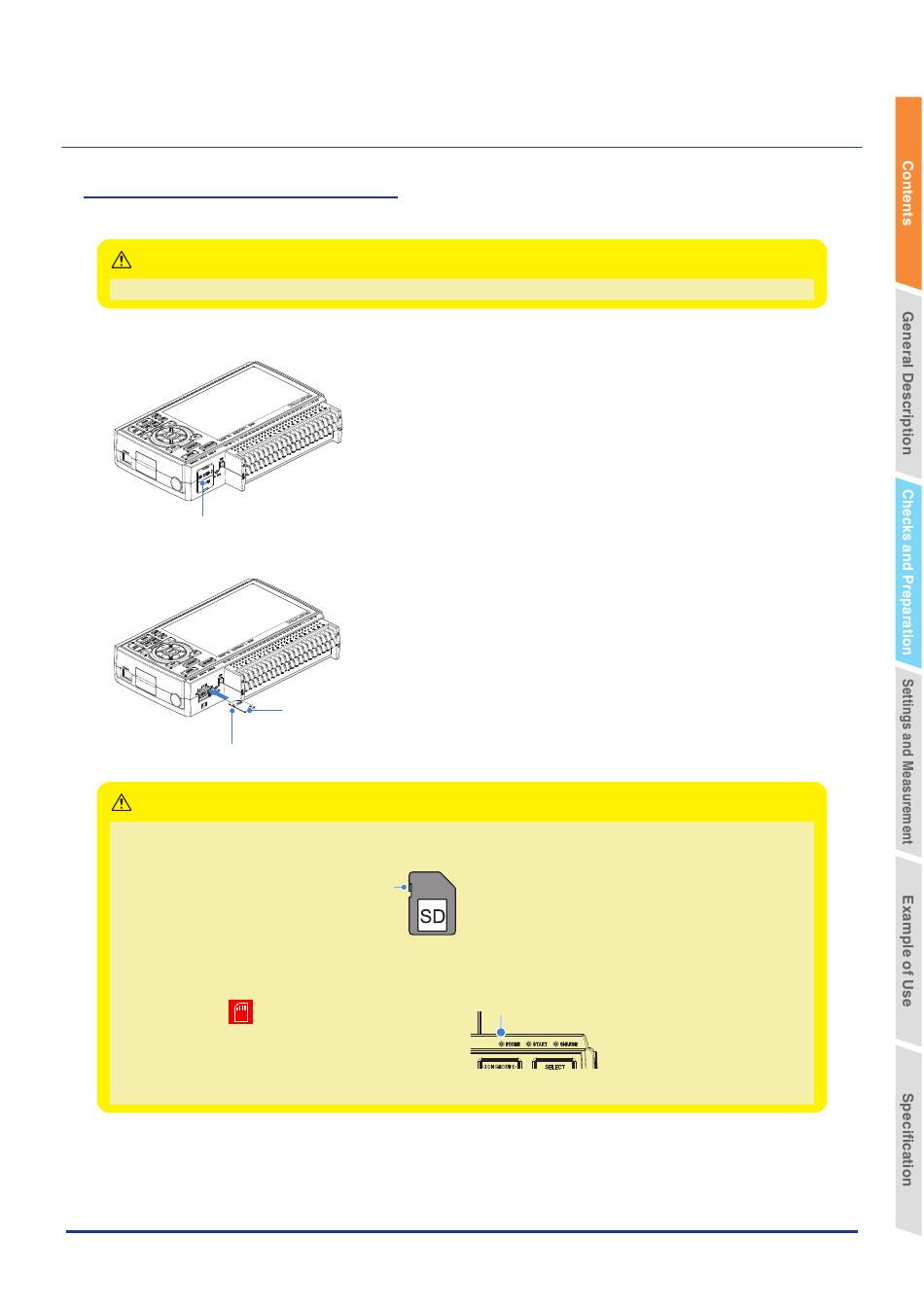

Mounting the SD Memory Card
How to insert the SD memory card
Insert the SD memory card into the SD CARD slot.
CAUTION
When the optional wireless LAN unit is installed, the SD memory card cannot be inserted.
1.
Remove the SD CARD protective cover.
SD CARD Protective cover
2.
Insert the SD memory card until it clicks and is locked.
* Make sure that the SD memory card is not locked.
CAUTION
•
When inserting an SD CARD, make sure that the LOCK notch is not in the LOCK (write-protected) state. If locked, the
data cannot be captured.
•
Please do not remove the SD memory card while accessing to the SD memory card (Device Access display is displayed
in "red" and POWER LED is blinking.). The captured data may be damaged.
•
When inserting the large capacity SD memory card, it may take some time to recognize it.
SD memory card
Do not lock the SD CARD
LOCK
Device access display screen
CHAPTER 2 Checks and Preparation
POWER (flashing)
