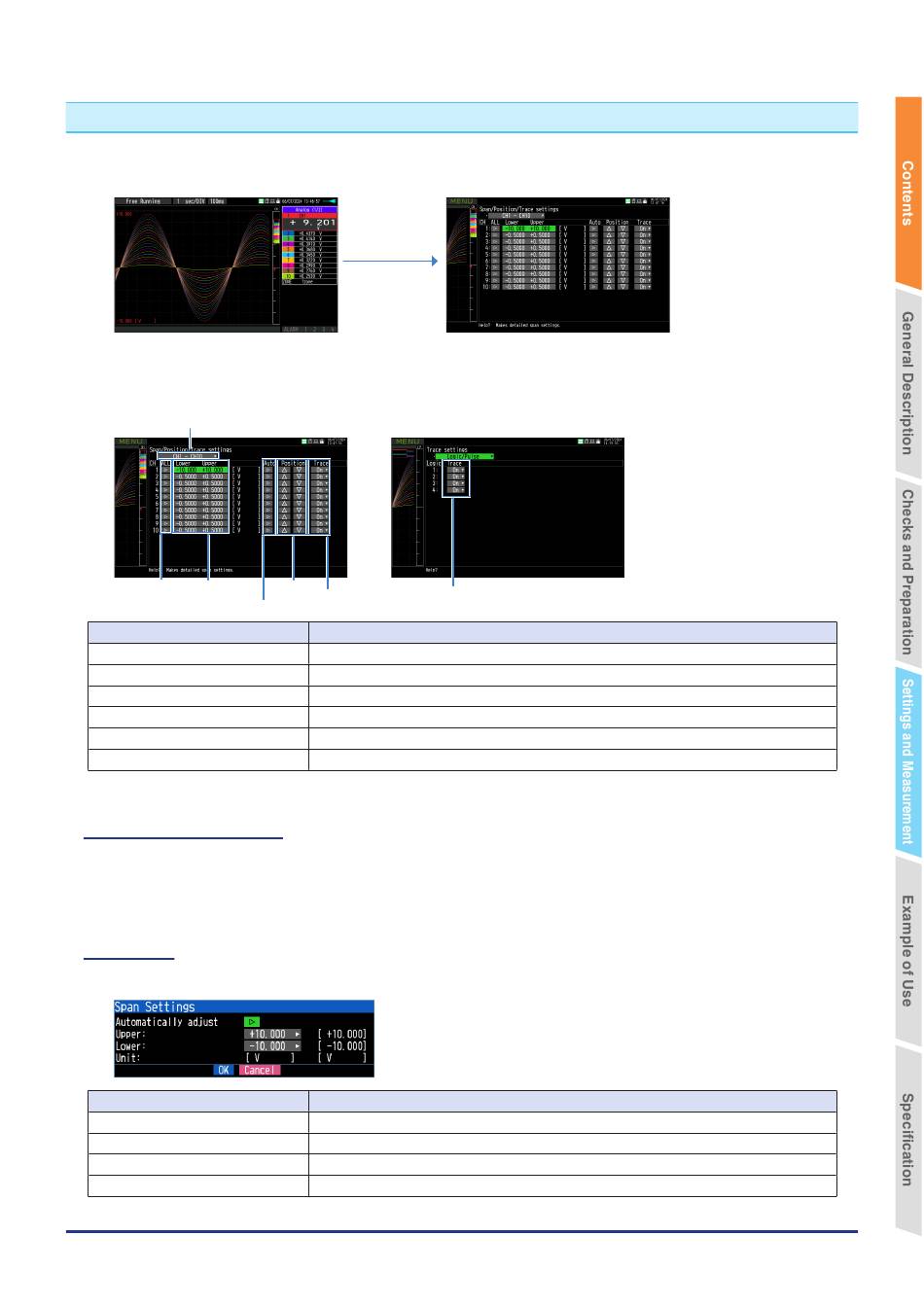

7. Span/Position/Trace settings
When the [ENTER] key is pressed on the waveform display screen during Free-running, capturing, replaying while
capturing, or replay, the "Span/Position/Trace" setting screen is displayed.
The span of the active CH that was selected when the [ENTER] key was just pressed is initially selected.
<For Analog, Pulse, Calculation>
Display switching
ALL Span settings
Auto span adjustment
Selection item
Display switching
ALL
Span settings
Auto span adjustment
Position
Trace
7-1. Display switching
Switch between analog, logic/pulse, and calculation.
Analog is always selectable.
Logic/Pulse and calculation cannot be selected unless there is the enabled CH in the settings.
7-2. Span
Make span settings of analog, pulse, and calculation.
Selection item
Automatically adjust
Upper limit
Lower limit
Unit
[ENTER] key
<For Logic>
Position
Trace
Trace
Switch between analog, logic/pulse, and calculation.
Execute the batch change mode for settings.
Set the upper/lower limit (span) of the waveform display.
Execute the auto span adjustment.
Execute the position move.
Off, On
Automatically adjust the span value based on the displayed data.
Set the span upper limit.
Set the lower span limit.
Set the unit.
3-90
Chapter 3 Settings and Measurement
