Capturing procedure
We briefly describe the preparation, setup and capturing procedures for data capturing.
Here we take voltage and temperature measurements as an example.
Item
Capturing purpose
Target measuring point
Thermocouple
Voltage range
Sampling interval
Data saving destination
Trigger
1. Preparation
Prepare for capturing.
1.
Connect measurement object 1 to the 1CH terminal. (Voltage)
2.
Connect measurement object 2 to the 2CH terminal. (Temperature)
3.
Connect to AC power.
4.
Turn on the power.
Measurement
object
5.
Wait at least 30 minutes for the GL860 to warm up.
(Warm-up is required when performing thermocouple measurements.)

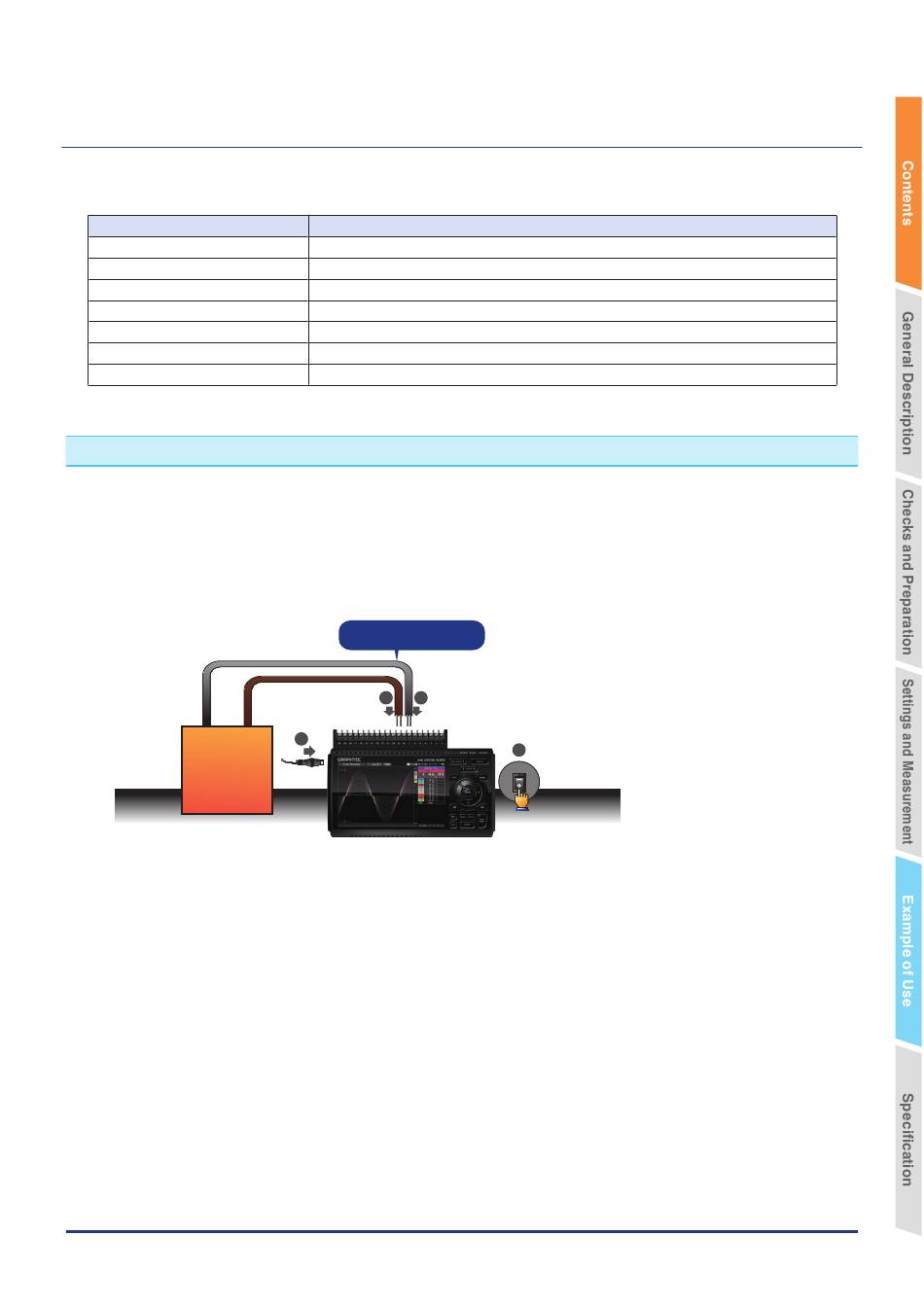

Voltage and temperature measurement of a target object
2 points
T-type thermocouple, 100°C
1V
1 second
Internal memory (MEM)
This is not used.
Connect securely!
2 1
3
4-2
