Connecting the Signal Input Cables
This section describes how to connect the signal input cables.
CAUTION
During wiring, confirm that the signal's supply source is turned OFF to prevent electrical shocks.
Also, position the GL860 input cable away from any power lines and ground cables.
Terminal Configuration and Signal Types (Standard 20CH screw terminal: B-563)
CH20
+
-

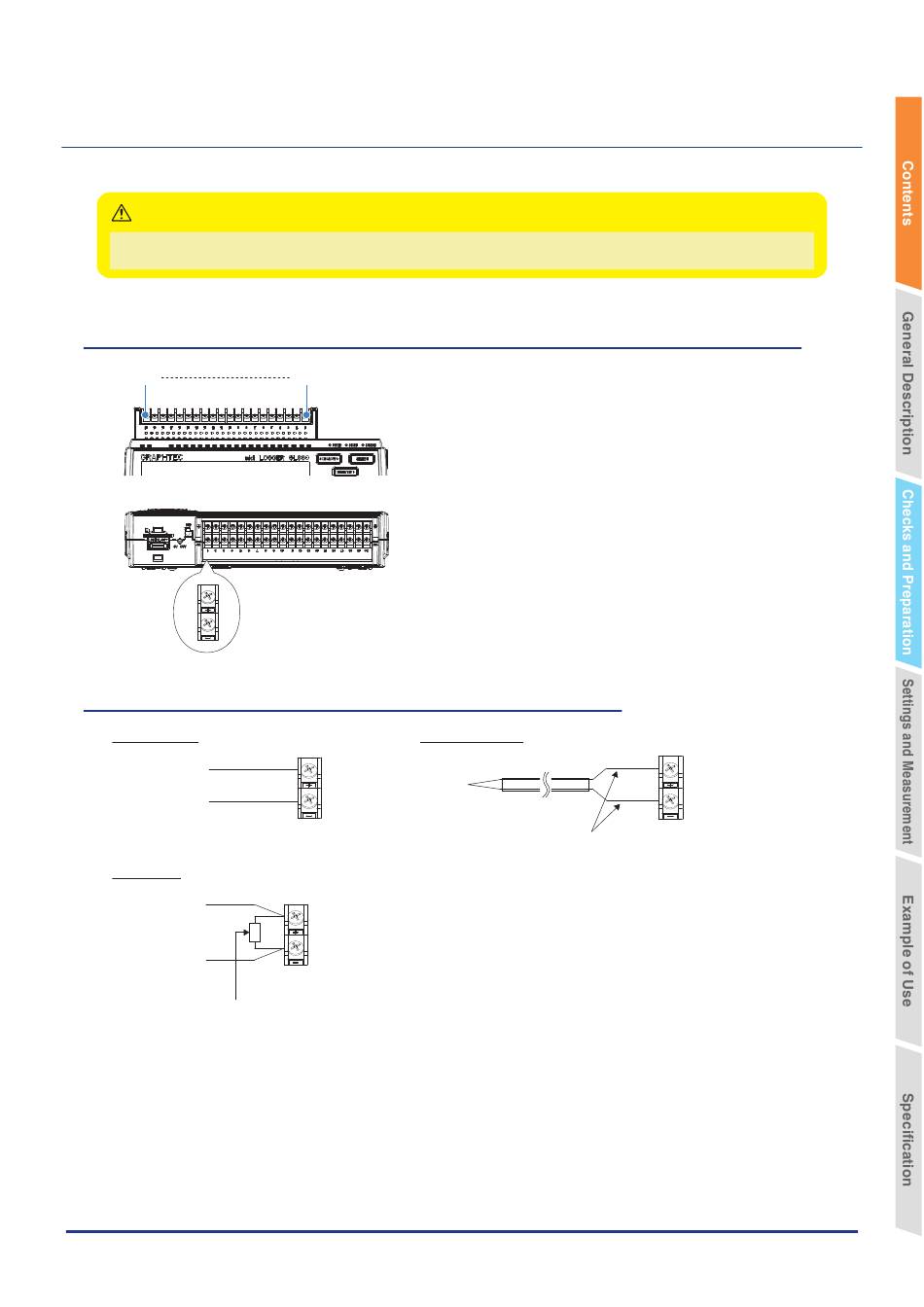

Connection diagram (Standard 20CH screw terminal: B-563)
DC voltage input
+
Voltage input
-
Current input
+
-
Shunt resistor
* Use B-551 (option) for the shunt resistor.
+ ...................High-voltage terminal (terminal for high-voltage input signals)
– ...................Low-voltage terminal (terminal for low-voltage input signals)
CH1
Ex: The current is converted to the voltage in the shunt resistor.
For 4 to 20mA current input, installing 250 ohms (0.1%) resistor for converting 1 to 5V.
CHAPTER 2 Checks and Preparation
Thermocouple input
Compensation copper wire
