Nomenclature and Functions

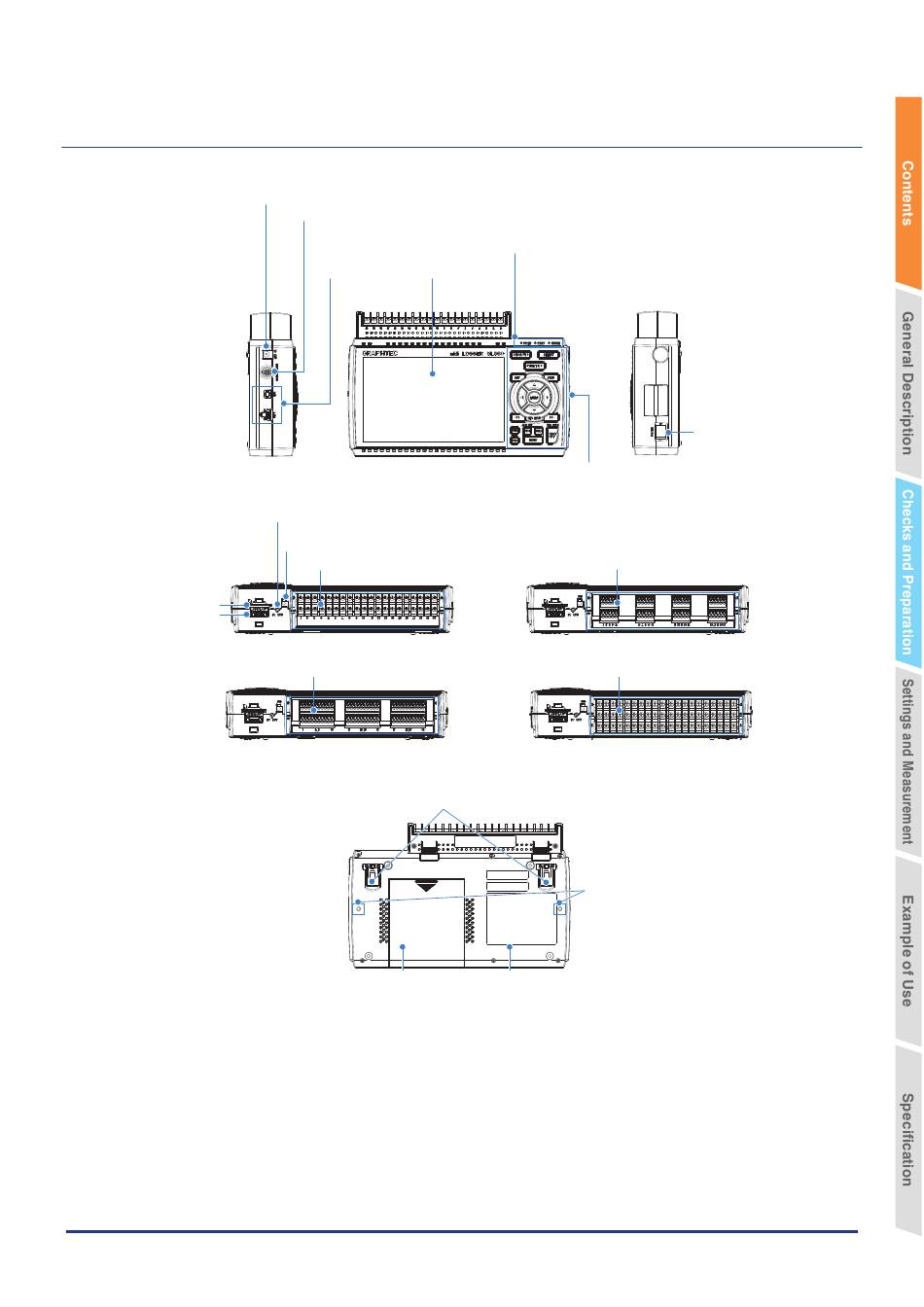

This section describes the names and functions of parts of the GL860.
SD CARD
Wireless LAN
connection terminal
AC adapter jack
External input/output terminals
• LOGIC/PULSE
• EXT TRIG/SAMPLE
• ALARM
PC interface
terminals
Monitor
・USB
・LAN
Power jack for humidity sensor
Humidity sensor (Option: when using the B-530)
GND terminal
Analog signal input terminals
Standard 20CH screw terminal (B-563)
Analog signal input terminals
Standard 30CH screwless terminal (B-563SL-30)
Tilt foot
Battery cover
Battery pack
  (B-573/B-569: Option)
CHAPTER 2 Checks and Preparation
Operation status LED
• POWER: ON when the power is ON
Blinking while accessing the memory
• START: ON during data capture
• CHARGE: ON while the battery is charging
Control panel keys
Analog signal input terminals
Analog signal input terminals
Fixing screw
Label
2-11
Power switch
Standard 20CH screwless terminal (B-563SL)
Withstand high-voltage high-precision terminal
(B-565)
