Relay Capture Function
Files are separated by the set file size or capturing time unit and captured continuously without missing any data.
(The capacity for one file is 10MB to 2GB, and the capturing time is 1 hour to 24 hours.)
When the memory loop is set to Off
Start capturing data
Captured data is saved into the File 1.
File1
When the memory loop is set to On
When switching the relay file, if the remaining capacity of the capturing destination becomes less than the size of the 3
files set, the oldest files in the capturing folder are deleted.
In the example below, the capacity is set to capture 8 files. Therefore, when capturing to the 6th file, the 1st file is
deleted.

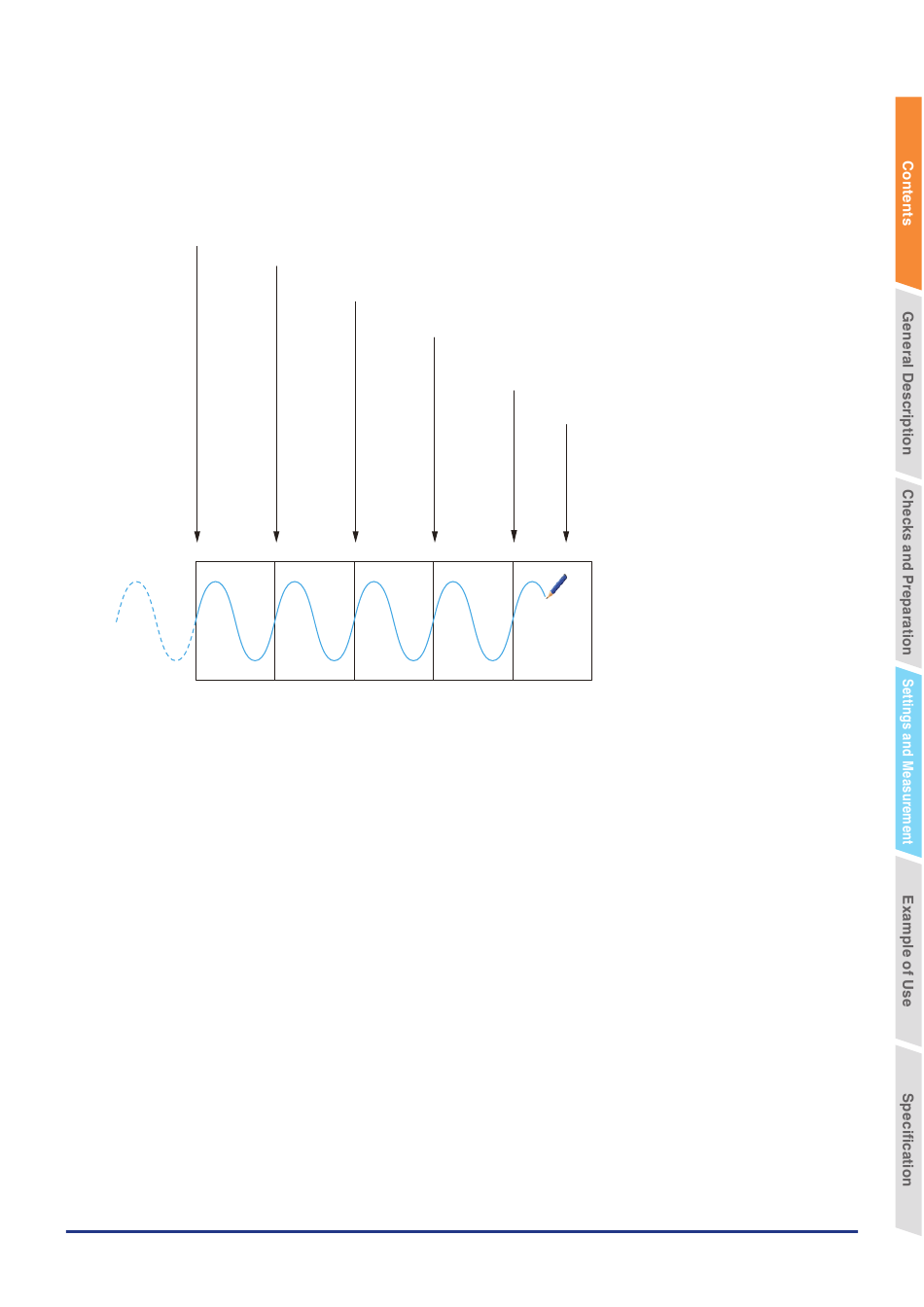

Data is captured to File 2 when capturing up to the time or capacity set in "Relay mode time".
Data is captured in File 3 when the capturing reaches the time set in "Relay mode time".
Data is captured in File 4 when the capturing reaches the time set in "Relay mode time".
File2 File3 File4
3-47
Chapter 3 Settings and Measurement
Data is captured in File 5 when the capturing reaches the time set in
"Relay mode time".
Stop data capturing
(* Capturing also stops when the remaining capacity
of the capturing destination runs out.)
File5
