Chapter 2 — Installation

Media Supply Roll Post

Media Supply Positions

10 EasyCoder PF2i Bar Code Label Printer User's Guide (Fingerprint Version)

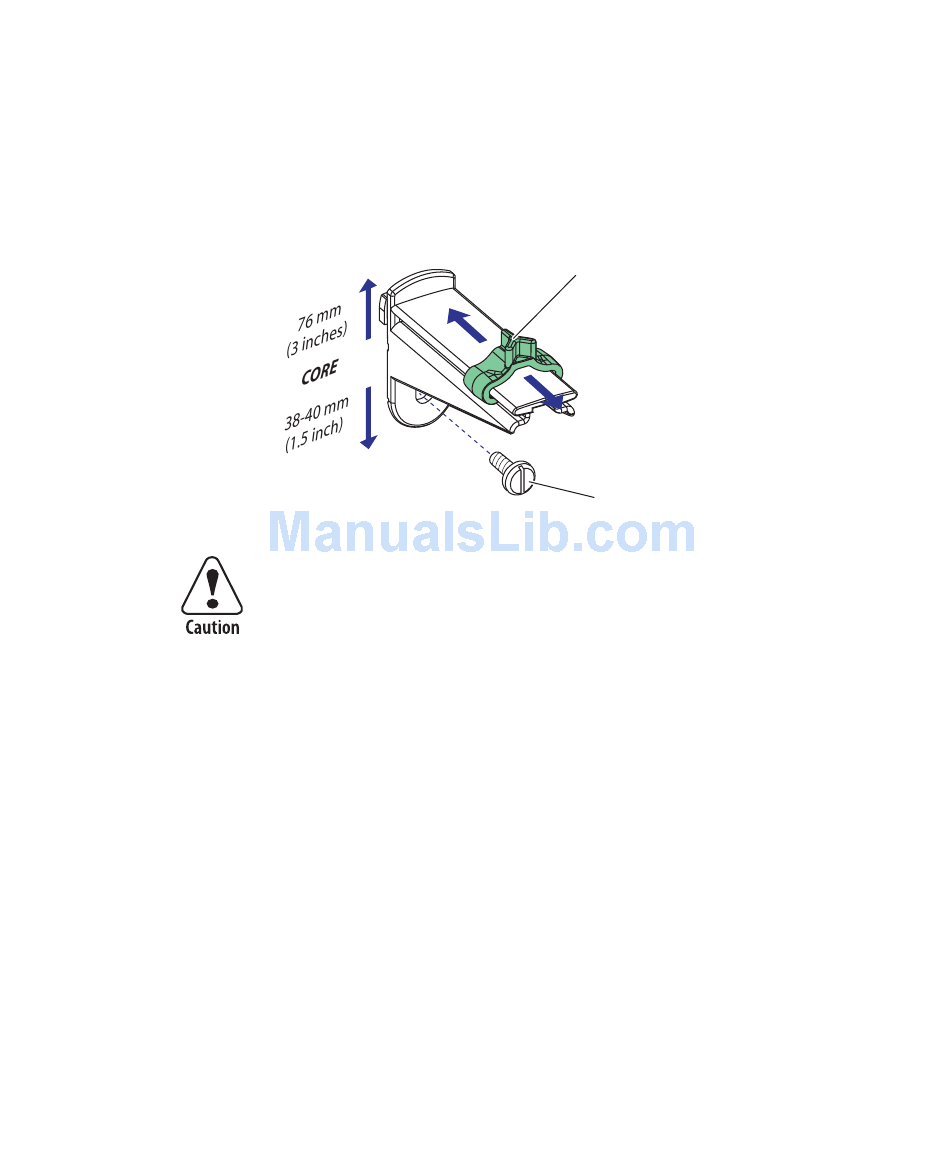

The media supply roll post fits both 38-40 mm (1.5 inches) and
76 mm (3.0 inches) cores since it can be moved vertically in the
slot in the center section. The bottom position is intended for
small cores and the top position is for large cores. The post is
locked by a straight-slot screw and has a moveable edge guide to
fit various media widths.
Make sure to adjust the position of the post according to the
size of the media roll core. When the post is fitted in the top
position, the head of the screw will interfere with small (38
mm/1.5 inches) cores, causing media misalignment.
To move the post to a different slot; remove the screw, twist the
post a quarter of a turn, and pull it out.
To fit the post; rotate it a quarter of a turn, insert it into the
appropriate slot in the center section (see next page), and twist
back so the lips engage the cutouts in the sides of the slot. Move
it up (large core) or down (small core) as far as it goes and secure
it with the screw.
There are four sets of threaded holes and slots in the printer's
center section for the media supply roll post or rotating hub
(optional). These slots allow the largest possible roll size to fit,
given the limitations of any liner takeup and/or the full enclosure
provided by the long side door. The positions are indicated by
numbers engraved in the center section.
Edge guide
Screw
