PC Assembly and Installation
1, 2, 3...
Caution
!

2-4-2 DIN Track Installation

1, 2, 3...
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

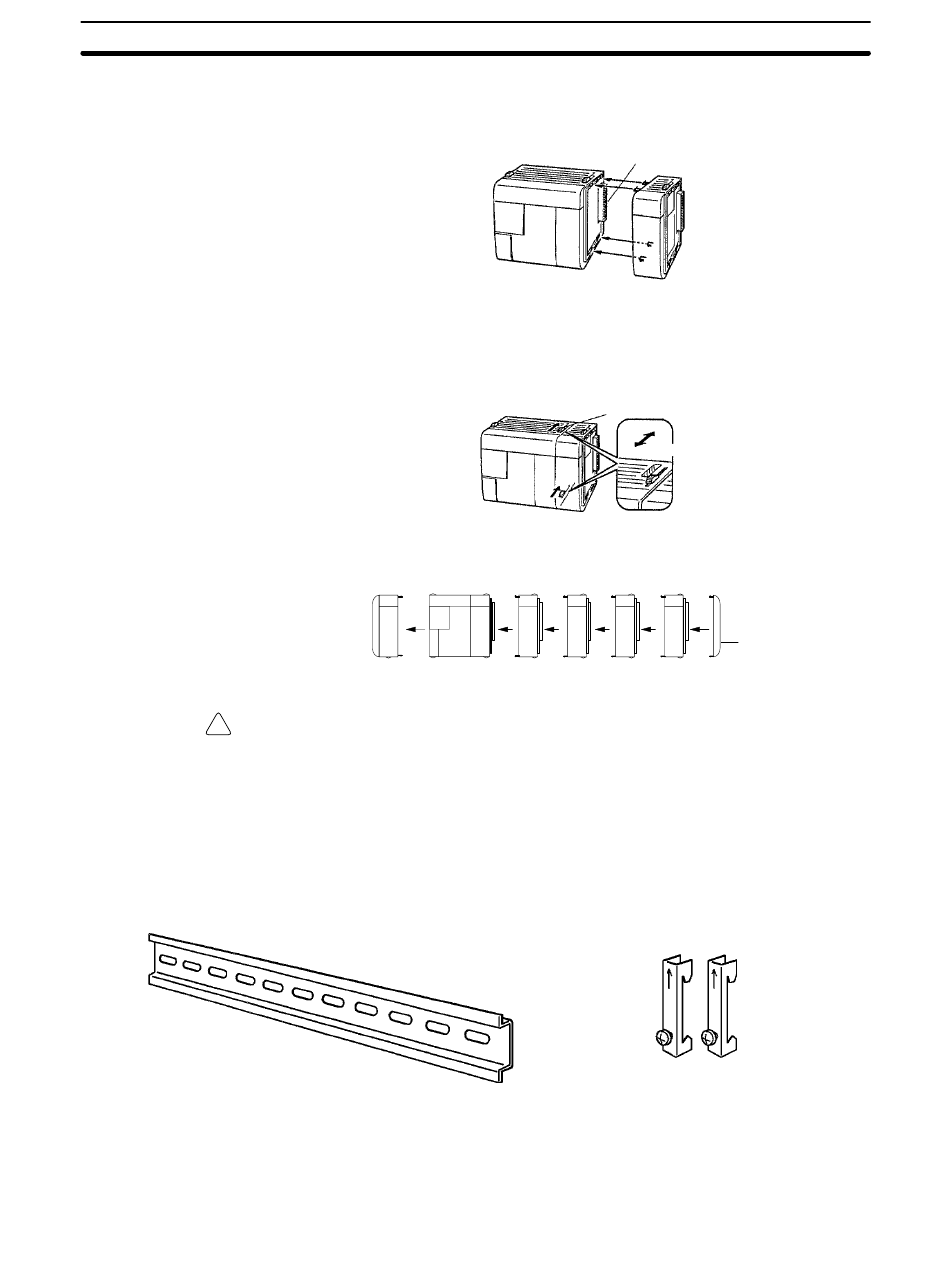

1. The following diagram shows the connection of two Units that make up a
CQM1 PC. Join the Units so that the connectors fit exactly.
2. The yellow locking tabs at the top and bottom of each Unit lock the Units
together. Slide these locking tabs towards the back of the Units as shown
below.
3. Attach the End Cover to the Unit on the far right side of the PC.
Be sure to attach the End Cover to the Unit on the far right side of the PC. The PC
will not operate properly if the End Cover is not connected.
A CQM1 PC must be installed on DIN Track and secured with the DIN Track
Brackets shown below.
DIN Track
(PFP-50N or PFP-100N)
Use the following procedure to install a CQM1 PC on DIN Track.
1. Mount the DIN Track securely to the control board or inside the control panel
using screws in at least 3 separate locations.
Connector
Slider
Lock
Release
End Cover
DIN Track Brackets (PFP-M)
Section 2-4
23
