I/O Units
! Caution

2-3-3 Connector Type

2-3-4 CQM1-OC224 Dimensions

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

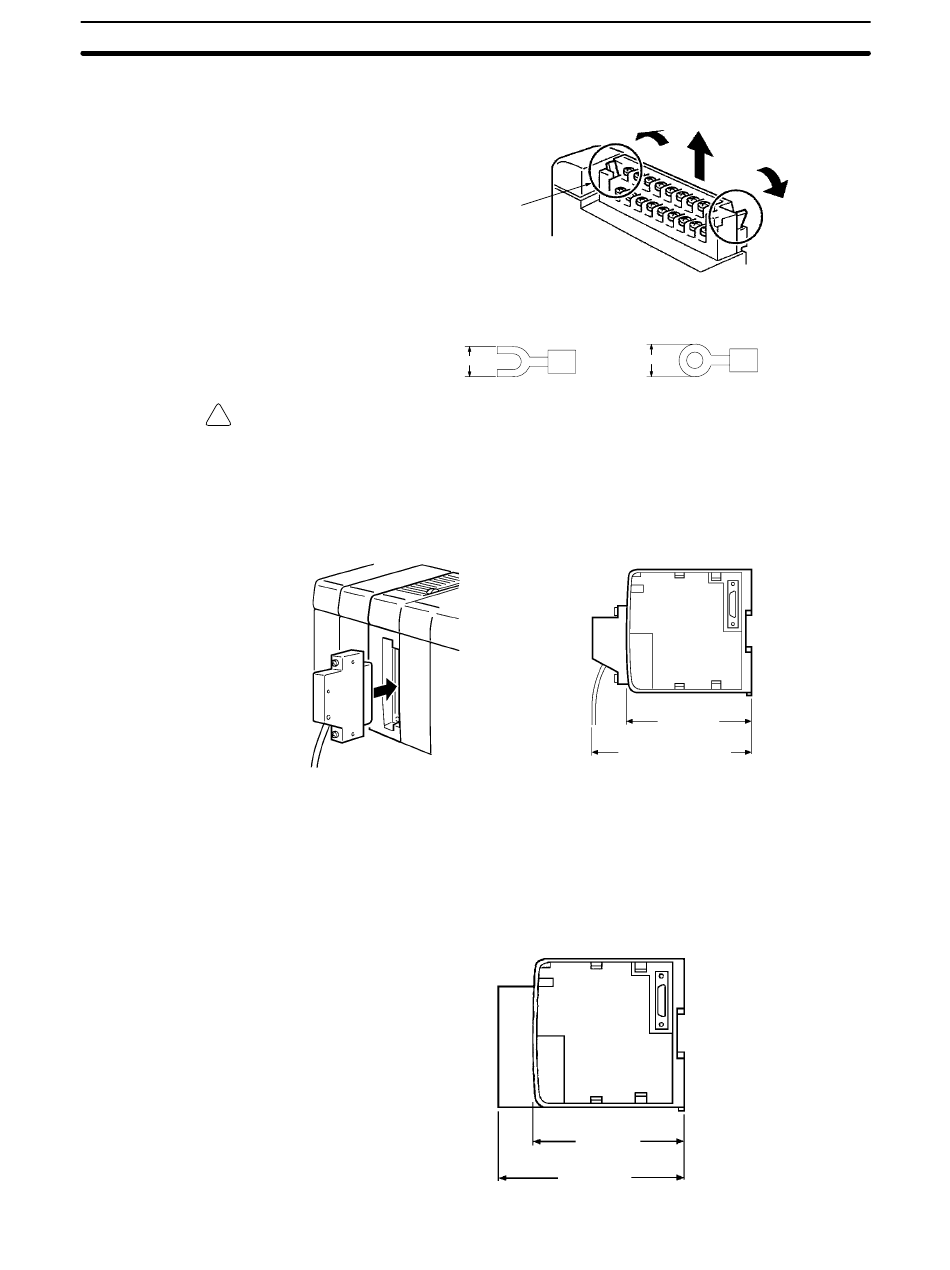

To remove the terminal block, push the connector tabs to the sides and lift the
terminal block off of the connector, as shown in the following diagram.
Open this tab as widely
as necessary.
Crimp connectors for I/O Unit wiring should be less than 6.2 mm wide (M3), and
the wire should be AWG22 to 18 (0.3 to 1.75 mm
6.2 mm max.
Forked crimp connectors are required by UL and CSA standards.
Connect the cable to the I/O Unit connectors.
Connector Position
The following diagram shows the dimensions of a CQM1-OC224 I/O Unit. All
dimensions are in millimeters.
6.2 mm max.
Dimensions when Mounted
107 mm
Approx. 140 mm*
*Approximately 120 mm when
pressure-welded connectors are used.
Dimensions when Mounted
107 mm
131.7 mm
Section 2-3
2)
.
21
