CPU Unit
Caution
!

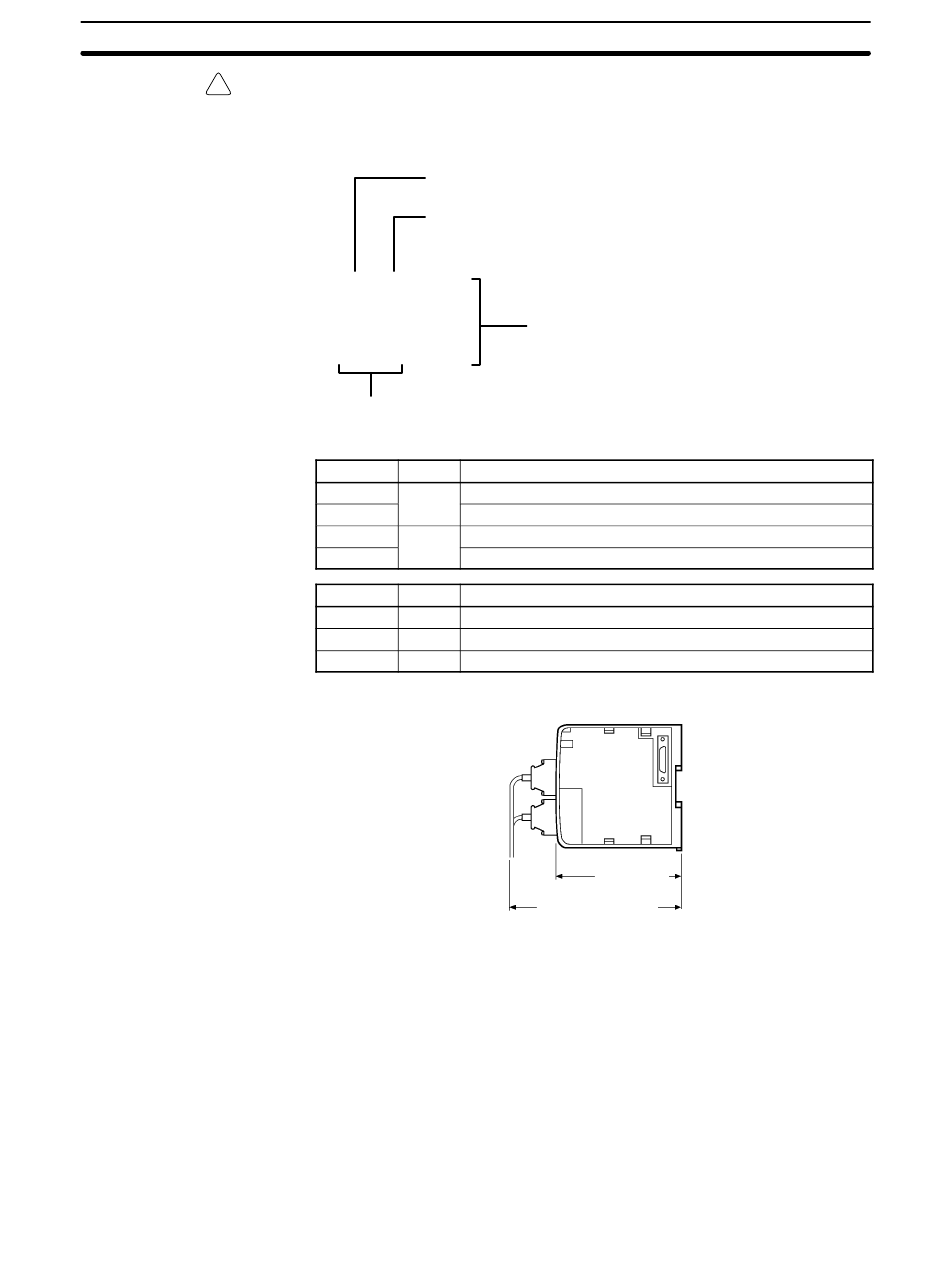

LED Indicators
Pulse Output Indicators
Pulse Input Indicators
Dimensions With Connectors Mounted
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
The following instructions cannot be used when the CQM1-CPU43-EV1 is set to
high-speed counter mode by PC Setup (DM 6611): PLS2 and ACC mode 0.
Ready (green)
Lit when the pulse I/O function is ready.
Error (red)
Lit when there is an error in the PC Setup for the pulse I/O func-
tion, or when operation is interrupted during pulse output.
RDY ERR CW1
A1 A2 CCW1
B1 B2 CW2
Z1 Z2 CCW2
Pulse input (orange)
Refer to the table below.
Indicator Port
Port 1
CW1 Lit during pulse output to port 1 CW.
CCW1 Lit during pulse output to port 1 CCW.
CW2 Port 2 Lit during pulse output to port 2 CW.
CCW2 Lit during pulse output to port 2 CCW.
Port 1 Port 2
A1 A2 Lit when pulse input is ON at phase A for each port.
B1 B2 Lit when pulse input is ON at phase B for each port.
Z1 Z2 Lit when pulse input is ON at phase Z for each port.
Pulse output (orange)
Refer to the table below.
Function
Function
107 mm
Approx. 180 mm
