Wiring and Connections
Wiring and Assembly
2-5-8 Peripheral Port Connection
Host Computer Connection
Personal computer
CQM1-CIF02
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

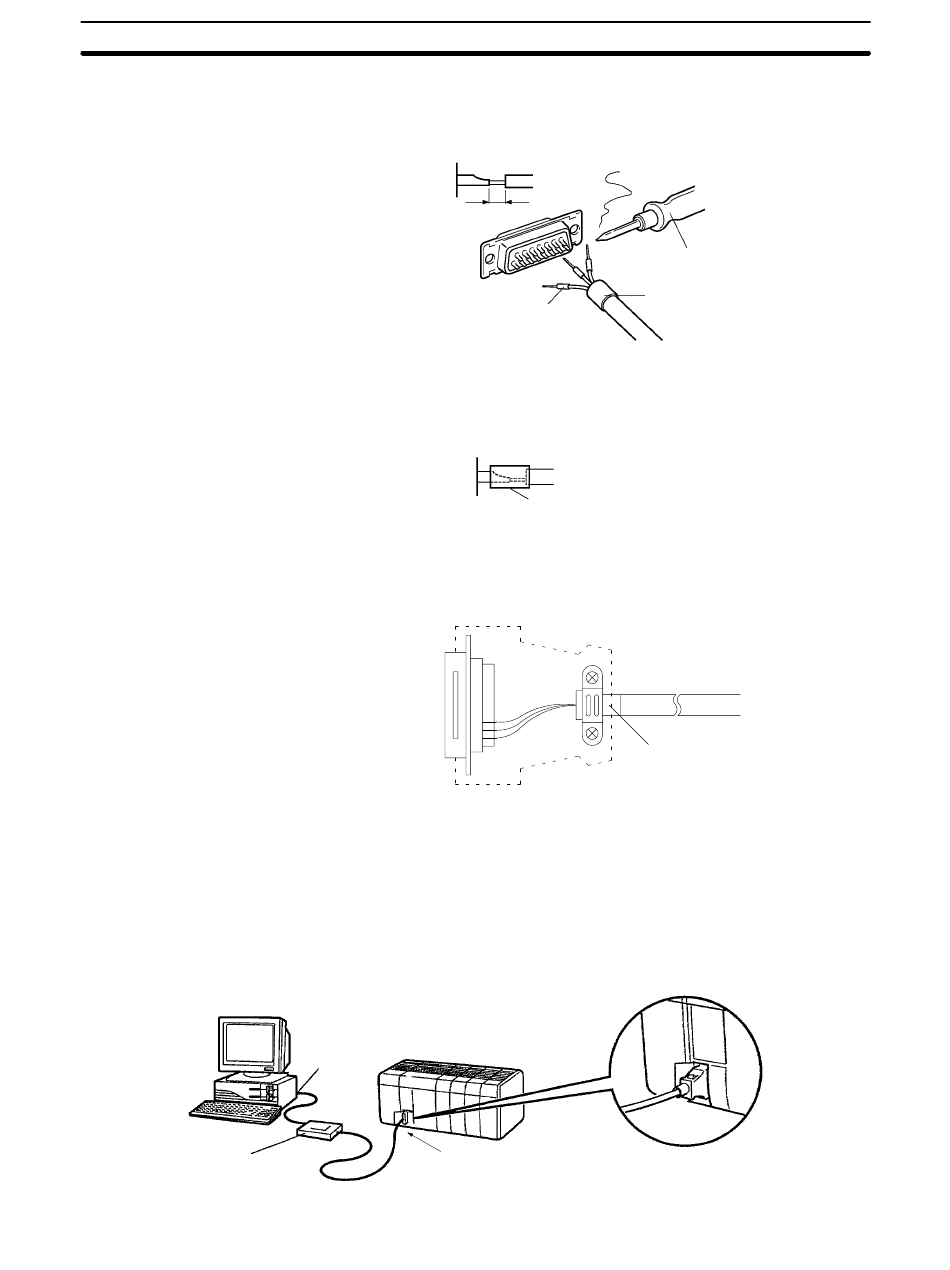

The following illustrations show the procedure for wiring and assembly of the
connectors. First pass the signal wires through heat-contraction tubes and sol-
der them to the socket pins.
1 mm
Heat-contraction tube
Inner diameter: 1.5 mm, l = 10
After soldering all of the necessary pins, slide the heat-contraction tubes over
the soldered areas of the respective wires. Then shrink the tubes by heating
them with a jet of hot air.
Assemble the socket and hood as shown in the illustration below. At the connec-
tor on the CQM1 side, wrap aluminum tape around the twisted wire as shown in
the illustration, and secure the wire to the hood.
End connected to FG
The CQM1 CPU Unit can be connected to an IBM PC/AT compatible computer
running LSS/SSS with a CQM1-CIF02 Connecting Cable, as shown in the fol-
lowing diagram. The RS-232C port can also be used, but the user must provide
the RS-232C cable.
COM1
RS-232C
connector
Peripheral port
Soldering iron
Fold back the shield.
Heat-contraction tube
Aluminum foil tape
Section 2-5
35
