Omron SYSMAC CQM1-ID212 Operation Manual page 41

Wiring and Connections
I/O Line Noise
Inductive Loads
1, 2, 3...
! Caution
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

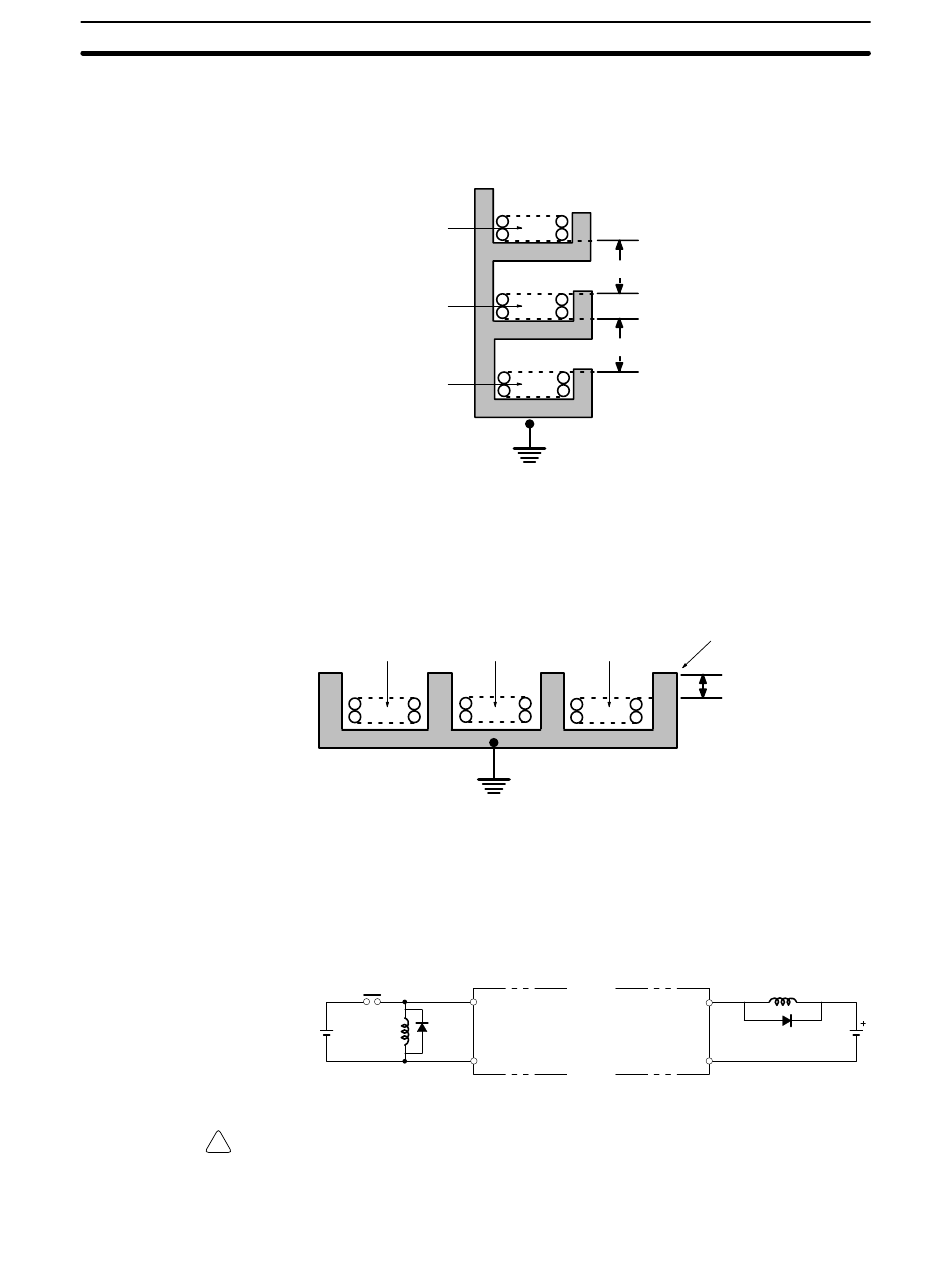

Do not run CQM1 I/O lines in the same duct or conduit as multi-conductor cables
of other control lines. If power cables carry more than 10 A at 400 V or more than
20 A at 220 V, they must be run parallel to I/O wiring. Leave at least 300 mm
between the power cables and the I/O wiring, as shown in the following diagram.
Low current cables
Control cables and
CQM1 power lines
Power cables
If the I/O wiring and power cables must be placed in the same duct (for example,
where they are connected to the equipment), shield them from each other using
grounded metal plates. In addition, use shielded cables for the I/O signal lines to
improve noise immunity. Also, connect the shielded cables to the GR terminal of
the PC.
Control cables and
Low current cables CQM1 power lines
When connecting an inductive load to an I/O Unit, connect a diode in parallel with
the load. The diode should satisfy the following requirements:
1. Peak reverse-breakdown voltage must be at least 3 times the load voltage.
2. Average rectified current must be 1 A.
Inputs
IN
Diode
DC input
COM
Do not apply a voltage exceeding the maximum permissible input voltage of the
Input Unit or the maximum switching capacity of the Output Unit, otherwise the
Units may be damaged, a malfunction may occur, or a fire may result.
300 mm min.
300 mm min.
Grounding at resistance
of 100 W max.
Power cables
Grounding at resistance
of100 W max.
Outputs
Contact output
Transistor output
Section 2-5
Metal plate (iron)
200 mm min.
OUT
Diode
COM
29
