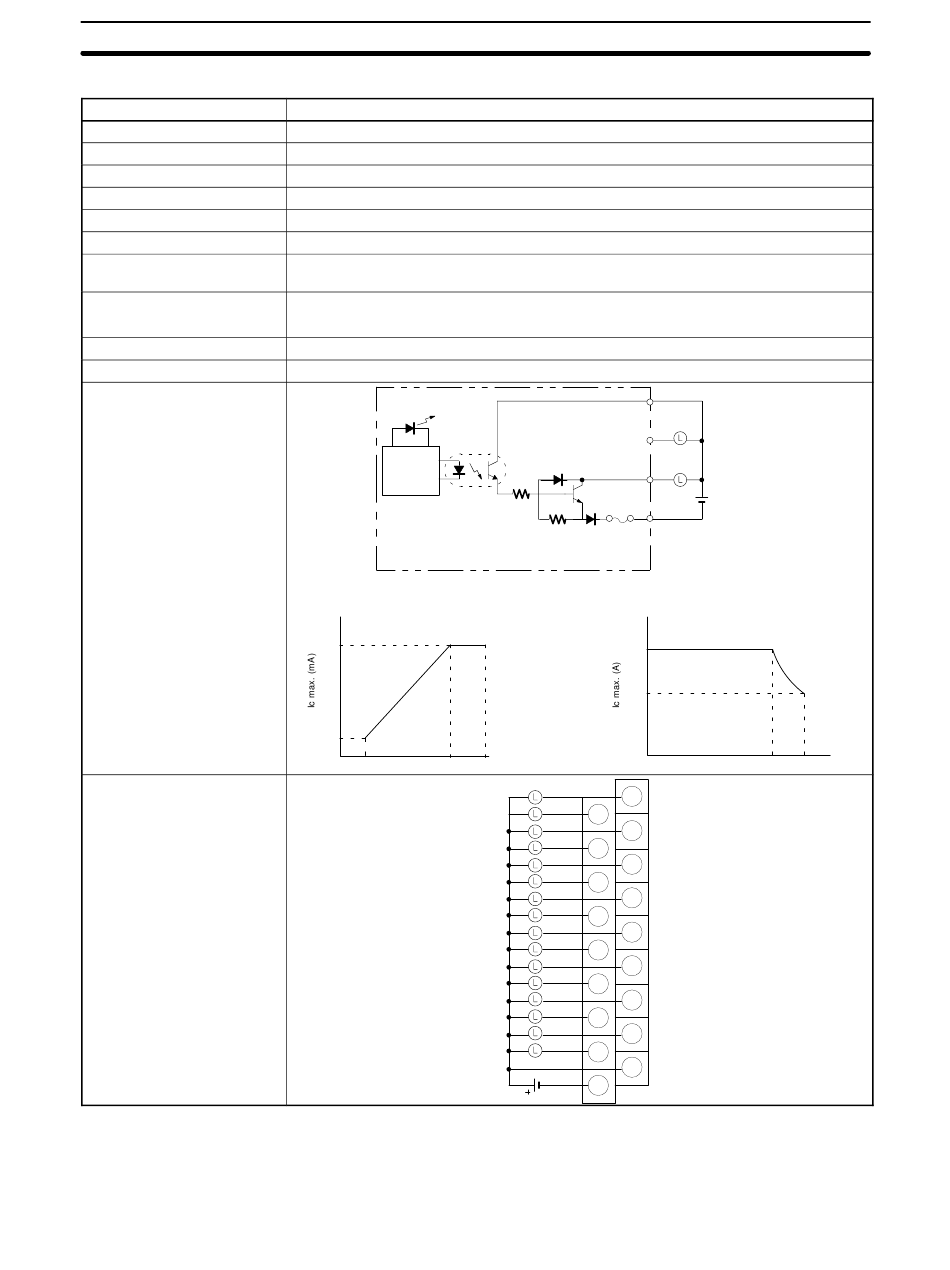

Unit Specifications
16-point Transistor Output Unit
Item
Max. Switching Capacity
Leakage Current
Residual Voltage
ON Delay
OFF Delay
No. of Outputs
Internal Current
Consumption
Fuse
Service Power Supply
Weight
Circuit Configuration
Terminal Connections
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
50 mA at 4.5 VDC to 300 mA at 26.4 V (see diagram below)
0.1 mA max.
0.8 V max.
0.1 ms max.
0.4 ms max.
16 points (16 points/common, 1 circuit)
170 mA max. at 5 VDC
5 A (one per common), one only
Fuse is not user replaceable.
40 mA min. at 5 to 24 VDC ±10% (2.5 mA  number of ON points)
180 grams max.
Output
LED
Internal
Circuits
Max. Switch Capacity (per Point)
300
50
4.5 20.4
CQM1-OD212
Fuse
5 A
Max. Switch Capacity (Total for Unit)
5.0
4.8
3.0
2.8
26.4 +V (V) 0
0
B0
1
A0
2
B1
3
A1
4
B2
5
A2
6
B3
7
A3
8
B4
9
A4
10
B5
11
A5
12
B6
13
A6
14
B7
15
A7
+DC
B8
COM
A8
–
Section 2-6
+V
OUT0
to
OUT15
4.5
COM to
26.4
VDC
45 55 (_C)
61
