Unit Specifications
Item

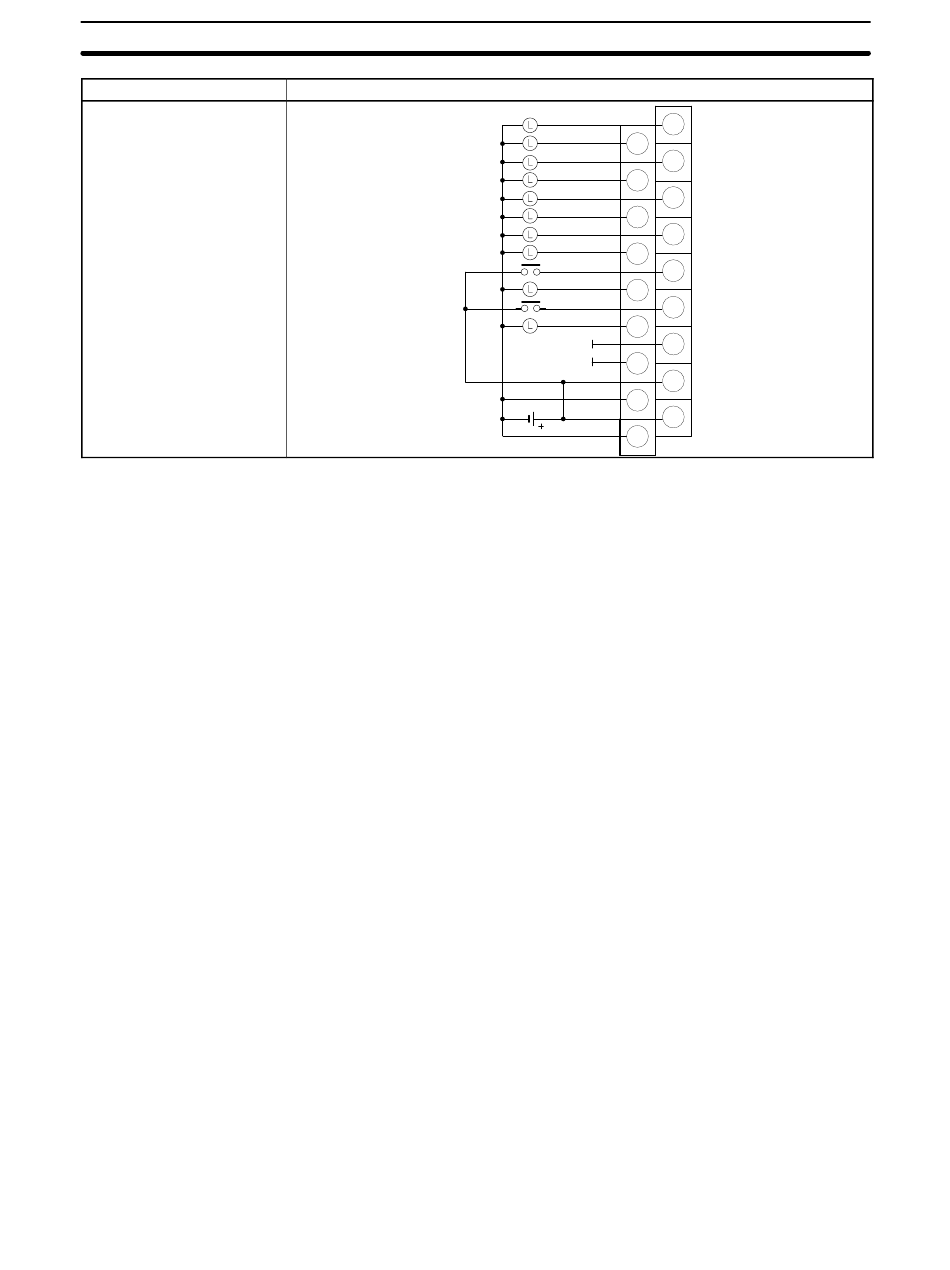

Terminal Connections
66
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Note If the output current of any output exceeds the detection current, the outputs will
be turned OFF at the four points (OUT0 to 3 or OUT4 to 7) which include that
output. At the same time, the alarm output (ALM0 or ALM 1) will turn ON and the
alarm indicator will light.
If an alarm output turns ON, first eliminate the problem that caused the detection
current to be exceeded. Then turn from ON to OFF the reset input (RST0 or
RST1) on the side where the alarm output turned ON. The alarm output indicator
will then turn off, the alarm output will return to OFF, and the contact's output will
be restored.
CQM1-OD215
0
B0
1
A0
2
B1
3
A1
4
B2
5
A2
6
B3
7
A3
RST0
B4
ALM0
A4
RST1
B5
ALM1
A5
NC
B6
NC
A6
COM
B7
0 V
A7
COM
B8
–
0 V
A8
Section 2-6
