Dosimag IO-Link
System pressure
Vibrations
Magnetism and static
electricity
Design, dimensions
Weight
Materials
Endress+Hauser
→  19
→  19

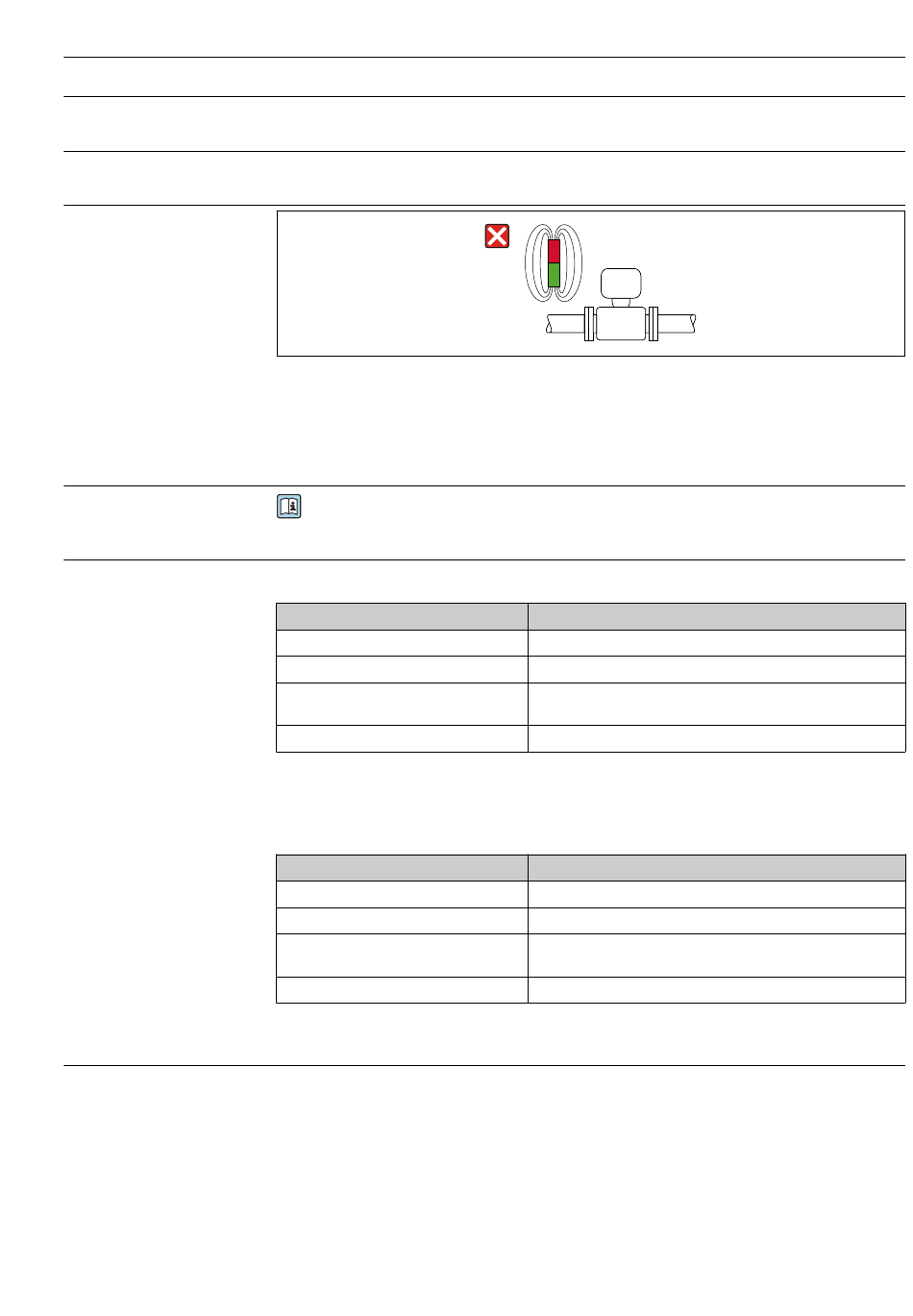

 7 Avoid magnetic fields

16.10 Mechanical construction

For the dimensions and installation lengths of the device, see the "Technical
Information" document, "Mechanical construction" section
Weight in SI units
DN [mm]
4
8
1)
15K
15
25
1) Conical version (corresponds to DN 12)
Weight in US units
DN [in]
⁵⁄₃₂
⁵⁄₁₆
1)
½K
½
1
1) Conical version (corresponds to DN 12)
Measuring instrument housing
• Acid and alkali-resistant outer surface
• Stainless steel, 1.4404 (316/316L)
Technical data
Weight [kg]
1.8
1.8
1.8
2.3
Weight [lbs]
4.0
4.0
4.0
5.1
A0042152
